StarTech USB to Serial Adapter Hub - 8 Port - Industrial - Wall Mount - Din Rail - COM Port Retention - FTDI USB to RS232 (ICUSB2328I) StarTech USB to Serial Adapter Hub - 8 Port - Industrial - Wall Mount - Din Rail - COM Port Retention - FTDI USB to RS232 (ICUSB2328I)

International Customers: All electronic products are packaged for sale in the US with US voltage.

End of Life Manual Availability: Yes

WEEE Statement: RoHS Declaration URL: Contents: USB to RS-232 Serial Adapter 1 x DIN Rail Kit 1 x 6 ft USB A to B Cable 1 x Driver CD 1 x Instruction Manual

Environmental Certification: EU RoHS

TAA Compliant: Yes

Additional Information: OS Compatibility: Windows® CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10, 11 Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019, 2022 macOS 10.6 to 10.15, 11.0, 12.0, 13.0 Linux Kernel 3.0.x and up - LTS Versions only

Environmentally Friendly: Yes

REACH Declaration URL: free of SVHC: Yes

Environmental Compliance:

Restriction of Hazardous Substances (RoHS) 2
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Waste Electrical and Electronic Equipment Directive (WEEE)

Country of Origin: Taiwan

Product Description

This item is brand-new, factory sealed.

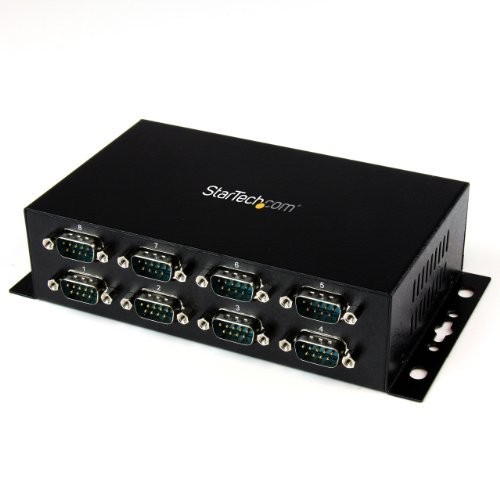

The ICUSB2328I Industrial 8-Port USB to Serial Hub with DIN Rail Clips converts a single USB port into eight RS232 serial ports, enabling you to connect to, monitor and control your serial devices.

Featuring rugged metal construction, with sturdy wall-mounting brackets and top-hat DIN Rail clips (included), this 8 port USB to RS232 Serial Hub provides versatile mounting options and a robust solution for both harsh industrial environments and simple desktop installations.

This USB powered adapter also retains assigned serial COM port values once connected, allowing the same values to be automatically reassigned to the USB serial hub ports. Hardware
Ports:8
Bus Type:USB 2.0
Port Style:External Hub
Chipset ID:FTDI FT2232H

Connector(s)
External Ports:
1 - USB B (4 pin) Female
8 - DB-9 (9 pin D-Sub) Male Performance
Max Baud Rate:921.6 Kbps
Maximum Data Transfer Rate:921.6 Kbps
Serial Protocol:RS-232
Data Bits:7, 8
FIFO:4096 byte Transmit and Receive
Parity:Odd, Even, Mark, Space, None
Stop Bits:1, 2 Software
OS Compatibility:
Windows 8 (32/63bit), 7 (32/64), Vista(32/64), XP(32/64), 2000, CE
Windows Server 2008 R2, 2003(32/64), 2000
Mac OS 10.x
Linux 2.4.x/ 2.6.x Enclosure Type
Steel

Color
Black

Indicators
LED Indicators:8 - Each, Tx/Rx Activity indicators Power
Power Adapter Included:USB Powered

Included in Package
1 - USB to RS-232 Serial Adapter
1 - DIN rail kit
1 - 6 ft USB A to B cable
1 - Driver CD
1 - Instruction Manual Item Dimension (L"xW"xH"):
11.61 x 7.48 x 2.56

Weight:
1.92 lb

Warranty Information:
2 Years SpecificationPhysical CharacteristicsForm FactorWall MountableWeight (Approximate)1.22 Warranty2 YearInterfaces/PortsNumber of USB Ports1Number of Serial Ports (External)8General InformationBrand Name
