& StandardsFormatWall MountableStandardsIEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T
IEEE 802.3z 1000Base-SX/LX
IEEE 802.3az Energy-Efficient Ethernet, IEEE 802.3x Flow Control, IEEE 802.1q VLAN Tagging, IEEE 802.1p QoS, IEEE 802.1x Port-Based Network Access Control, IEEE802.3ad Link Aggregation, IEEE 802.1d Spanning Tree Protocol, IEEE 802.1w Rapid Spanning Tree ProtocolNetwork Management TypeManagedPorts & InterfacePrimary Ports8 x RJ45 + 2 x SFPPrimary Port Speed10/100/1000MbpsData TransmissionSwitching MethodStore and ForwardJumbo Frames9000 bytesDetailsBuffer Active (yellow)
Link / Activity (green)
2-100 Mbps Link / Activity (yellow)
1000 Mbps Link / Activity (green)PowerInput Current: 1A minimum
Input Voltage: 12~48 DC
Plug Type: M

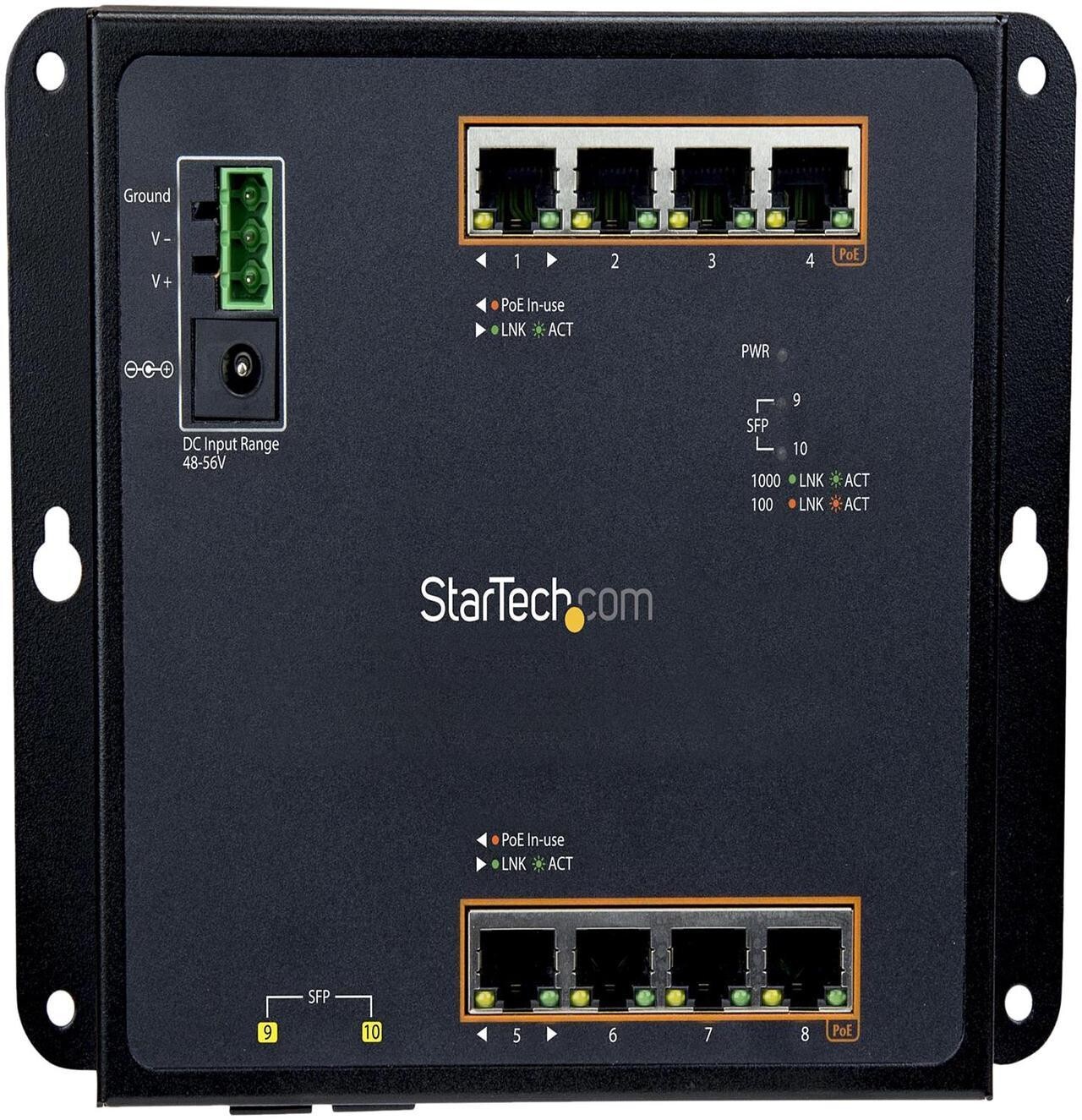

Power Source: Terminal BlockFeaturesFeaturesExpand your network with 8 x RJ45 (PoE+) ports + 2 x fiber SFP slots in one Gigabit network switchPoE power up to 30W per PoE port (200W budget)Rugged IP30 industrial design with metal housing and extended temperature range (-40 degree to +75 degree C)Front access provides easy access to ports and indicatorsCompact wall-mount or DIN-rail mount design (with magnetic mounts)Layer 2 management for improved network control, efficiency, and stabilityCompatible with 10/100/1000 Mbps networksDual power input (terminal block / DC plug)IPv4 and IPv6 dual stack managementIGMP and MLD supportSupport for link aggregation, VLAN tagging, spanning tree protocol, port-based network access controlDimensions & WeightDimensions0.98" x 5.83" x 5.28"Weight1.09 lbs.EnvironmentalTemperatureOperating Temperature: -40 ~ 75 degree Celsius (-40 ~ 167 degree Fahrenheit)
Storage Temperature: -40 ~ 90 degree Celsius (-40 ~ 194 degree Fahrenheit)Humidity5~95% RH (Non-Condensing)PackagingPackage Contents1 x network switch
1 x terminal block connector
4 x screw anchors
4 x screws
4 x attaching pins
4 x locking pins
4 x washers
4 x magnets
1 x DIN rail
3 x DINxrail screws
8 x RJ45 dust caps
2 x SFP dust caps
1 x quick-start guide
