Increase productivity with multiple screens

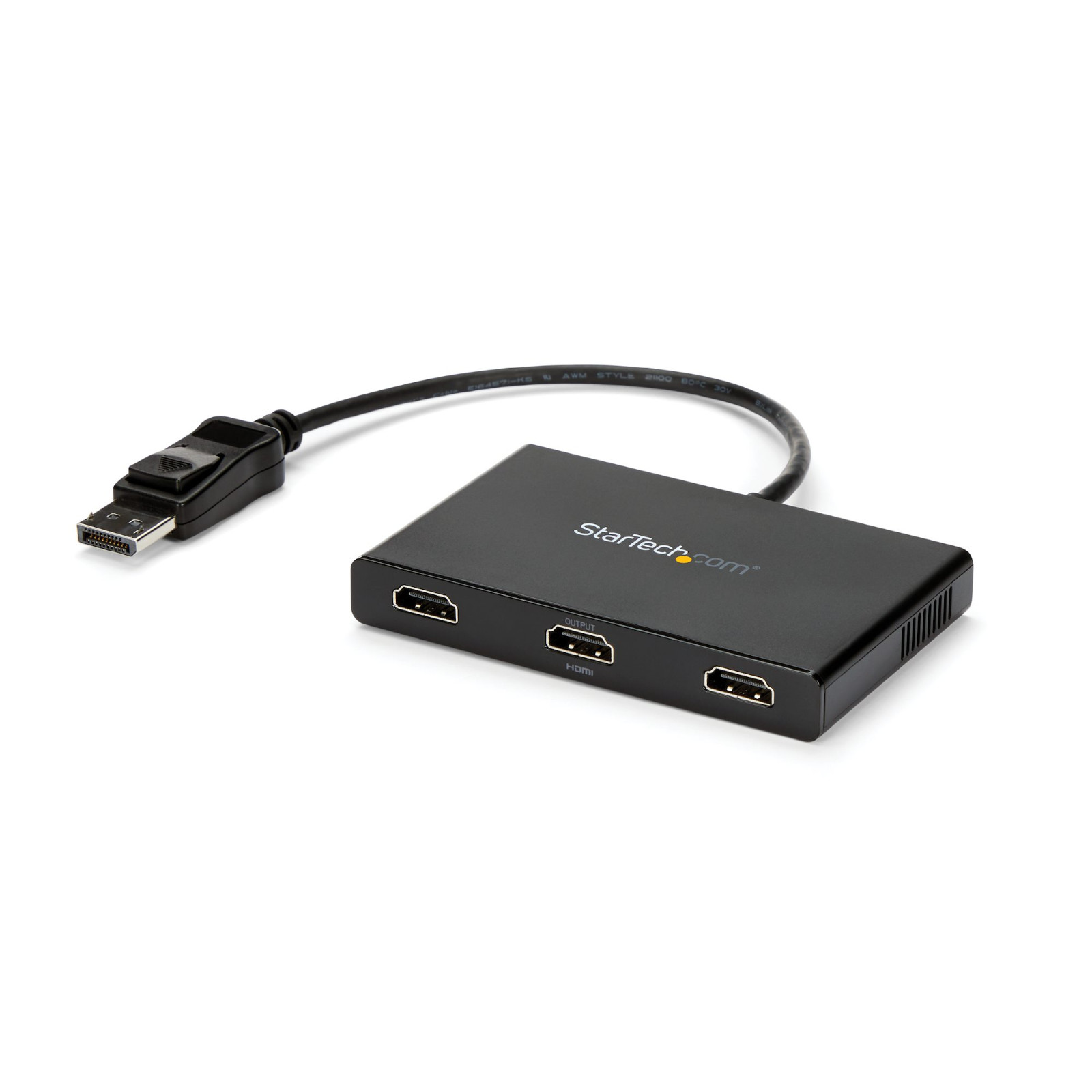

The newest generations of computers are more portable than ever, which often means that you’re left with fewer video outputs and smaller integrated screens. ThisMST hubsolves both of these problems by letting you connect three additional displays to your computer, which makes multitasking much easier.

Configure your displays for any environment

Using the MST hub, you can extend your desktop onto additional monitors and stream independent content to each display. You can also mirror the same image onto multiple HDMI televisions or projectorsfor remote viewing applications such as digital signage.

Enjoy amazing video qualitywithout draining system resources

MST technology uses your existing video card to minimize the use of system resources while delivering Ultra HD 4K resolutions. This unprecedented performance makes MST perfect for high-resolution applications such as graphic design, gaming and medical imaging.

Note: When using a DisplayPort 1.1 video card the MSTDP123HDwill act as splitter, automatically mirroring your video source across all displays. Resolution limitations apply.

The MSTDP123HDsupports plug-and-play installation for a hassle-free setup, and is backed by a StarTech.com 3-year warranty and free lifetime technical support.

Note: MST shares 21.6Gbps across all attached displays. Higher resolutions can restrict the available bandwidth with the remaining ports, please see our guideline below for determining an ideal resolution for your setup.Certain graphics adapters have limited MST support and will only output to three displays in total. If more than three monitors are attached the fourth will be disabled. Some monitors limit available resolution

Average Resolution Bandwidth Allocation

1920x1080 (High-definition 1080p) @60hz - 22%
1920x1200 @60hz - 30%
2560x1440 @60hz - 35%
2560x1600 @60hz - 38%
3840 x 2160 (Ultra HD 4K) @30hz - 43%

Note: Exceeding 100% will reduce functionality.

Examples of Supported Resolution Configurations

Screen 1 ResolutionScreen 2 ResolutionScreen 3 ResolutionTotal % of Bandwidth1920x1200 @60hz (30%)1920x1200 @60hz (30%)1920x1200 @60hz (30%)90%2560x1440 @60hz (35%)2560x1440 @60hz (35%)1920x1200 @60hz (30%)92%2560x1600 @60hz (38%)2560x1600 @60hz (38%)1920x1080 @60hz (22%)98%3840x2160 @30hz (43%)1920x1200 @60hz (30%)1920x1080 @60hz (22%)95%3840x2160 @30hz (43%)3840x2160 @30hz (43%)None86%

Examples of Unsupported Resolution Configurations

Screen 1 ResolutionScreen 2 ResolutionScreen 3 ResolutionTotal % of Bandwidth2560x1600 @60hz (38%)2560x1600 @60hz (38%)1920x1200 @60hz (30%)106%3840x2160 @30hz (43%)2560x1600 @60hz (43%)1920x1200 @60hz (30%)116%3840x2160 @30hz (43%)2560x1600 @60hz (43%)2560x1440 @60hz (35%)121%3840x2160 @30hz (43%)3840x2160 @30hz (43%)3840x2160 @30hz (38%)124%Applications

• Use one screen for reference data such as websites, while composing in another screen
• Dock your DP 1.2 device and add three high-resolution displays at your workstation
• Create a panoramic video wall for HDMI digital signage applications using your DisplayPort computer

• Edit images, video or audio clips across three displays in any orientation or resolution
• Perfect for spanning a spreadsheet or worksheet across three displays, to avoid side-scrolling
• Enjoy the panoramic views built into games and display helpful codes and walk-through data on a third display, at the same time

Partner NumbersTech Data11861612A.B. Distributing, Micro USA3A0078SYNNEX class="Paragraph SCXW28431994 BCX0" role="heading" aria-level="3" xml:lang="EN-US" lang="EN-US" paraid="814589722" style="margin: 0px; padding: 0px; user-select: text; -webkit-user-drag: none; -webkit-tap-highlight-color: transparent; overflow-wrap: break-word; white-space: pre-wrap; vertical-align: baseline; font-kerning: none; background-color: transparent; color: rgb(31, 55, 99);">Compatibility

Windows 11, 10, 8.1, 8

Specifications

Warranty Information

Warranty

3 Years

Connector(s)

Connector A

1 - DisplayPort (20 pin)

Connector B

3 - HDMI (19 pin)

Environmental

Operating Temperature

0°C to 45°C (32°F to 113°F)

Storage Temperature

-20°C to 70°C (-4°F to 158°F)

Humidity

50-90%

Hardware

Active or Passive Adapter

Active

AV Input

DisplayPort - 1.2

Ports

3

AV Output

HDMI - 1.4

Audio

Yes

Chipset ID

MegaChips - STDP4320

Packaging Information

Package Height

2,5 in [64,0 mm]

Package Length

6,1 in [15,4 cm]

Shipping (Package) Weight

17,6 oz [500,0 g]

Package Width

9,5 in [24,1 cm]

Performance

Audio Specifications

HDMI - 7.1 Channel Audio

Maximum Cable Distance To Display

49,9 ft [15,2 m]

Maximum Digital Resolutions

3840 x 2160 @30hz

Supported Resolutions

Note: MST shares 21.6 Gbps across all attached displays. Higher resolutions can restrict the available bandwidth with the remaining ports, please see our guideline below for determining an ideal resolution for your setup.

Average resolution bandwidth allocation

1920x1080 (High-definition 1080p) @60hz - 22%
1920x1200 @60hz - 30%
2560x1440 @60hz - 35%
2560x1600 @60hz - 38%
3840 x 2160 (Ultra HD 4K) @30hz - 38%

Note: Exceeding 100% will reduce functionality.

Wide Screen Supported

Yes

Physical Characteristics

Weight of Product

4,5 oz [127,0 g]

Color

Black

Material

Plastic

Cable Length

7,5 in [19 cm]

Product Length

13,0 in [33,0 cm]

Product Width

4,1 in [105,0 mm]

Product Height

0,6 in [1,4 cm]

Power

Power Source

AC Adapter Included

Input Voltage

100 - 240 AC

Input Current

0.5 A

Output Voltage

5 DC

Output Current

3A

Center Tip Polarity

Positive

Plug Type

N

Power Consumption (In Watts)

15

Software

OS Compatibility

Windows 11, 10, 8.1, 8

What's in the Box

Included in Package

1 - DisplayPort to 3x HDMI MST Hub

1 - Universal power adapter (NA/EU/UK/AU)

1 - Quick install guide
