StarTech 2 Port PCI RS422/485 Serial Adapter Card with 161050 UART - 2 x 9-pin DB-9 Male RS-422/485 Serial Universal PCI StarTech 2 Port PCI RS422/485 Serial Adapter Card with 161050 UART - 2 x 9-pin DB-9 Male RS-422/485 Serial Universal PCI
International Customers: All electronic products are packaged for sale in the US with US voltage.
Package Contents: 2 Port PCI RS422/485 Serial Adapter Card with 161050 UART Standard and Low Profile/half-height Brackets Driver CD
TAA Compliant: Yes
Environmentally Friendly: Yes
Country of Origin: Taiwan
Product Description
This item is brand-new, factory sealed.

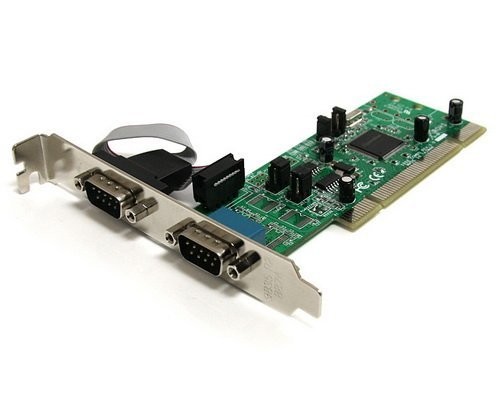

The PCI2S4851050 2-Port PCI Serial Adapter Card (RS422/RS485) with 161050 UART adds two DB9 RS422/RS485 serial ports, using a single PCI expansion slot.
The PCI serial card offers a high performance 16C1050 UART and supports both 2-wire and 4-wire RS485 modes. The card delivers an efficient single-chip design and a large 256-byte transit/receive FIFO buffer that work together to provide high-speed serial communication while reducing the overall load on the system CPU.
With the included standard and low profile/half-height brackets, this PCI serial expansion card suits a broad range of system form factors, and is a perfect addition for connecting RS422/485 serial devices to a host computer. For added versatility, the RS422/RS485 adapter is able to accommodate 3.3 or 5V PCI/PCI-X slots.
Backed by a lifetime warranty and free lifetime technical support.
Package Contents:
- 2 Port PCI RS422/485 Serial Adapter Card with 161050 UART
- Standard and Low Profile/half-height Brackets
SpecificationPhysical CharacteristicsForm FactorPlug-in CardWeight (Approximate)2 ozCard WarrantyLifetimeInterfaces/PortsNumber of Serial Ports (External)2General InformationBrand Name
