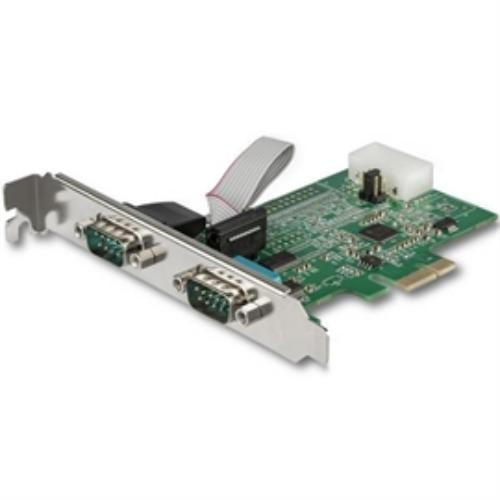

StarTech 2-port PCI Express RS232 Serial Adapter Card - PCIe Serial DB9 Controller Card 16950 UART - Low Profile - Windows and Linux (229986) StarTech 2-port PCI Express RS232 Serial Adapter Card - PCIe Serial DB9 Controller Card 16950 UART - Low Profile - Windows and Linux (229986)

International Customers: All electronic products are packaged for sale in the US with US voltage.

End of Life Manual Availability: Yes

WEEE Statement: RoHS Declaration URL: Contents: 2-Port RS232 Serial Adapter Card with 16950 UART 1 x Full-Profile Bracket 1 x User Manual

Environmental Certification: EU RoHS

TAA Compliant: Yes

Environmentally Friendly: Yes

REACH Declaration URL: free of SVHC: Yes

Environmental Compliance:

Restriction of Hazardous Substances (RoHS) 2
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Waste Electrical and Electronic Equipment Directive (WEEE)

Country of Origin: Taiwan

Product Description

This item is brand-new, factory sealed.

This RS232 Serial Adapter Card lets you add an RS232 DB9 serial port to your computer through a PCI Express (PCIe) slot. It enables you to interact with serial devices such as card readers, printers, PIN pads, and modems, at speeds of up-to 921.4Kbps.

Maximum Compatibility

With broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments. The card comes pre-configured with a low-profile bracket, and includes an optional full-profile bracket, so installation is easy regardless of the case form factor.

Experience Optimal Technology

This PCIe to serial adapter supports the following features:

Compatible with industry standard 16950 UART

Supports max baud rate of up-to 921.4Kbps

Provides 5/12V power output on Pin 9 when external power is connected

128-byte depth FIFO per transmitter and receiver

Supports 9, 8, 7, 6, 5 data bits

Asix AX99100 chipset

PCI Express 1.1 compliant

PEX2S953LP is backed by a lifetime warranty and free lifetime technical support. HARDWARE
Bus Type
PCI Express
Card Type
Low Profile (SP bracket incl.)
Chipset ID
Asix AX99100
Interface
Serial
Port Style
Integrated on Card
Ports
2
PERFORMANCE
Data Bits
5, 6, 7, 8, 9
FIFO
256 Bytes
Flow Control
None, Xon/Xoff, RTS/CTS
Max Baud Rate
921.6 Kbps
Parity
None, Odd, Even, Space, Mark
Serial Protocol
RS-232
Stop Bits
1, 1.5, 2
CONNECTOR(S)
Connector Type(s)
1 - PCI Express x1 Male
External Ports
2 - DB-9 (9 pin, D-Sub) Male
Internal Ports
1 - LP4 (4 pin Large Drive Power) Male Input
SOFTWARE
Microsoft WHQL Certified
Yes
OS Compatibility
Windows 7, 8, 8.1, 10
Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016
Linux 2.4.x to 2.6.x LTS Versions only
SPECIAL NOTES / REQUIREMENTS
Note
Selectable power output on pin 9 of the serial port
ENVIRONMENTAL
Humidity
5 to 85% RH
Operating Temperature
-10oC to 80oC (14oF to 176oF)
Storage Temperature
-20oC to 100oC (-4oF to 212oF)
WHATS IN THE BOX
Included in Package
1 - PCIe Serial Card
1 - Full-Profile Bracket
1 - User Manual
Item Dimension ( L inchxW inchxH inch)
7 x 6 x 2Weight
1 lbWarranty Information
Lifetime WarrantPackage Contents:

• 2-Port RS232 Serial Adapter Card with 16950 UART
• 1 x Full-Profile Bracket
• 1 x User Manual

SpecificationPhysical CharacteristicsForm FactorPlug-in CardWeight (Approximate)3.35 ozCard HeightLow-profileProduct ColorGreenHeight3.1"Color WarrantyLifetimeInterfaces/PortsNumber of Serial Ports (External)2General InformationBrand Name
