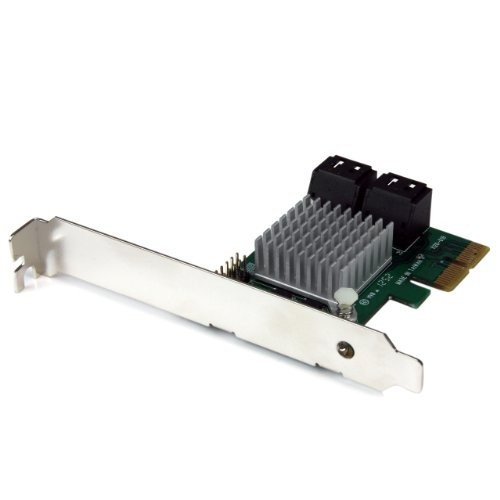

StarTech 4 Port PCI Express 2.0 SATA III 6Gbps RAID Controller Card with HyperDuo SSD Tiering (PEXSAT34RH) StarTech 4 Port PCI Express 2.0 SATA III 6Gbps RAID Controller Card with HyperDuo SSD Tiering (PEXSAT34RH)
International Customers: All electronic products are packaged for sale in the US with US voltage.
End of Life Manual Availability: Yes
Environmental Certification: EU RoHS
TAA Compliant: Yes
Environmentally Friendly: Yes
REACH Declaration URL: free of SVHC: Yes
Platform Supported:
Restriction of Hazardous Substances (RoHS) 2
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Waste Electrical and Electronic Equipment Directive (WEEE)
WEEE Statement: Contents: 4 Port PCI Express SATA III 6Gbps RAID Controller Card with Heatsink 1 x Low Profile Bracket 1 x Driver CD 1 x Instruction Manual
Additional Information: OS Compatibility: Windows® 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64) Windows Server® 2012, 2008 R2, 2003 Mac OS® 10.6 and later (tested up to 10.10) Linux
Compatibility: OS Compatibility: Windows® 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64) Windows Server® 2012, 2008 R2, 2003 Mac OS® 10.6 and later (tested up to 10.10) Linux
Country of Origin: Taiwan
Product Description
This item is brand-new, factory sealed.
The PEXSAT34RH 4-Port PCI Express 2.0 SATA Controller Card with HyperDuo adds 4 AHCI SATA III ports to a computer through a PCIe slot (x2), delivering multiple internal 6Gbps connections for high-performance hard drives and Solid State Drives (SSDs).Featuring HyperDuo technology, the SATA card offers SSD auto-tiering which lets you balance the performance advantages of SSD storage with the cost-effectiveness and large capacity of standard hard drives. By combining SSD and HDD drives into a single volume (up to 3 SSD + 1 HDD), HyperDuo discreetly works in the background to identify and move frequently accessed files to the faster SSD drive(s) for improved data throughput up to 80% of SSD performance (Note: The HyperDuo automatic storage tiering feature is compatible with Windows XP, Vista, 7 and 8 only)The PCIe SATA controller card supports Port Multiplier (PM), enabling multiple SATA drives to be connected to one port over a single cable, for a total of 7 drives (Up to 4 drives through PM on one port, and a single drive to the remaining 3 ports). Plus, the SATA controller card offers an effective hardware RAID solution, with native RAID (0, 1, 1+0) support. Hardware
Bus Type:PCI Express
Card Type:Standard Profile (LP bracket incl.)
Chipset ID:MarvellIndustry Standards:
PCI Express 2.0
Serial ATA 3.0 specification
Interface:SATA
Port Style:Integrated on Card
Ports:4 Connector(s)
Connector Type(s):1 - PCI Express x2 Male
Internal Ports:4 - SATA (7 pin Data) Plug Performance
Supported RAID Modes:
JBOD - (Just a Bunch of Disks)
RAID 1 (Mirrored Disks)
RAID 0 (Striped Disks)
RAID 10 (1+0 Striped set of Mirrored Subset)LBA support:48-bit
Max Drive Capacity:Currently tested up to 4TB per drive
Port Multiplier:Yes
RAID:Yes
Type and Rate:SATA III (6 Gbps) Software
OS Compatibility:
Windows XP (32/64-bit)/ Vista (32/64-bit)/ 7 (32/64-bit)/ 8 (32/64-bit)
Mac OS 10.6 /10.7 /10.8
Linux Special Notes / Requirements
System and Cable Requirements:Available PCI Express x2 slot (backward compatible with x4, x8, and x16 slots) Included in Package
1 - PCIe SATA Controller Card
1 - Low Profile Bracket
1 - Driver CD
1 - Instruction Manual Item Dimension (L"xW"xH"):
6.89 x 5.71 x 1.18 Weight:
0.32 lbWarranty Information:
2 Year Warranty SpecificationPhysical CharacteristicsForm FactorPlug-in CardWeight (Approximate)1.70 ozLength2.8"Card Warranty2 YearInterfaces/PortsNumber of SATA Ports (Internal)4Total Number of SATA Ports4General InformationBrand Name
