StarTech Industrial Gigabit PoE Injector - High Speed 90W 802.3bt PoE++ 48V-56VDC Ultra Power Over Ethernet/UPoE Injector -40C to +75C (248816) StarTech Industrial Gigabit PoE Injector - High Speed 90W 802.3bt PoE++ 48V-56VDC Ultra Power Over Ethernet/UPoE Injector -40C to +75C (248816)
International Customers: All electronic products are packaged for sale in the US with US voltage.
End of Life Manual Availability: Yes
WEEE Statement: RoHS Declaration URL: Contents: POEINJ1G90W PoE Injector Mounting Hardware Kit Quick-Start Guide Terminal Block
Certifications & Standards: IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3at IEEE 802.3af IEEE 802.3bt IEC 61000-4-2 IEC 61000-4-4 IEC 61000-4-5 EN60950-1 IP-30 EN 60068-2-6 EN 60068-2-27 EN 60068-2-32
Environmental Certification: EU RoHS
Environmentally Friendly: Yes
REACH Declaration URL: free of SVHC: Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS) 2
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin: Taiwan
Product Description
This item is brand-new, factory sealed.

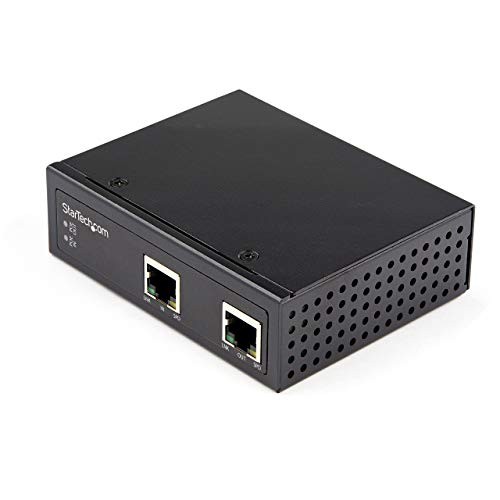

Industrial Gigabit PoE Injector - High Speed/High Power 90W - 802.3bt PoE++ 48V-56VDC DIN Rail UPoE/Ultra Power Over Ethernet Injector Adapter -40C to +75C Rugged (POEINJ1G90W)
- WIDE STANDARD COMPATIBILITY: High speed Industrial Gigabit PoE Injector compatible w/ IEEE 802.3bt (PoE++) & previous 90W proprietary POE standards including PoH (HDBase-T), Cisco uPoE, Bosch & AXIS
- 90W POWER BUDGET: Provides up to 90W of auto-negotiated power output for Type 3 and Type 4 PoE/Ultra/UPoE applications like tilt and pan cameras and high power IEEE 802.11ax wireless access points
- TECH SPECS: 1 Gbps | 48V-56VDC Power Input | IEEE 802.3af | IEEE 802.3at | IEEE 802.3bt 90W max | PoH (HDBase-T) | uPoE | 10/100/1000 Mbps Auto Negotiation | DIN/Wall Mountable | Redundant Power Input
- ROBUST DESIGN: Industrial Power over Ethernet Injector w/MTBF of 500,000+hrs @ 50C | Vibration, shock & free fall rated | Rugged IP-30 aluminum housing | Hardened operating temp of -40C to 75C
- STARTECH.COM ADVANTAGE: IT professionals' choice for over 30 years | This PoE Injector is backed for 2-years by , including free 24/5 North America based multi-lingual tech support
- Brand: StarTech
- Item Weight: 13.4 ounces
- Product Dimensions: 7.5 x 9 x 3 inches
- Item Dimensions LxWxH: 7.5 x 9 x 3 inches
- Voltage: 48 Volts
- Manufacturer: STARTECH.COM
This Gigabit Power over Ethernet (PoE+) injector supplies power and data connectivity to a Gigabit PoE-compliant device using a standard Ethernet cable.
Flexible Configurations for a Variety of Applications
Compatible with IEEE 802.3bt and most previous 90W proprietary PoE (Ethernet) standards, including PoH (HDBaseT), Cisco uPoE, Bosch, and AXIS. One product can cover multiple use requirements to improve standardization and deployment and dual power terminal block inputs provide redundancy for critical applications.
90 Watt Power Budget
As many typical PoE-enabled switches max out at 30W a high 90W power budget is perfect for demanding Type 3 and Type 4 PoE applications like tilt and pan cameras and high power IEEE 802.11ax wireless access points.
Designed for Harsh Environments
Industrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing.
- Vibration: EN 60068-2-6
- Shock: EN 60068-2-27
- Free-fall: EN 60068-2-32
500,000+ hours MTBF rating using Telcordia/Bellcore at 50C for long-term reliability.
The POEINJ1G90W is backed by a 2-year warranty and free lifetime technical support.
Package Contents:
- POEINJ1G90W PoE Injector
- Mounting Hardware Kit
- Quick-Start Guide
- Terminal Block
SpecificationPower DescriptionInput Voltage56 V DCPhysical CharacteristicsForm FactorDIN Rail/Wall MountableWeight (Approximate)6.14 ozLength3.2"Product ColorBlackHeight4.1"Color Warranty2 YearInterfaces/PortsOutput Ports1 x PoE+Input Ports1 x Gigabit EthernetGeneral InformationBrand Name
