StarTech Industrial Gigabit Ethernet PoE Injector 30W 802.3at PoE+ Midspan 48V-56VDC Power Over Ethernet Injector Adapter -40C to +75C (248814) StarTech Industrial Gigabit Ethernet PoE Injector 30W 802.3at PoE+ Midspan 48V-56VDC Power Over Ethernet Injector Adapter -40C to +75C (248814)
International Customers: All electronic products are packaged for sale in the US with US voltage.
Package Contents: POEINJ30W PoE Injector Mounting Hardware Kit Quick-Start Guide Terminal Block to Barrel Power Connector Adapter Terminal Block
Certifications & Standards: IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3af IEEE 802.3at IEC 61000-4-2 IEC 61000-4-4 IEC 61000-4-5 EN 60068-2-6 EN 60068-2-32 MET (UL) 60950-1 EN60950-1
Environmentally Friendly: Yes
Environmental Compliance:
Waste Electrical and Electronic Equipment Directive (WEEE)
Restriction of Hazardous Substances (RoHS)
Country of Origin: Taiwan
Product Description
This item is brand-new, factory sealed.

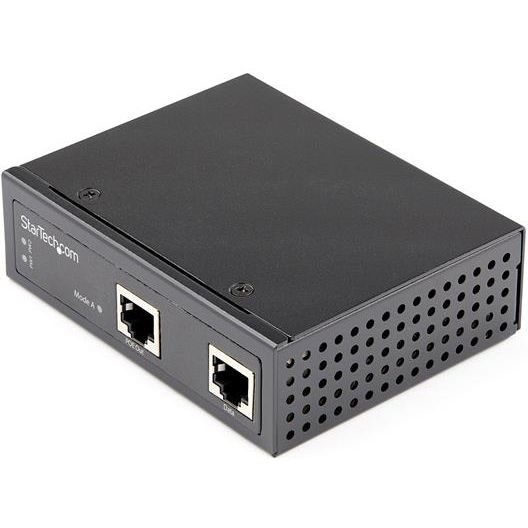

This Gigabit Power over Ethernet (PoE+) injector supplies power and data connectivity to a Gigabit PoE-compliant device using a standard Ethernet cable.
30 Watt Power Budget
Provides up to 30W of power (midspan) to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) powered devices (PD) like:
- Cameras
- Sensors
- Wi-fi access points
Uses Cat 5e (or higher rated) Ethernet cabling.
Designed for Harsh Environments
Industrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing.
- Vibration: EN 60068-2-6
- Shock: EN 60068-2-27
- Free-fall: EN 60068-2-32
600,000+ hours MTBF rating using Telcordia/Bellcore at 50C for long-term reliability.
Dual Power Inputs
Dual power inputs provide redundancy. Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation.
The POEINJ30W is backed by a 2-year warranty and free lifetime technical support.
Package Contents:
- POEINJ30W PoE Injector
- Mounting Hardware Kit
- Quick-Start Guide
- Terminal Block to Barrel Power Connector Adapter
- Terminal Block
SpecificationPower DescriptionInput Voltage56 V DCPhysical CharacteristicsForm FactorDIN Rail/Wall MountableProduct ColorBlackColor FamilyBlackWarrantyLimited Warranty2 YearInterfaces/PortsOutput Ports1 x PoE+Input Ports1 x Fast EthernetGeneral InformationBrand Name
