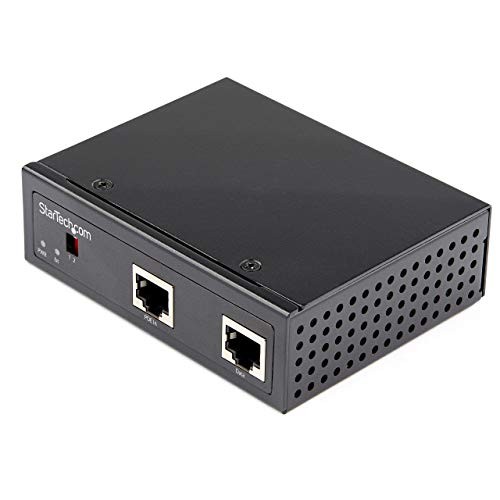

StarTech Industrial Gigabit PoE Splitter - 90W Power over Ethernet PoE++ Splitter - 12-48V DC Splitter 802.3bt Ultra PoE -40C to +75C (248813) StarTech Industrial Gigabit PoE Splitter - 90W Power over Ethernet PoE++ Splitter - 12-48V DC Splitter 802.3bt Ultra PoE -40C to +75C (248813)
International Customers: All electronic products are packaged for sale in the US with US voltage.
End of Life Manual Availability: Yes
WEEE Statement: RoHS Declaration URL: Contents: POESLT1G48V PoE Splitter Quick-Start Guide Hardware Mounting Kit Terminal Block
Certifications & Standards: IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3at IEEE 802.3af IEC 61000-4-2 IEC 61000-4-4 IEC 61000-4-5 EN 60068-2-6 EN 60068-2-27 EN 60068-2-32 EN60950-1
Environmental Certification: EU RoHS
Environmentally Friendly: Yes
REACH Declaration URL: free of SVHC: Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS) 2
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin: Taiwan
Product Description
This item is brand-new, factory sealed.
General InformationSplits a PoE connection (max 90W) into separate data (RJ45) and DC power (terminal block) that can power any device that uses DC power between 12V-48VDC (1.5A). Power non-PoE devices using network infrastructure, where power is not available. Power Non-PoE Devices Perfect for using PoE to power older devices while also providing network access for monitoring and control applications. Applications include: Security (card swipe or proximity boxes) Environmental monitoring (temperature/moisture sensors) Telco (analog interface systems/conversion) Straightforward Deployment Supports IEEE 802.3af (PoE / Type 1), IEEE 802.3at (PoE+ / Type 2), and IEEE 802.3bt (PoE++ / Type 3) PoE inputs up to 90W and splits data and power. Power output via terminal block can be configured for 12/16/24/48V DC (1.5A). The configuration is completed by DIP switches and the product can be wall or DIN rail mounted using the included hardware. Designed for Harsh Environments Industrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing. Vibration: EN 60068-2-6 Shock: EN 60068-2-27 Free-Fall: EN 60068-2-32 600,000+ hours MTBF rating using Telcordia/Bellcore at 50 C for long-term reliability. The POESLT1G48V is backed by a 2-year warranty and free lifetime technical support.Power DescriptionMinimum Output Voltage: 12 V DCMaximum Output Voltage: 48 V DCInterfaces/PortsInput Ports: 1 PoE+Output Ports: 1 EthernetOutput Ports: 1 Terminal BlockPhysical CharacteristicsForm Factor: DIN Rail/Wall MountableHeight: 1.3"Width: 3.2"Length: 4.1"Weight (Approximate): 5.29 ozShipping Height: 2.52"Shipping Width: 8.31"Shipping Depth: 6.38"MiscellaneousPackage Contents: POESLT1G48V PoE Splitter Quick-Start Guide Hardware Mounting Kit Terminal Block Certifications & Standards: IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3at IEEE 802.3af IEC 61000-4-2 IEC 61000-4-4 IEC 61000-4-5 EN 60068-2-6 EN 60068-2-27 EN 60068-2-32 EN60950-1 Environmentally Friendly: YesEnvironmental Certification: WEEEEnvironmental Certification: RoHSCountry of Origin: TaiwanWarrantyLimited Warranty: 2 Year
INDUSTRIAL GIGABIT POE SPLITTER SpecificationPower DescriptionMaximum Output Voltage48 V DCMinimum Output Voltage12 V DCPhysical CharacteristicsForm FactorDIN Rail/Wall MountableWeight (Approximate)5.29 Warranty2 YearInterfaces/PortsOutput Ports
- 1 x Ethernet
- 1 x Terminal Block
Input Ports1 x PoE+General InformationBrand Name
