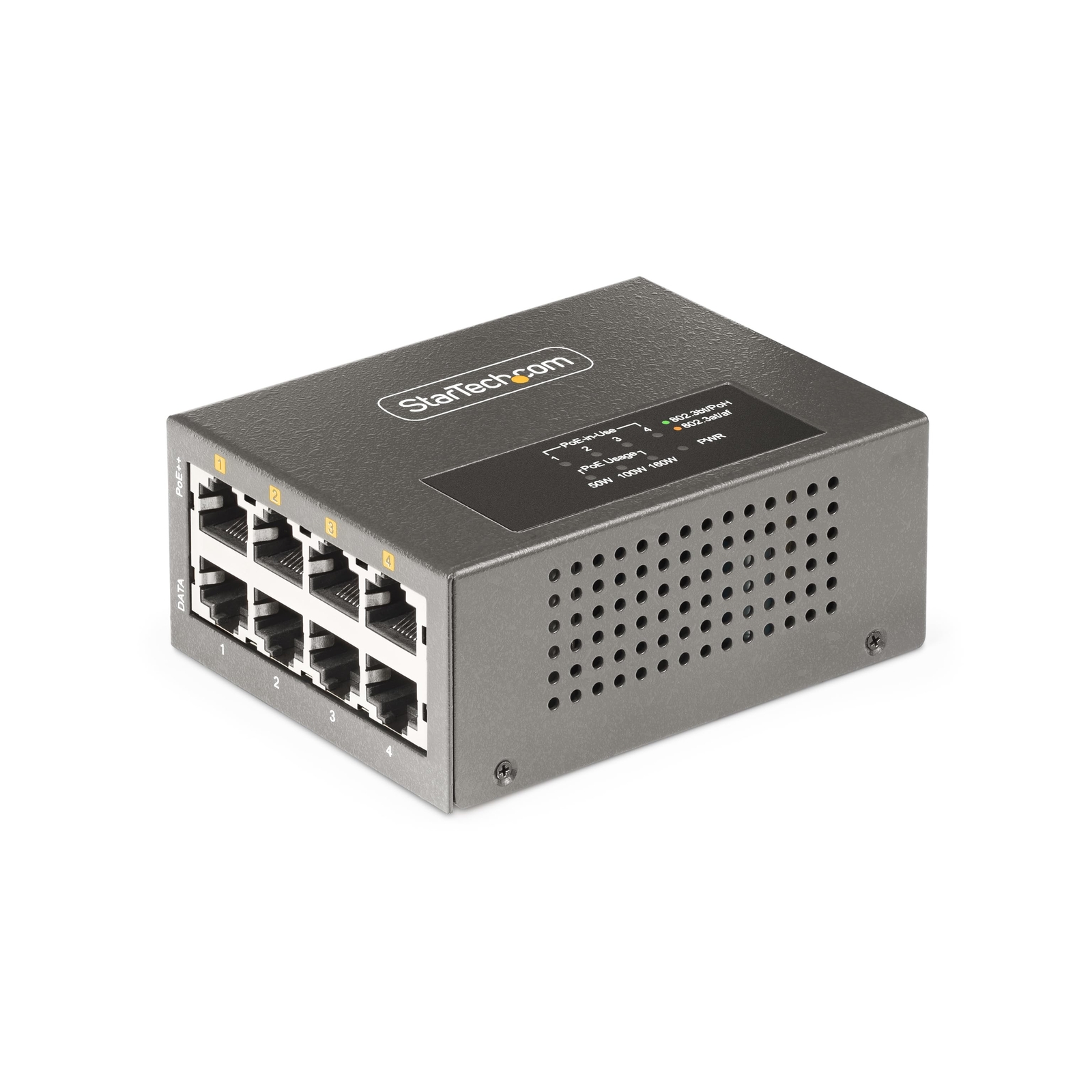

StarTech.com 4-Port Multi-Gigabit PoE++ Injector, 5/2.5/1G Ethernet (NBASE-T), PoE/PoE+/PoE++, Wall/DIN Rail Mountable
Product Details Style: 802.3bt 90W
Brand: StarTech.com
MPN: AS445C-POE-INJECTOR
UPC: 065030900928
EAN: 0065030900928
- Brand
- Number of Ports: 4
- Included Components: 1 4-Port PoE Injector
- Color: Black
- Compatible Devices: No drivers or software required
- Item Weight: 278 Grams
- Voltage: 52 Volts
- Interface Type: PoE
- Data Transfer Rate: 5000 Gigabits Per Second
- Global Trade Identification Number: 28
- Manufacturer: StarTech.com
- UPC: 065030900928
- Product Dimensions: 3.7 x 2.8 x 1.5 inches
- Item Weight: 9.8 ounces
- Item model number: AS445C-POE-INJECTOR
- Date First Available: November 10, 2023
- Country of Origin: Taiwan
- 4-PORT MULTI-GIGABIT POE INJECTOR: Multiport PoE++ injector supports up to 5Gbps (NBASE-T) w/auto-negotiation; TAA-compliant Power Sourcing Equipment (PSE) delivers power & data over Ethernet cable; Supports PoE/PoE+/PoE++ 95W max; Level-4 ESD protection
- SELECTABLE POWER OUTPUT: DIP switch allows user to select the power output between auto-negotiation up to 90W, 95W PoH+, or forced legacy 60W (UPoE); 802.3af/802.3at/802.3bt power modes available on all ports; Total power budget of 160 Watts
- MULTI-GIGABIT: Supports 5/2.5/1Gbps & 100/10Mbps; 5GBASE-T/2.5GBASE-T compatible; Provide data & power to Powered Devices (PDs) up to 328ft (100m) w/Cat 5e/6/6a cabling; Supports WoL/PXE/9K Jumbo frames; Unmanaged PoE injector streamlines setup & deployment
- RUGGED ENCLOSURE: Durable full-metal housing ensures durability; Mount the PoE injector to a wall or a DIN rail with the included bracket; LAN transformers isolate the input/output data, and a power circuit prevents interference between ports
- STATUS LEDS: Top-facing color-coded diagnostic LEDs indicate the current PoE mode per Ethernet port and current PoE power budget of the injector for quick at-a-glance status of the system
The Power over Ethernet (PoE) Injector is designed for seamless integrationinto a network infrastructure, delivering multigigabit speeds of 5/2.5/1Gbpsand 100/10Mbps across 4 Ethernet ports, utilizing a single Cat5e (or better)cable for network data and power transmission extending up to 328ft (100m) forremote installations. With PoE, PoE+, PoE++ compatibility, and a selectablepower output switch (90W, 95W PoH, or legacy 60W), it ensures effortlessconnectivity with Powered Devices (PD) such as IP cameras, access controldevices, POSs, wireless access points, and digital signage. This versatile PoEInjector adheres to IEEE 802.3af, 802.3at, and 802.3bt standards, deliveringup to 52V DC and 95Watts, eliminating the need for a separate power source.The Level-4 ESD protection (15kV air and 8kV contact) enhances device safetyand reduces EMI. The support for 2.5GBASE-T and 5GBASE-T technology reducesnetwork slowdowns during data-intensive tasks such as high-quality videostreaming, high-speed Internet access, online/local backups, and FTPtransfers. This TAA-compliant PoE adapter is backed for 2 years, includingfree lifetime 24/5 multi-lingual technical assistance.
