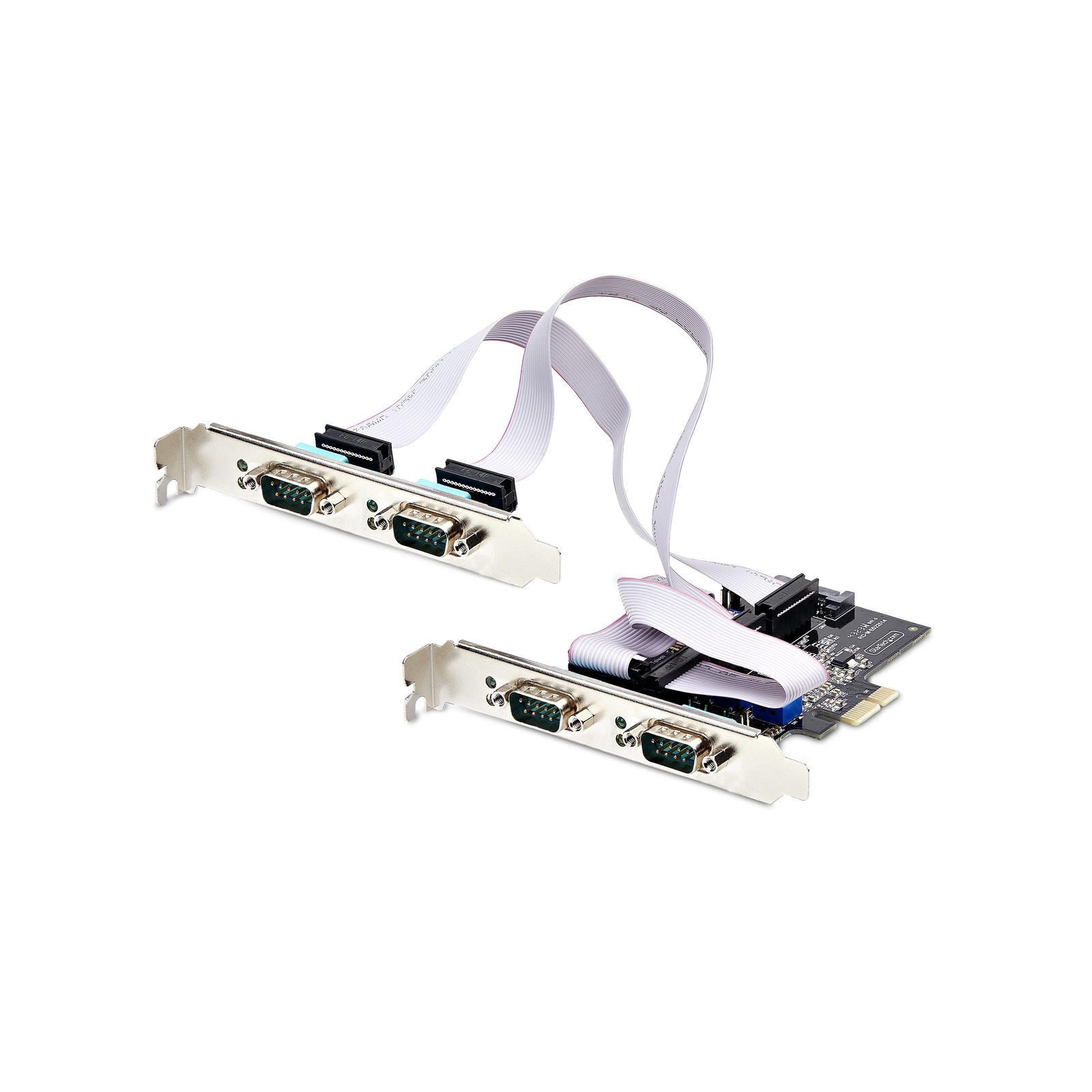

StarTech.com 4-Port Serial PCIe Card, Quad-Port PCI Express to RS232/RS422/RS485 DB9 Serial Card, Standard/Low-Profile Brackets, 16C1050 UART, ESD Protection, Windows/Linux (PS74ADF-SERIAL-CARD)
Product Details Style: 4-Port
Brand: StarTech.com
MPN: PS74ADF-SERIAL-CARD
UPC: 065030903141
EAN: 0065030903141
- Brand
- Hardware Interface: PCI Express x1
- Product Dimensions: 4.8"L x 4.3"W x 0.6"H
- Style: 4-Port
- Item Weight: 0.13 Pounds
- Brand: StarTech.com
- Item model number: PS74ADF-SERIAL-CARD
- Operating System: Windows 7, 8, 8.1, 10, 11 , Windows Server 2016, 2019, 2022 , Linux 2.6.13 and newer (LTS Versions Only)
- Item Weight: 2.08 ounces
- Product Dimensions: 4.8 x 4.3 x 0.6 inches
- Item Dimensions LxWxH: 4.8 x 4.3 x 0.6 inches
- Color: Black
- Manufacturer: StarTech.com
- Date First Available: December 14, 2023
- 4-PORT PCIE SERIAL CARD: On-board DIP switches allow each DB9 serial port to operate in its own independent mode, enabling the connection of RS-232, RS-422, and RS-485 devices; LED indicators to monitor data transmit/receive status
- CONFIGURABLE POWER: Quad-Port PCI Express Serial Adapter Card features configurable power of 12V (1.5A per port), 5V (1.5A per port), or no power (RI) over pin 9 via auxiliary SATA power; Per-Port power modes are individually configurable via jumpers
- APPLICATIONS: Ideal for desktops and servers, with a wide range of uses such as point-of-sale terminals, PLCs, factory control and automation, scientific sensors, medical equipment, scanners, and oscilloscopes; DB9 ports work with screw-locking cables
- STANDARD & LOW PROFILE BRACKETS: TAA-Compliant Serial Card is equipped with two standard profile brackets (pre-installed), and includes four low-profile brackets for compatibility with small form factor desktops/servers
- TECH SPECS: Asix AX99100 Chipset; 16C450 and 16C550 UART compatible; 4x 9-Pin D-Sub Ports; Max Baud 921.6Kbps per port; 256 Byte FIFO; COM Retention; Supports Windows and Linux; Odd/Even/Mark/Space/None Parity Modes; 5/6/7/8/9 Data Bits; PCIe 2.0 x1
Add serial communication support to a desktop computer or Small Form Factor(SFF) system, using this 4-Port Serial PCI Express Card. The four DB9 portscan be independently configured to support RS-232, RS-422, and 2/4-wire RS-485Recommended Standards, for communication with compliant serial peripheraldevices. This PCIe Serial Card is equipped with on-board DIP switches,enabling each DB9 serial port to operate in RS-232, RS-422, and/or RS-485mode(s). The card features LED indicators per port, providing real-timemonitoring of port activity. The PCI Express Serial Adapter Card featuresthree power modes that are configurable via on-board jumpers, including 12V(1.5A per port), 5V (1.5A per port), or no power (RI), over pin 9. This serialcard enables the continued use of legacy serial devices, preventing down timeand avoiding costly upgrades. The 4-Port PCIe Serial Card is an ideal systemupgrade for a wide range of applications (e.g., point-of-sale terminals, PLCs,factory control and automation, scientific sensors, medical equipment,scanners, and oscilloscopes). This product is backed for 2-years and freelifetime 24/5 multi-lingual technical assistance.
