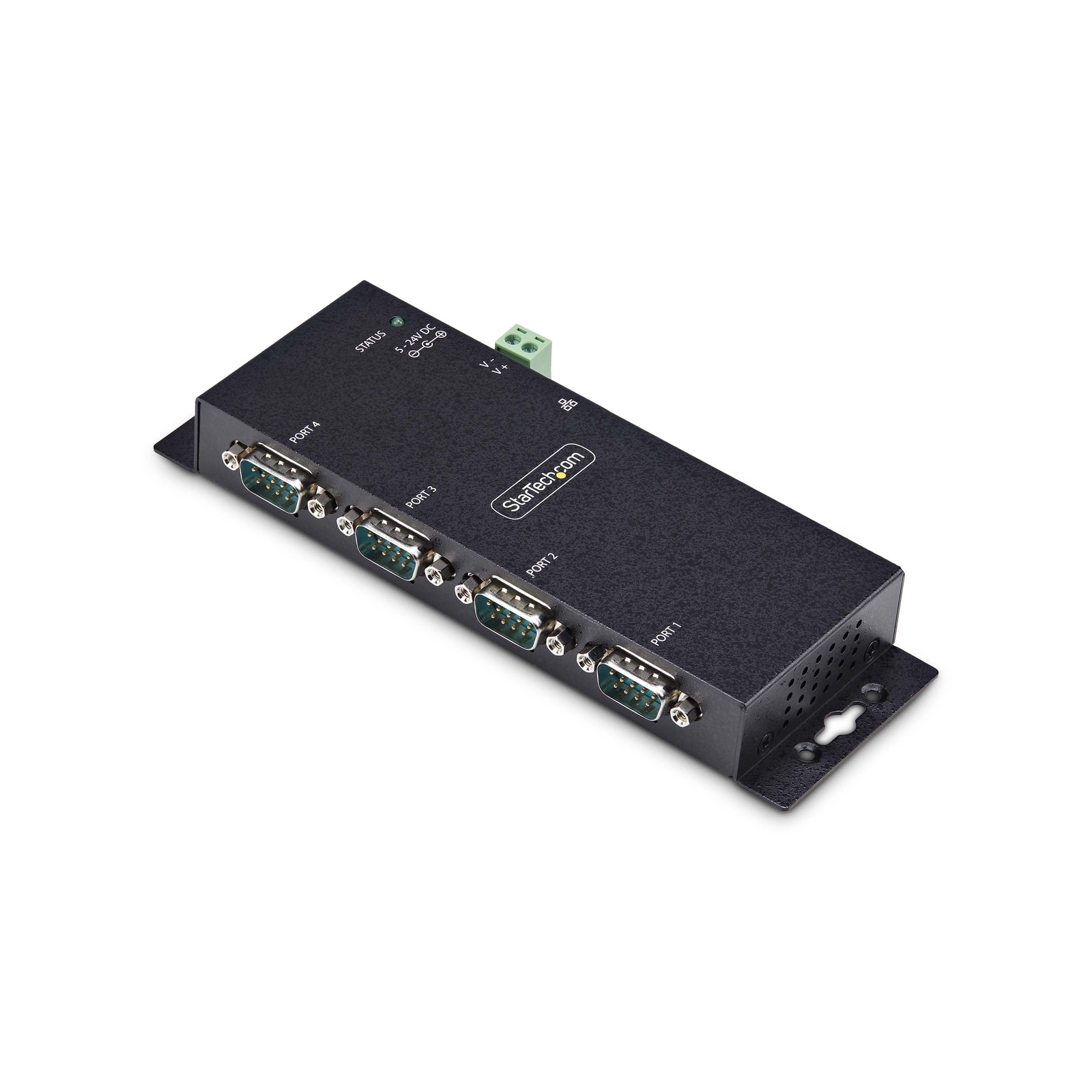

StarTech.com 4-Port Serial to Ethernet Adapter, IP Serial Device Server for Remote RS232 Devices, Wall/DIN Rail, LAN to DB9
Product Details
- Compatible Devices: RS232 serial devices, Internet Protocol Camera
- Color: Black
- Item dimensions L x W x H: 2.4 x 7 x 0.9 inches
- Brand
- Number of Ports: 4
- Brand: StarTech.com
- Item model number: I43-SERIAL-ETHERNET
- Item Weight: 1.41 pounds
- Product Dimensions: 2.4 x 7 x 0.9 inches
- Item Dimensions LxWxH: 2.4 x 7 x 0.9 inches
- Color: Black
- Manufacturer: StarTech.com
- Country of Origin: Taiwan
- Date First Available: June 20, 2024
- SERIAL TO IP CONVERTER: Connect up to four RS232 serial devices remotely over an IP-based network; Use for POS systems, barcode readers, sensors, weighing systems, CNC controllers & PLCs; DB9 serial ports supports up to 921.6Kbps; TAA-compliant
- ETHERNET AND POWER OPTIONS: Single RJ45 10/100 Mbps Ethernet port; Serial device server operates over Telnet (RFC2217), UDP, or TCP client/server; Dual power options DC jack and terminal block; Includes a universal power adapter & supports 5VDC over pin 9
- VIRTUAL COM AND WEBUI: Windows-based DSM (Device Server Manager) software enables virtual COM port management for one or more serial device servers; Fully configurable through a WebUI with universal OS compatibility
- MOUNTING OPTIONS: Includes all the necessary hardware for wall and DIN rail mounting; Multiple mounting holes on the RS232 over IP adapter allow installation in the optimal orientation for any application
- RUGGED ENCLOSURE: All-metal housing ensures durability in harsh conditions; Dimensions 7x2.3x0.9in (178x59.4x23mm); Supports Level-4 ESD protection (15kV air/8kV contact)
This 4-port serial to IP converter enables remote control of different RS232devices over an IP network. The serial over LAN adapter is highly customizableusing the Windows-based companion software, Device Server Manager (DSM), thatenables the creation of virtual COM ports, allowing seamless migration ofexisting serial applications. Dimensions of 7x2.3x0.9in. The converter ishoused in a full metal enclosure for durability in harsh environments. Itincludes all necessary hardware for wall and DIN rail mounting. The converterfeatures Dual power options, DC jack and terminal block. A universal poweradapter is included. Single RJ45 10/100 Mbps Ethernet port supporting TelnetServer (RFC2217), TCP Server, TCP Client, and UDP protocols. It also supportsESD level 4 surge protection and can provide 5VDC through pin 9 if required.
