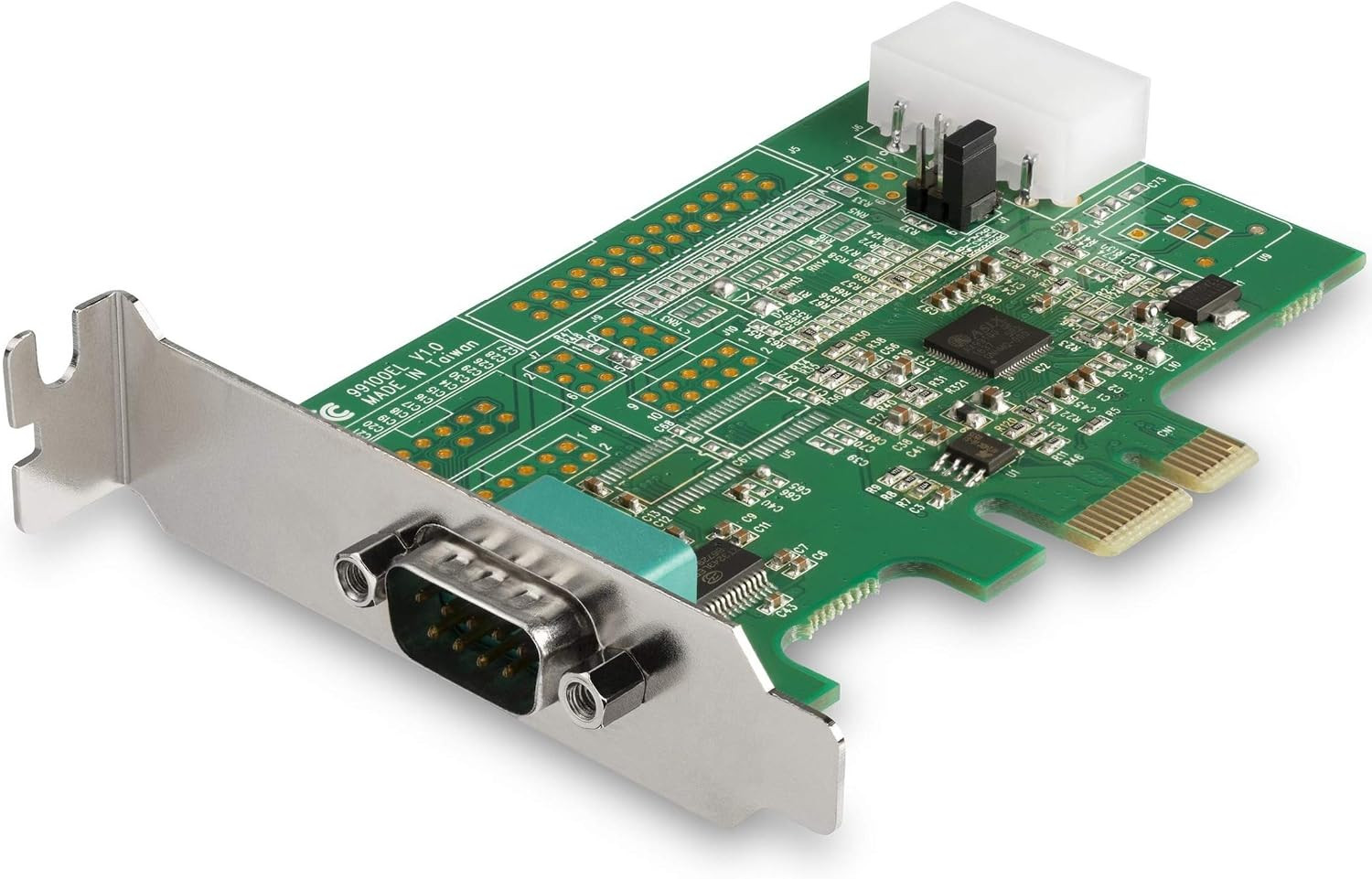

Startech 1-Port PCI Express RS232 Serial Adapter Card, TAA (PEX1S953LP)

This RS232 Serial Adapter Card lets you add an RS232 (DB9) serial port to your computer through a PCI Express (PCIe) slot. It enables your system to interact with serial devices, such as card readers, printers, PIN pads, and modems, at speeds of up to 921.4Kbps. Maximum Compatibility With broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments. The card comes pre-configured with a low-profile bracket, and includes an optional full-profile bracket, so installation is easy regardless of the case form factor. Experience Optimal Technology This PCIe to serial adapter is compatible with industry standard 16950 UART, supports a max baud rate of up-to 921.4Kbps and provides 5/12V power output on Pin 9 when external power connected. It offers 128-byte depth FIFO per transmitter and receiver, supports 9, 8, 7, 6, 5 data bits, has an Asix AX99100 chipset for maximum performance and is PCI Express 1.1 compliant. PEX1S953LP is backed by a StarTech.com lifetime warranty and free lifetime technical support.

• 1 PORT SERIAL CARD: Serial controller card w/ 16950 UART based on ASIX AX99100, allows 1x DB9 port w/bi-directional RS232 speeds up to 921.6Kbps per port, available 256 byte FIFO buffer & 9th data bit; Upgraded version of our popular card PEX1S952LP
• OPTIONAL CONFIGURABLE POWER: PCI Express RS232 serial adapter card provides choice of 12v, 5v, or none through pin 9 w/up to 2A total
• STANDARD PROFILE & LOW PROFILE BRACKET: PCIe serial card comes w/ a low profile bracket pre-installed & 1x full profile bracket is incl for versatile install; Supports Windows & Linux
• VERSATILE APPLICATIONS: For low/standard profile desktop/servers w/ uses in point of sale terminals, PLCs, control/automation in factories, scientific sensors, medical equipment, scanner, oscilloscope

Item Specification

• Model Number PEX1S953LP Number of Items 1 Number of Packs 1 Global Trade Identification Number 00065030881159 Item Highlight PCIe RS232 Serial DB9 Host Controller Card, 16950 UART, Low Profile Expansion Card for Windows and Linux Unit Count 1 Count Item Type Name Serial Adapter Mfr Part Number PEX1S953LP Warranty Description Lifetime Hardware Interface PCI Compatible Devices [Devices with PCI Express slot and compatible operating system] Operating System Linux,Windows Item Dimensions L x W x H 3.9"L x 2.6"W x 5.9"H Item Weight 1.6 ounces Style Name 1 Port Product Dimensions 3.9"L x 2.6"W x 5.9"H Style 1 Port

Dimensions Shipping Returns Additional Info

• Product Dimensions: 5.9 inches x 3.9 inches x 2.6 inches. Weight: 1.6 oz
