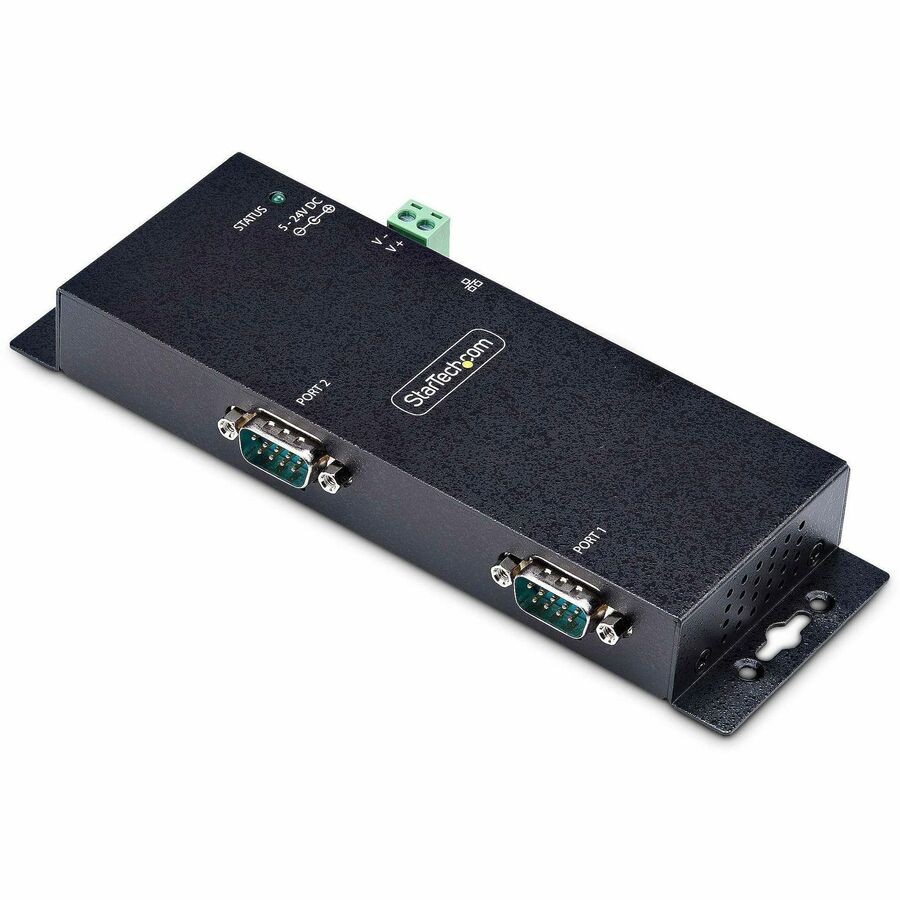

Startech 2-Port Serial to Ethernet Adapter, Metal Housing, TAA Compliant Brand: StarTech UPC: 0065030905992 Mfr Part #: I23SERIALETHERNET
General Information
This 2-port serial to IP converter is an efficient solution for remotely connecting and controlling a variety of RS232 serial devices over an IP-based network.
Configuration and Management
The serial over LAN adapter is highly customizable using the Windows-based companion software, Device Server Manager (DSM), that enables the creation of virtual COM ports, allowing seamless migration of existing serial applications to the new virtual COM ports. The DSM provides a unified management experience, allowing multiple serial to Ethernet converters to be managed simultaneously. The converter also features a versatile web-based interface for remote management, making it compatible in mixed OS environments.
Flexible Installation and Rugged Chassis
Dual power options, DC jack and terminal block, provide installation flexibility and convenience. The converter is housed in a full metal enclosure for durability in harsh environments. The DB9 over IP converter includes all necessary wall and DIN rail mounting hardware. Multiple mounting holes along the chassis allow it to be installed in the most useful orientation for any application. Dimensions of 7x2.3x0.9in (178x59.4x23mm).
Ethernet and Power Options
The TAA-compliant IP-to-serial converter features a single RJ45 10/100 Mbps Ethernet port and supports Telnet Server (RFC2217), TCP Server, TCP Client, and UDP protocols for versatile network connectivity. It also includes a universal power adapter, supports Level-4 ESD protection (15kV air/8kV contact), and can supply 5VDC over pin 9 if required.
Technical InformationConnectivity Technology:Wired
Media & PerformanceMedia Type Supported:Twisted Pair
Network & CommunicationEthernet Technology:Fast EthernetNetwork Standard:10/100Base-T
Power DescriptionInput Voltage:120 V ACInput Voltage:230 V ACInput Voltage Range:100V AC to 240V ACPower Consumption:15 WInput Current:480 mAPlug/Connector Type:Type M
Physical CharacteristicsColor Family:BlackProduct Color:BlackProduct Material:SteelForm Factor:DIN Rail MountableForm Factor:Wall (Approximate):11.10 oz
Device Server 1 x Din Rail Kit 2 x Din Rail Screws 1 x Universal Power Adapter 1 x Quick-Start GuideCertifications & Standards:
TAA Compliant:Yes
