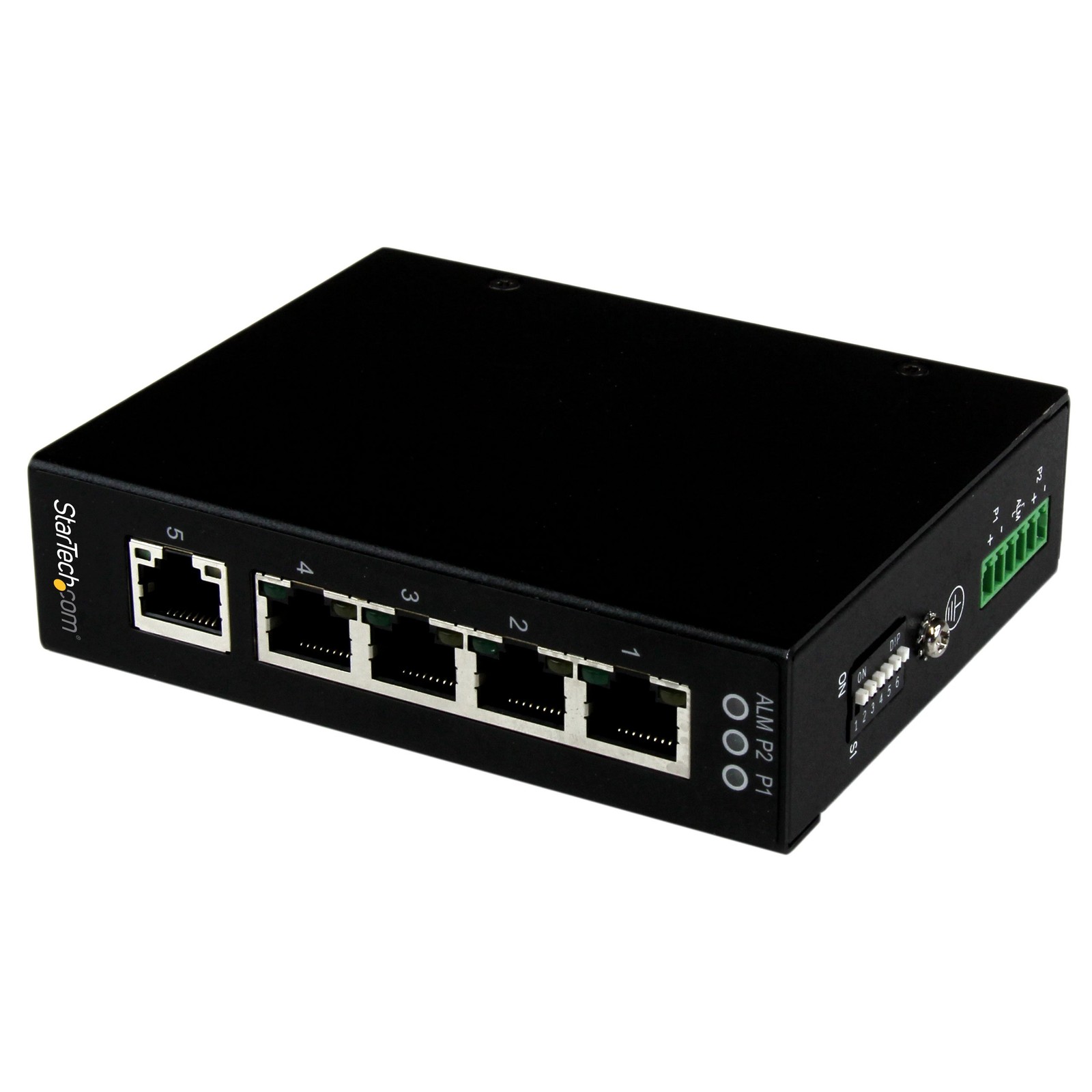

Startech 5 Port Unmanaged Industrial Gigabit Ethernet Switch - Din Rail / Wall-mountable - 5 Ports - 5 X Rj-45 - 10/100/1000base-t - Rail-mountable Startech 5 Port Unmanaged Industrial Gigabit Ethernet Switch - Din Rail / Wall-mountable - 5 Ports - 5 X Rj-45 - 10/100/1000base-t - Rail-mountable

International Customers: All electronic products are packaged for sale in the US with US voltage.

End of Life Manual Availability: Yes

WEEE Statement: RoHS Declaration URL: Contents: 5 Port Unmanaged Industrial Gigabit Ethernet Switch - DIN Rail / Wall-Mountable 2 x Wall-Mount Brackets 1 x DIN-Rail Clip 4 x Screws 1 x Terminal Block 1 x Instruction Manual

Certifications & Standards: CE FCC IEEE Standards: 802.3 802.3u 802.3ab 802.1p 802.3az 802.3ad

TAA Compliant: Yes

Environmental Certification: EU RoHS

REACH Declaration URL: Friendly: Yes

REACH free of SVHC: Yes

Environmental Compliance:

Restriction of Hazardous Substances (RoHS) 2
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Waste Electrical and Electronic Equipment Directive (WEEE)

Country of Origin: Taiwan

Product Description

This item is brand-new, factory sealed.

The IES51000 5-Port Industrial Ethernet Switch offers 5 Gigabit Ethernet ports in a compact, IP30-rated metal enclosure, making it the ideal network solution for harsh industrial environments such as factory floors, warehouses or large junction boxes.

Quickly connect your network devices with little to no configuration. This unmanaged industrial network switch supports 10/100/1000 Mbps transfer speeds, full/half-duplex auto-negotiation, jumbo frames and auto MDI/MDIX, which helps to eliminate the hassle of troubleshooting mis-matched speed and duplex settings.

Providing seamless operation in the event of power dips or failures, the switch features redundant 12-58V DC terminal block power inputs to help prevent unnecessary downtime. When used with two power sources, the switch also supports alarm relay contacts that you can wire to your existing alarm circuit to notify you instantly when a power disruption occurs.

For easy installation and dependable performance in harsh environments, the switch can be DIN Rail or wall mounted and features a compact, IP30-rated enclosure with an extended operating temperature range (-40C to 75C).

Backed by a 2-year warranty and free lifetime technical support.

Package Contents:

• 5 Port Unmanaged Industrial Gigabit Ethernet Switch - DIN Rail / Wall-Mountable
• 2 x Wall-Mount Brackets
• 1 x DIN-Rail Clip
• 4 x Screws
• 1 x Terminal Block
• 1 x Instruction Manual

SpecificationManagement & ProtocolsManageableNoPower DescriptionPower SourcePower AdapterPoE (RJ-45) PortNoPower Consumption62 WPhysical CharacteristicsProduct MaterialSteelForm Factor

Weight (Approximate)11.60 Warranty2 YearInterfaces/PortsNetwork (RJ-45)YesUplink PortNoBypassNoUSBNoStack PortNoManagement PortNoPort/Expansion Slot Details5 x Gigabit Ethernet NetworkTotal Number of Network Ports5ModularNoToken Ring PortNoLRE PortNoNumber of Network (RJ-45) Ports5General InformationBrand Name
