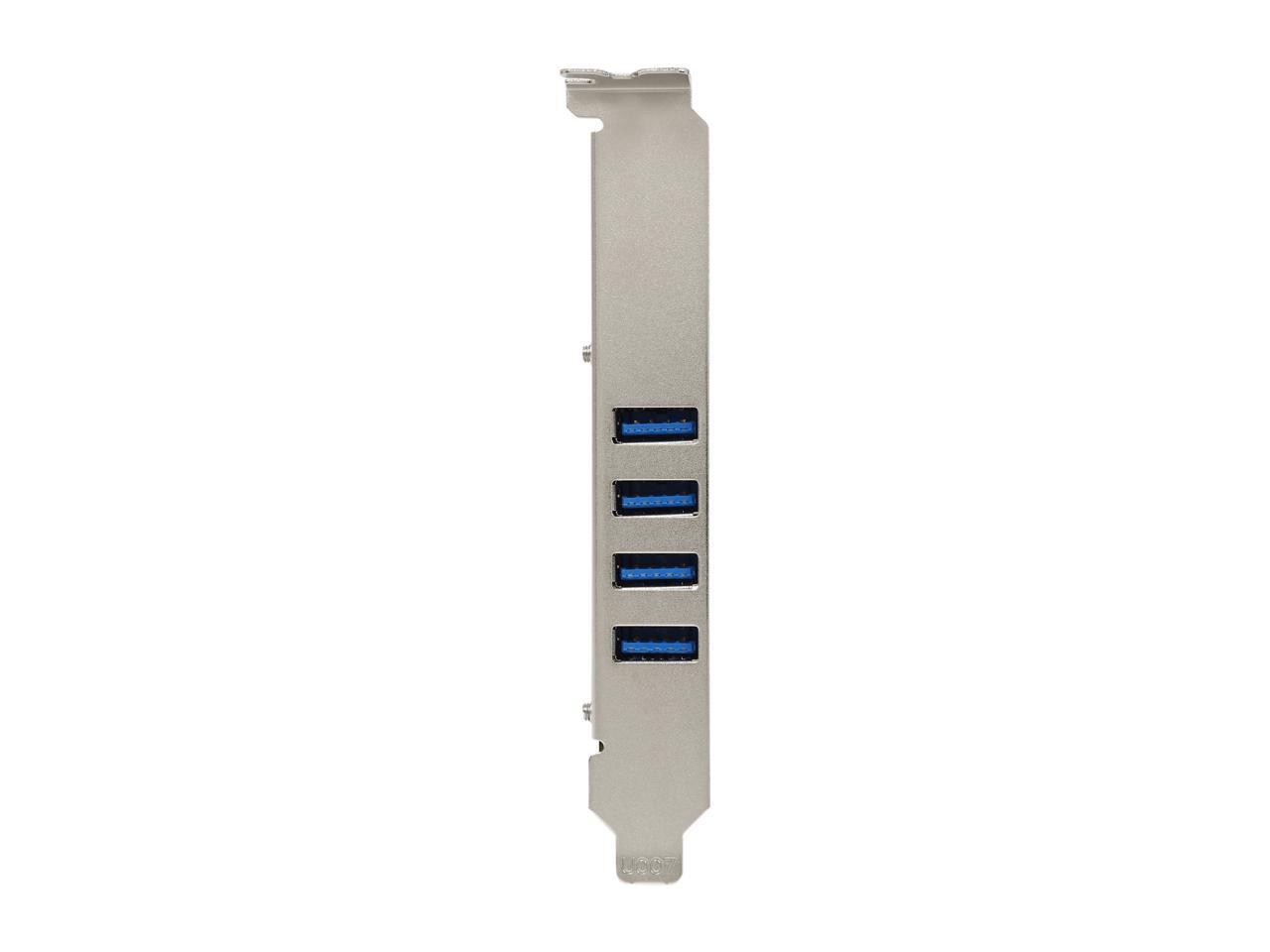

Startech 4 Port Quad Bus Pci Express [pcie] Superspeed Usb 3.0 Card Adapter With Uasp - Sata/lp4 Power - Pci Express X4 - Plug-in Card - 4 Usb Port[s] (pexusb3s44v) Startech 4 Port Quad Bus Pci Express [pcie] Superspeed Usb 3.0 Card Adapter With Uasp - Sata/lp4 Power - Pci Express X4 - Plug-in Card - 4 Usb Port[s] (pexusb3s44v)

International Customers: All electronic products are packaged for sale in the US with US voltage.

WEEE Statement: of Life Manual Availability: Yes

EU RoHS Declaration URL: Contents: 4 Port PCIe USB Card 1 x Low Profile Bracket 1 x Driver CD 1 x Instruction Manual

Environmental Certification: EU RoHS

Additional Information: OS Compatibility: Windows® Vista, 7, 8, 8.1, 10 Windows Server® 2008 R2, 2012, 2012 R2, 2016, 2019 Linux 2.6.31 to 4.11.x LTS versions only

Environmentally Friendly: Yes

REACH Declaration URL: free of SVHC: Yes

Platform Supported:

Restriction of Hazardous Substances (RoHS) 2
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Waste Electrical and Electronic Equipment Directive (WEEE)

Country of Origin: China

Product Description

This item is brand-new, factory sealed.

The PEXUSB3S44V 4-Port PCI Express USB 3.0 Card lets you add four quad bus USB 3.0 ports to your PCIe x4-enabled PC. Quad bus architecture improves USB 3.0 performance by transferring data on independent channels to your computer, giving you faster file transfers.

When multiple devices are connected, traditional single bus USB 3.0 cards share your maximum bandwidth between all ports. By employing four host controller chipsets, each port operates on a separate independent transmission channel. Allocating up to 5 Gbps to each USB port reduces performance bottlenecks, and effectively quadruples your total available to bandwidth to 20 Gbps.

Enhanced with UASP support (USB Attached SCSI Protocol), this USB 3.0 controller performs up to 70% faster than conventional USB 3.0 when paired with a UASP supported enclosure (Note: UASP requires a compatible operating system). Using a more efficient protocol than the traditional USB BOT (Bulk-Only Transport), UASP technology optimizes transfers by allowing multiple commands to be processed simultaneously, significantly increasing transfer speeds for less wait time on data transfers. See our UASP test results below for further details.

For high-power USB devices, this PCIe USB 3.0 card includes an optional SATA or LP4 power connector to connect to your system power supply and deliver up to 900mA of power per port to USB 3.0 bus-powered devices (500mA for USB 2.0).The controller card is compliant with USB 3.0 standards while offering backward compatibility with existing USB 2.0 / 1.1 devices. For added versatility, the USB 3.0 PCIe card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers.Hardware
Bus Type
PCI Express
Card Type
Standard Profile (LP bracket incl.)
Chipset ID
4 x Renesas/NEC - PD720202
Industry Standards
USB 3.0 Specification Rev. 1.0
USB Battery Charging Specification Rev. 1.2 (Apple Mode only)
PCI Express Base Specification Rev. 2.0
Intel xHCI Specification Rev. 1.0
Interface
USB 3.0
Port Style
Integrated on Card
Ports
4Connector(s)
Connector Type(s)
1 - PCI Express x4 Male
External Ports
4 - USB 3.0 A (9 pin SuperSpeed) Female
Internal Ports
1 - LP4 (4 pin Molex Large Drive Power) Female
Internal Ports
1 - SATA Power (15 pin) PlugPerformance
Maximum Cable Length
9.8 ft 3 m
Maximum Data Transfer Rate
5Gbps per port - 20Gbps Total
Type and Rate
USB 3.0 - 5 Gbit/s
UASP Support
YesSoftware
OS Compatibility
Windows 8 (32/64), 7 (32/64), Vista (32/64), XP (32/64)
Windows Server 2012, 2008 R2, 2003 (32/64)
Linux Kernel 2.6.31 or laterSystem and Cable Requirements
Available PCI Express x4 or greater slotIncluded in Package
1 - 4 Port PCIe USB Card
1 - Low Profile Bracket
1 - Driver CD
1 - Instruction ManualWeight
1 lb
Item Dimension
6.57 x 5.51 x 1.10
Warranty Information
2 Year Warranty SpecificationPhysical CharacteristicsForm FactorPlug-in CardWeight (Approximate)3.20 ozLength6.6"Product ColorBlackHeight4.7"Color Warranty2 YearInterfaces/PortsNumber of SATA Ports1Number of USB 3.2 Ports4Total Number of USB Ports4General InformationBrand Name
