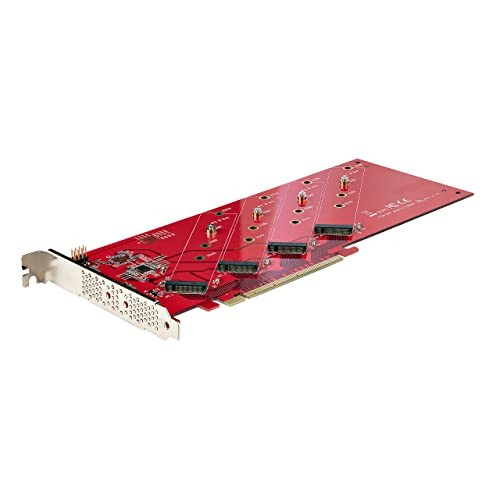

Startech Quad M.2 Pcie Adapter Card Startech Quad M.2 Pcie Adapter Card

International Customers: All electronic products are packaged for sale in the US with US voltage.

Package Contents: PCI Express x16 to Quad M.2 PCIe SSD Adapter with Bifurcation 1 x Quick-Start Guide 1 x Set of Mounting Screws

Certifications & Standards: CE FCC

Additional Information: Hardware Interface: M.2 PCIe Bus Type: PCI Express Number of Drives: 4 Drive Size: 22 mm - M.2 NVMe Compatible Drive Types: M.2 (PCIe, NVMe, M-Key, NGFF) Drive Installation: Fixed SupportedDriveHeight(s): 2242 2260 2280 22110 Performance Type and Rate: PCI Express 4.0 (16 Gbps) Hardware Raid Supported: No Hot Swap Capability: No MTBF: 4,353,192 hrs Connector(s) DriveConnectors: 4 - M.2 (NVMe, M-Key, PCIe x4) HostConnectors: 1 - PCI Express x16 Software OS Compatibility: No Drivers or Software Required

Environmentally Friendly: Yes

Compatibility: Compatible Drive Types: M.2 (PCIe, NVMe, M-Key, NGFF)

Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE)

Country of Origin: Taiwan

Product Description

This item is brand-new, factory Quad M.2 PCIe Adapter Card, PCIe x16 to Quad NVMe or AHCI M.2 SSDs, PCI Express 4.0, 7.8GBps/Drive, Bifurcation Required, Windows/Linux Compatible (QUAD-M2-PCIE-CARD-B)

• HIGH PERFORMANCE: Install 4x PCIe M.2 SSDs (NVMe or AHCI) into a computer or server through an available x16 PCI Express 4.0 slot for ultra-fast data access, capable of reaching high performance read and write speeds up to 7.8GBps per drive
• WIDE COMPATIBILITY: This Quad M.2 PCIe Adapter card was extensively tested to ensure compatibility with Samsung 980 Pro, 970 EVO, 950 EVO, SM951, and other 2242/2260/2280/22110mm PCIe M-Key M.2 SSDs | Not compatible with SATA based M.2 drives
• BACKWARDS COMPATIBILITY: Compatible with PCIe 3.0 motherboards with PCIe bifurcation and an available x16 PCIe slot | PCIe bifurcation is required | This M.2 Adapter works with most workstation and server OS's such as Windows, Windows Server, and Linux
• SOFTWARE RAID FUNCTIONALITY: The M.2 PCI Express adapter enables access to the M.2 PCIe SSDs individually | With OS or 3rd party RAID software, build an array to add redundancy, more capacity, or performance through RAID 0, RAID 1, RAID 5, RAID 10 or JBOD
• VENTED BRACKETS: This PCIe M.2 NVMe Adapter Card comes with a pre-installed full profile bracket | The vented bracket allows for better air flow which helps maintain optimal and reliable performance while helping to avoid drive throttling

• Brand: StarTech
• Series: QUAD-M2-PCIE-CARD-B
• Item model number: QUAD-M2-PCIE-CARD-B
• Operating System: Linux,Windows
• Item Weight: 5.3 ounces
• Product Dimensions: 6.7 x 11.4 x 1.2 inches
• Item Dimensions LxWxH: 6.7 x 11.4 x 1.2 inches
• Color: Red
• Manufacturer: STARTECH.COM

QUAD M.2 PCIE ADAPTER CARD ENABLES INSTALLATION OF 4X PCIE M.2 SSDS (NVME/AHCI)

Package Contents:

• PCI Express x16 to Quad M.2 PCIe SSD Adapter with Bifurcation
• 1 x Quick-Start Guide
• 1 x Set of Mounting Screws

SpecificationPhysical CharacteristicsProduct ColorRedColor FamilyRedWarrantyLimited Warranty2 YearGeneral InformationBrand Name
