The Objet260 Connex1™ provides precisionand efficiency in a footprint that fits your officeenvironment. Build realistic models with ultra-finelayer thickness, accuracy and smooth surfaces, aslarge as 255 x 252 x 200 mm (10.0 x 9.9 x 7.9 in.)— quickly and easily.
Backed by triple-jetting technology, Objet260Connex1 offers great material capacity and hot-swapping capability, empowering you to maximizeworkflow efficiency. With the ability to combine upto three base resins in a single build, Objet260Connex1 creates parts that simulate overmoldingand produces three-material prototypes withminimal post-processing efforts. Achieveimpressive detail with your choice of 17photopolymers that offer a wide range ofmaterial properties — including rigid and flexible,transparent and simulated polypropylene.
3D Printer Specifications
Model Materials
Rigid Opaque: VeroWhitePlus™, VeroBlackPlus™, VeroGray™, VeroBlue™,Vero PureWhite™
Rubber-like: Agilus30™ in black and clear, TangoPlus™, TangoBlackPlus™,TangoBlack™, TangoGray™
Transparent: VeroClear™ and RGD720
Simulated Polypropylene: Rigur™ and Durus™
High Temperature
Bio-compatible
Support Material
SUP705 (WaterJet removable)
SUP706 (soluble)
Material Options17
Maximum Materials per Part3
Maximum Build Size (XYZ)255 x 252 x 200 mm (10.0 x 9.9 x 7.9 in.)
System Size and Weight87 x 120 x 73.5 cm (34.2 x 47.2 x 29 in.); 264 kg (581 lbs.)
Material Cabinet (not included): 33 x 117 x 64 cm (13 x 46.1 x 25.2 in.); 76 kg (168 lbs.)
ResolutionX-axis: 600 dpi; Y-axis: 600 dpi; Z-axis: 1600 dpi
Accuracy20-85 microns for features below 50 mm; up to 200 microns for full model size
Minimum Layer ThicknessHorizontal build layers as fine as 16 microns (.0006 in.)
Build Modes
High Quality: 16-micron (.0006 in.) resolution
High Speed: 30-micron (.001 in.) resolution
SoftwareObjet Studio™ intuitive 3D printing software
Workstation CompatibilityWindows 7 or Windows 8
Network ConnectivityLAN - TCP/IP
Operating ConditionsTemperature 18-25°C (64-77°F); relative humidity 30-70% (non-condensing)
Power Requirements110-240 VAC 50/60Hz; 1.5 kW single phase
Regulatory ComplianceCE, FCC
Includes:

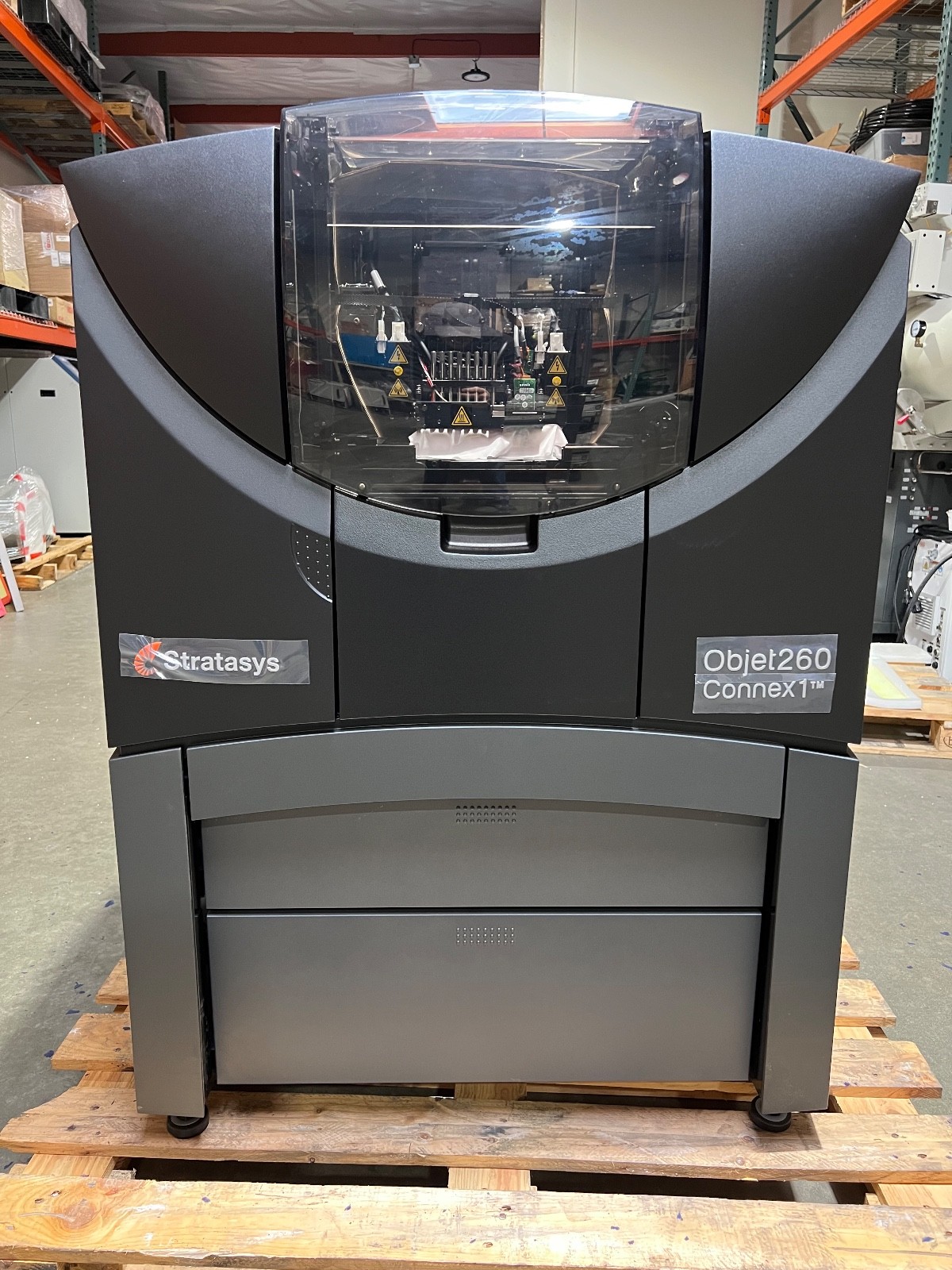

Objet260 Connex1 Printer
WaterJet OWJ-03US Cleaning Unit
1x OBJ-03263
4x OBJ-03200
3x OBJ-03214
1x OBJ-03216
2x OBJ-03271
3x OBJ-03258
3x OBJ-03231
1x OBJ-03309
1x OBJ-03308
Does not include material cabinet
Ships freight for $750
***NOTE: Shipping to residential or requiring a lift-gate will incur additional charges. Please contact us for a quote before buying***
