Sun Ultra 40 Workstation Motherboard
Part# 375-3343Model: A71System Code Name: SiriusManufacturer: Sun Microsystems / ORACLEDescription: Motherboard, 0GHz CPU, 0MB Memory, with Mounting TrayCondition: New Bulk, unused.
375-3343 Specifications:

• Dual CPU Socket Motherboard
• AMD Opteron Processor (940-pin), 200-series)
• 8 Total DIMM Slots (4 per Installed CPU)
• Audio Interfaces (Two in Front / Eight in Rear)
• 2x 10/100/1000 Base-T Gigabit Ethernet Ports (rear)
• 2x PCI-Express x16 slots (reserved for graphics)
• 2x PCI-Express x4 expansion slots
• 2x PCI slots (32-bit, 33MHz)
• 2x IEEE 1394a ports (front)
• 8x USB 2.0 Serial Bus ports (Two in Front / Six in Rear)

Supported Sun Workstations:

• Sun Ultra 40

Manufacturer Notes:

1. The minimum Solaris operating system is Solaris 10 1/06 x64.
2. Install the Fan/Heatsink with the Air Flow arrow facing the rear of the chassis.

375-3343 Memory Notes:

1. Install the first CPU 0 memory pair in black slots DIMM 0 and DIMM 1.
2. Install the first CPU 1 memory pair in black slots DIMM 4 and DIMM 5.
3. Install the second CPU 0 memory pair in blue slots DIMM 2 and DIMM 3.
4. Install the second CPU 1 memory pair in black slots DIMM 6 and DIMM 7.
5. The minimum requirement is memory in black slots DIMM 0 and DIMM 1.

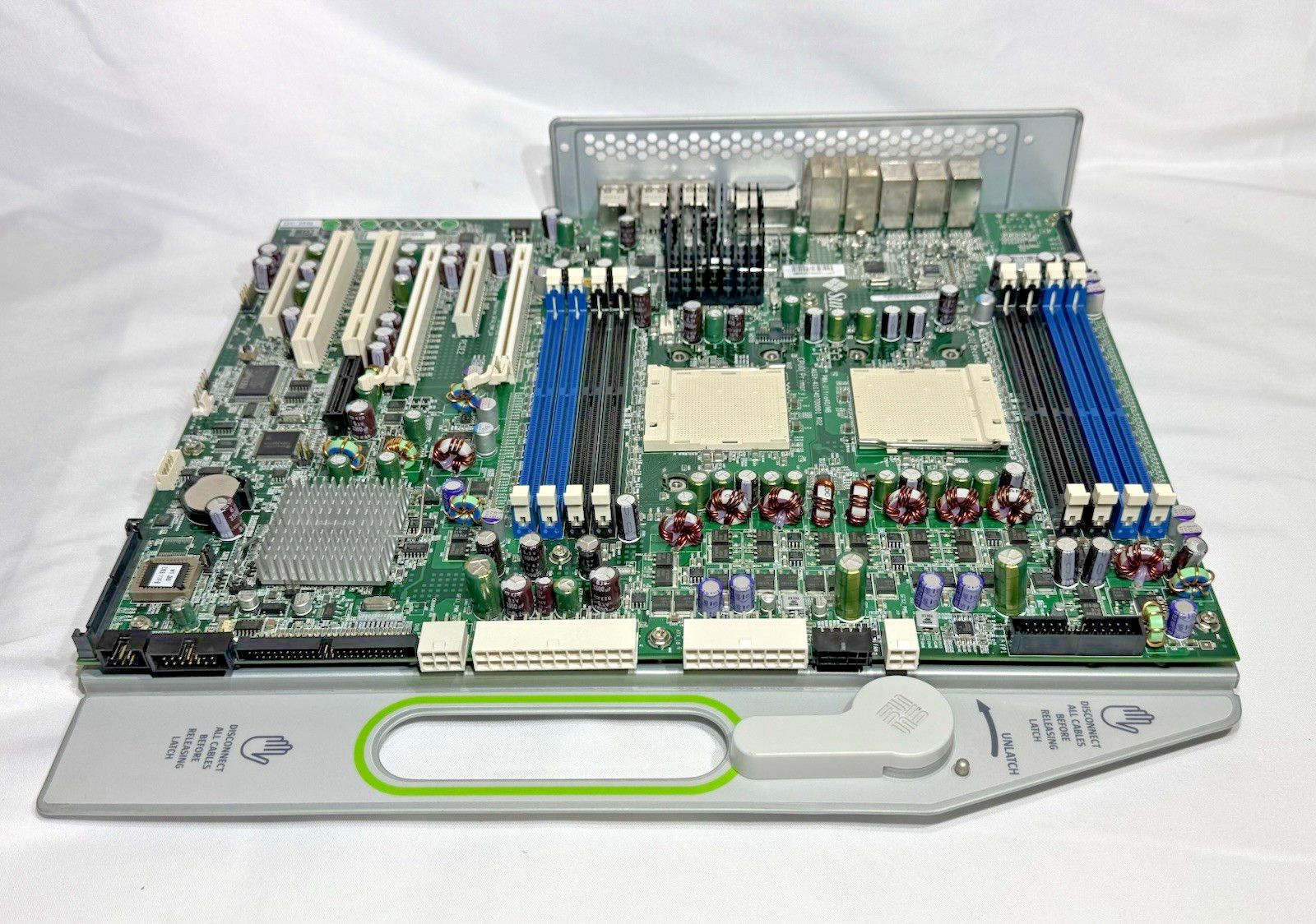

You are purchasing the Sun Microsystems 375-3343 system board pictured.Serial# 0328MSL-0625VD009N
