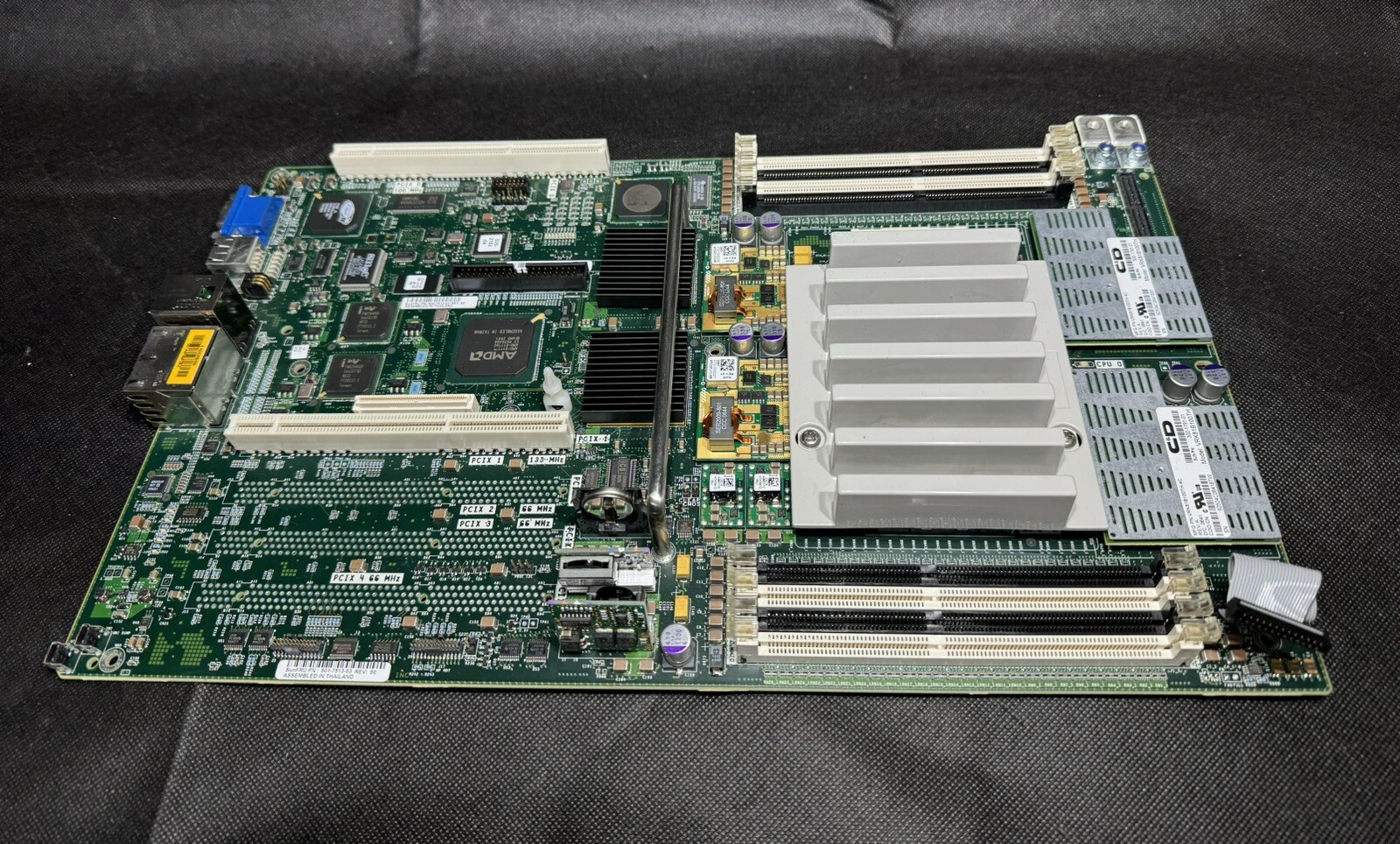

Sun Fire X4100 RoHs System Board Part# 501-7513Manufacturer: Sun MicrosystemsDescription: System Board for Sun Fire X4100 RoHSCondition: Clean, Pull. Guaranteed Working Specifications: - 2x Dual Core CPU, AMD Opteron CPU Sockets
- 8x DDR1 Memory Slots
- VGA External
- Serial Management
- Network Management
- Dual USB
- 4x RJ45 Ethernet
Supported Sun CPUs: - 371-1779 -2.8GHz Dual Core CPU, AMD Opteron 290, E6 Stepping, 95W, L
- 370-7711 -2.2GHz CPU, AMD Opteron 248, E4 Stepping
- 370-7962 -2.8GHz CPU, AMD Opteron 254, E4 Stepping
- 371-1776 -3.0GHz Single Core CPU AMD Opteron 256, E4 Stepping, 95W
- 370-7800 -2.2GHz Dual Core CPU, AMD Opteron 275, E6 Stepping, 95W
- 371-0839 -2.4GHz Dual Core CPU AMD Opteron 280, E6 Stepping, 95W
- 371-0856 -2.6GHz Dual Core CPU, AMD Opteron 285, E6 Stepping, 95W
- 310-0014 - CPU Heatsink Assembly
- CPU's and Heatsink Not included.
CPU NOTE: Single processor systems can be expanded with a second CPU of the identical model/speed only, e.g. AMD Opteron 1x248 system can only use another AMD Opteron 248 CPU; mixing with a 252 CPU is not supported.Supported Memory DIMMs: - X8021A-Z - 594-1676 = 1GB (2 x 371-0071 512MB PC3200 DDR400 ECC Registered DIMMs)
- X8022A-Z - 594-1677 = 2GB (2x 371-0072 1GB PC3200 DDR400 ECC Registered DIMMs)
- X8023A-Z - 594-1678 = 4GB (2x 371-0073 2GB PC3200 DDR400 ECC Registered DIMMs)
- X8024A-Z - 594-4108 = 8GB (2x 371-1460 4GB PC3200 DDR1-400 ECC Registered DIMMs)
- Memory Not Included.
MEMORY NOTE: - Memory must be installed in pairs. Pairs of different densities may be mixed.
- 4GB DIMMs (371-1460) require BIOS 36 included in Supplemental ISO Image 1.2.1. and Rear Top Cover EMI Gasket 343-0444-01.
- The entry-level single CPU standard configuration has only 2 memory slots that are usable; the other 4 memory slots only work if a second CPU is installed.
Manufacturer Motherboard Notes: - The minimum Solaris operating system is Solaris 10 3/05.
- The 501-7644 was added as a substitute for 501-7513 in August 2006. (WO_32933)
Guaranteed Working. Ships SAFE & Fast!!!  |
|
