TESTING & COSMETIC NOTES:
This is a USED WORKING item in GOOD cosmetic condition that IS THOROUGHLY TESTED and is GUARANTEED WORKING
This unit powers on and lights up. We were able to connect it to our PC. Hard drives are not included

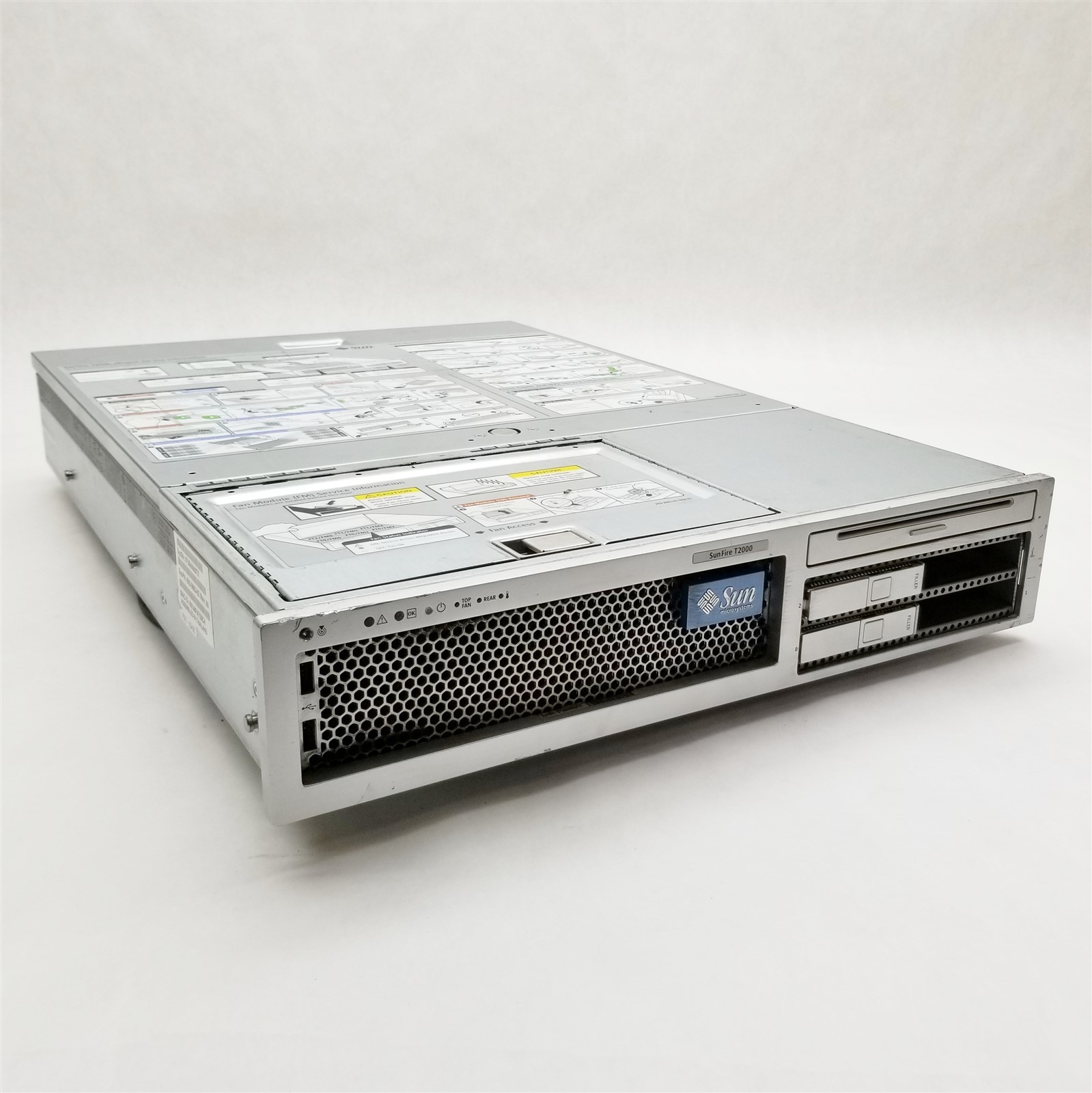

COMPONENTS INCLUDED IN THIS sale:• (1) - SUN MICROSYSTEMS T2000 8-CORE 1.2GHZ 8GB RAM NO HDD SERVER 602-3653-02
• (2) - POWER CORD
REPLACEMENT or MONEY BACK GUARANTEE:When you receive a Guaranteed item from OC Depot, it should perform as described. In the rare situation that this is not the case, we will send a replacement upon safe return of the original item within 30 days of receiving the item. If a replacement is not available we will honor the terms of our Money-Back Guarantee.
ADDITIONAL INFORMATION:ALOM POST 1.0
Dual Port Memory Test, PASSED.
TTY External - Internal Loopback Test
TTY External - Internal Loopback Test, PASSED.
TTYC - Internal Loopback Test
TTYC - Internal Loopback Test, PASSED.
TTYD - Internal Loopback Test
TTYD - Internal Loopback Test, PASSED.
Memory Data Lines Test
Memory Data Lines Test, PASSED.
Memory Address Lines Test
Slide address bits to test open address lines
Test for shorted address lines
Memory Address Lines Test, PASSED.
Boot Sector FLASH CRC Test
Boot Sector FLASH CRC Test, PASSED.
Return to Boot Monitor for Handshake
ALOM POST 1.0
Status = 00007fff
Returned from Boot Monitor and Handshake
Instruction CACHE Test
DISABLE the I-CACHE
ENABLE the I-CACHE
Verify I-CACHE Performance Increase
Instruction CACHE Test, PASSED.
Memory Cells Test
Counting UP: Write data: 00000000
Counting DOWN: Read - Verify - Write data: ffffffff
Counting UP: Read - Verify - Write data: 55aa33cc
Memory Cells Test, PASSED.
Data CACHE Test
Verify D-CACHE Performance Increase
D-CACHE Performance Increase I-CACHE Disabled
D-CACHE Performance Increase I-CACHE Enabled
Verify D-CACHE Memory
Data CACHE Test, PASSED.
Main Sectors FLASH CRC Test
Main Sectors FLASH CRC Test, PASSED.
Loading the runtime image... VxWorks running.
Starting Advanced Lights Out Manager CMT v1.7.11
Copyright (c) 2010, Oracle and/or its affiliates. All rights reserved.
Current mode: NORMAL
Attaching network interface lo0... done.
Attaching network interface motfec0.... done.
Booting from Segment 1
Oracle Advanced Lights Out Manager CMT v1.7.11
SC Alert: SC System booted.
Full VxDiag Tests
BASIC TOD TEST
Read the TOD Clock:
SC Alert: Preceding SC reset due to watchdog
SAT JAN 01 00:01:49 2000
Wait, 1 - 3 seconds
Read the TOD Clock: SAT JAN 01 00:01:51 2000
BASIC TOD TEST, PASSED
ETHERNET CPU LOOPBACK TEST
50 BYTE PACKET - a 0 in field of 1's.
50 BYTE PACKET - a 1 in field of 0's.
900 BYTE PACKET - pseudo-random data.
ETHERNET CPU LOOPBACK TEST, PASSED
Full VxDiag Tests - PASSED
Status summary - Status = 7FFF
VxDiag - - PASSED
POST - - PASSED
LOOPBACK - - PASSED
I2C - - PASSED
EPROM - - PASSED
FRU PROM - - PASSED
ETHERNET - - PASSED
MAIN CRC - - PASSED
BOOT CRC - - PASSED
TTYD - - PASSED
TTYC - - PASSED
MEMORY - - PASSED
MPC885 - - PASSED
sc> Connection being closed due to 60 seconds of inactivity
Copyright (c) 2010, Oracle and/or its affiliates. All rights reserved.
Oracle Advanced Lights Out Manager CMT v1.7.11
Enter #. to return to ALOM.
Copyright (c) 2010, Oracle and/or its affiliates. All rights reserved.
Oracle Advanced Lights Out Manager CMT v1.7.11
sc> showplatform
SUNW,Sun-Fire-T2000
Chassis Serial Number: 0735NNN0TX
Domain Status
------ ------
S0 OS Standby
sc> showfru -s MB
SEGMENT: SD
/ManR
/ManR/UNIX_Timestamp32: SAT SEP 01 06:16:06 2007
/ManR/Description: ASSY,Sun-Fire-T2000,CPU Board
/ManR/Manufacture Location: Sriracha,Chonburi,Thailand
/ManR/Sun Part No: 5017501
/ManR/Sun Serial No: PC247G
/ManR/Vendor: Celestica
/ManR/Initial HW Dash Level: 01
/ManR/Initial HW Rev Level: 51
/ManR/Shortname: T2000_MB
/SpecPartNo: 885-1032-01
sc>
sc> showenvironment
=============== Environmental Status ===============
System Temperatures (Temperatures in Celsius):
Sensor Status Temp LowHard LowSoft LowWarn HighWarn HighSoft HighHard
CPU temperature information cannot be displayed when System power is off.
PDB/T_AMB OK 20 -10 -5 0 45 50 55
System Indicator Status:
SYS/LOCATE SYS/SERVICE SYSCMP0
OFF OFF STANDBY BLINK
SYS/REAR_FAULT SYS/TEMP_FAULT SYS/TOP_FAN_FAULT
OFF OFF OFF
Disk Status information cannot be displayed when System power is off.
Fan Status information cannot be displayed when System power is off.
Voltage Rail Status information cannot be displayed when System power is off.
System Load information cannot be displayed when System power is off.
Current sensor information cannot be displayed when System power is off.
Power Supplies:
Supply Status Underspeed Overtemp Overvolt Undervolt Overcurrent
PS0 OK OFF OFF OFF OFF OFF
PS1 OK OFF OFF OFF OFF OFF
sc> showfaults -v
No failures found in System
sc> System power on has been requested via power button.
SC Alert: Host System has Reset
SC Alert: BATTERY at SC/BAT/V_BAT has exceeded low warning threshold.
sc> showenvironment
=============== Environmental Status ===============
System Temperatures (Temperatures in Celsius):
Sensor Status Temp LowHard LowSoft LowWarn HighWarn HighSoft HighHard
PDB/T_AMB OK 20 -10 -5 0 45 50 55
MB/T_AMB OK 23 -10 -5 0 50 55 60
MB/CMP0/T_TCORE OK 38 -10 -5 0 85 90 95
MB/CMP0/T_BCORE OK 38 -10 -5 0 85 90 95
IOBD/IOB/T_CORE OK 35 -10 -5 0 95 100 105
IOBD/T_AMB OK 24 -10 -5 0 52 57 62
System Indicator Status:
SYS/LOCATE SYS/SERVICE SYS/ACT
OFF ON SLOW BLINK
SYS/REAR_FAULT SYS/TEMP_FAULT SYS/TOP_FAN_FAULT
OFF OFF OFF
System Disks:
Disk Status Service OK2RM
HDD0 NOT PRESENT OFF OFF
HDD1 NOT PRESENT OFF OFF
HDD2 NOT PRESENT OFF OFF
HDD3 NOT PRESENT OFF OFF
Fans Status:
Fans (Speeds Revolution Per Minute):
Sensor Status Speed Warn Low
FT0/FM0 OK 3586 -- 1920
FT0/FM1 OK 3409 -- 1920
FT0/FM2 OK 3525 -- 1920
FT2 OK 2904 -- 1900
Voltage sensors (in Volts):
Sensor Status Voltage LowSoft LowWarn HighWarn HighSoft
MB/V_+1V5 OK 1.49 1.36 1.39 1.60 1.63
MB/V_VMEML OK 1.79 1.63 1.67 1.92 1.98
MB/V_VMEMR OK 1.79 1.63 1.67 1.92 1.98
MB/V_VTTL OK 0.87 0.81 0.83 0.96 0.99
MB/V_VTTR OK 0.87 0.81 0.83 0.96 0.99
MB/V_+3V3STBY OK 3.36 3.13 3.16 3.53 3.59
MB/V_VCORE OK 1.28 1.19 1.23 1.34 1.36
IOBD/V_+1V5 OK 1.48 1.36 1.39 1.60 1.63
IOBD/V_+1V8 OK 1.79 1.63 1.67 1.92 1.96
IOBD/V_+3V3MAIN OK 3.39 3.06 3.10 3.49 3.53
IOBD/V_+3V3STBY OK 3.34 3.13 3.16 3.53 3.59
IOBD/V_+1V OK 1.18 1.09 1.11 1.28 1.30
IOBD/V_+1V2 OK 1.16 1.09 1.11 1.28 1.30
IOBD/V_+5V OK 5.09 4.55 4.75 5.35 5.45
IOBD/V_-12V OK -12.11 -13.08 -12.84 -11.16 -10.92
IOBD/V_+12V OK 12.06 10.92 11.16 12.84 13.08
SC/BAT/V_BAT WARNING 0.49 -- 2.25 -- --
System Load (in amps):
Sensor Status Load Warn Shutdown
MB/I_VCORE OK 36.480 80.000 88.000
MB/I_VMEML OK 0.000 60.000 66.000
MB/I_VMEMR OK 0.540 60.000 66.000
----------------------
Current sensors:
----------------------
Sensor Status
----------------------
IOBD/I_USB0 OK
IOBD/I_USB1 OK
FIOBD/I_USB OK
Power Supplies:
Supply Status Underspeed Overtemp Overvolt Undervolt Overcurrent
PS0 OK OFF OFF OFF OFF OFF
PS1 OK OFF OFF OFF OFF OFF
sc> Please Click Here to Visit Our StoreSearchBy45 - 274868 | Loc: D11 | L: Mitchell |T: | PM: Nick | QTY: 0| Plan: 40/60 NET of FEES |30.00"x22.00"x7.00"57.00lbs |Start: $0.00 | BIN: $99.99 | |2026-02-06 ||11211
