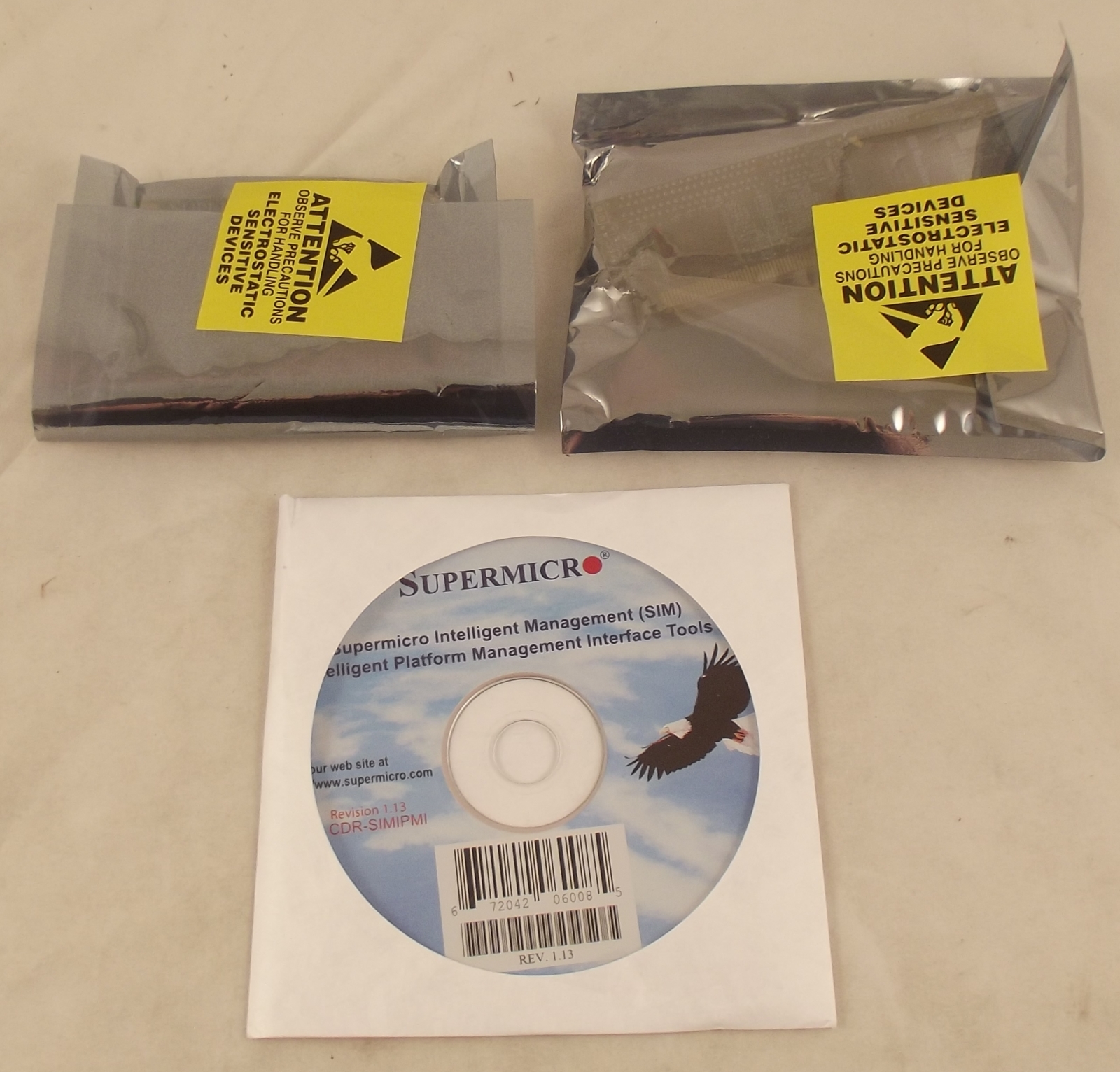

SuperMicro AOC-SIM2U-3B+ AOC-SIM1U-3D IPMI Remote Access
SMC Motherboards with AOC-SIM1U-3B SupportThe following Supermicro motherboards support the AOC-SIM1U-3B/3B+ add-on card:• The X7DBX/X7DBX-i Series• The X7DBP-8/X7DB-P-i Series
OverviewThe AOC-SIM1U-3B/AOC-SIM1U-3B+ add-on card is used in conjuction with itsAOC-SIM1U-3D daughter card. It offers a highly efficient, highly compatible andeasy-to-use IPMI card set that allows you to take advantage of the baseboardmanagement controller installed on a server motherboard (BMC). The BMC andIPMIView, an IPMI-compliant management application software stored in a PC, can beused to provide serial links between the main processor and other system components,allowing for network interfacing via remote access. With an independent RaritanKIRA100 processor built-in, the AOC-SIM1U-3B IPMI card set provides you with asolution to ease the complex and expensive systems, allowing an administrator toaccess, monitor, diagnose and manage network interfacing anywhere, anytime.IPMI Version 2.0The AOC-SIM1U-3B IPMI card set supports the functionality of IPMI Version 2.0. Thekey features include the following:• Supports IPMI 2.0 over LAN• Supports Serial over LAN• Supports KVM over LAN (For AOC-SIM1U-3B+ only)• Supports Virtual Media over LAN• Supports LAN alerting-SNMP trap• Supports an Event Log• Offers OS (Operating System) Independency
Remote Hardware Health MonitoringThe AOC-SIM1U-3B IPMI card set provides remote hardware health monitoring viaIPMI. Key features include the following:• Temperature monitoring• Fan speed monitoring• Voltage monitoring• Power status monitoring• Chassis intrusion monitoring• Remote power control to power-on, power-off or reboot a system• Remote access to text-based, graphic-based system information, including BIOSconfigurations and OS operation information (KVM)• Remote management of utility/software applicationsNetwork Management SecurityThe AOC-SIM1U-3B IPMI card set provides network management security via remoteaccess/console redirection. Key features include:• User authentication enhancement• Encryption support enhancement, allowing for password configuration security toprotect sensitive data transferring via Serial over LAN• Supports the following Management tools: IPMIView, CLI (Command Line Interface)• Supports RMCP and protocols
Product FeaturesThe AOC-SIM1U-3B/AOC-SIM1U-3B+ series features the following:• Slim size (4.4" W x 1.3" H) (111.76 mm W x 25.41 mm H)• Supports IPMI over LAN• Supports 1U and aboveThe AOC-SIM1U-3D daughter card features the following:• Low profile (3.2” W x 2.4” H) (81.28 mm W x 60.96 mm H)• Supports IPMI with a 3rd data dedicated LAN• Supports a 3rd DATA LAN
