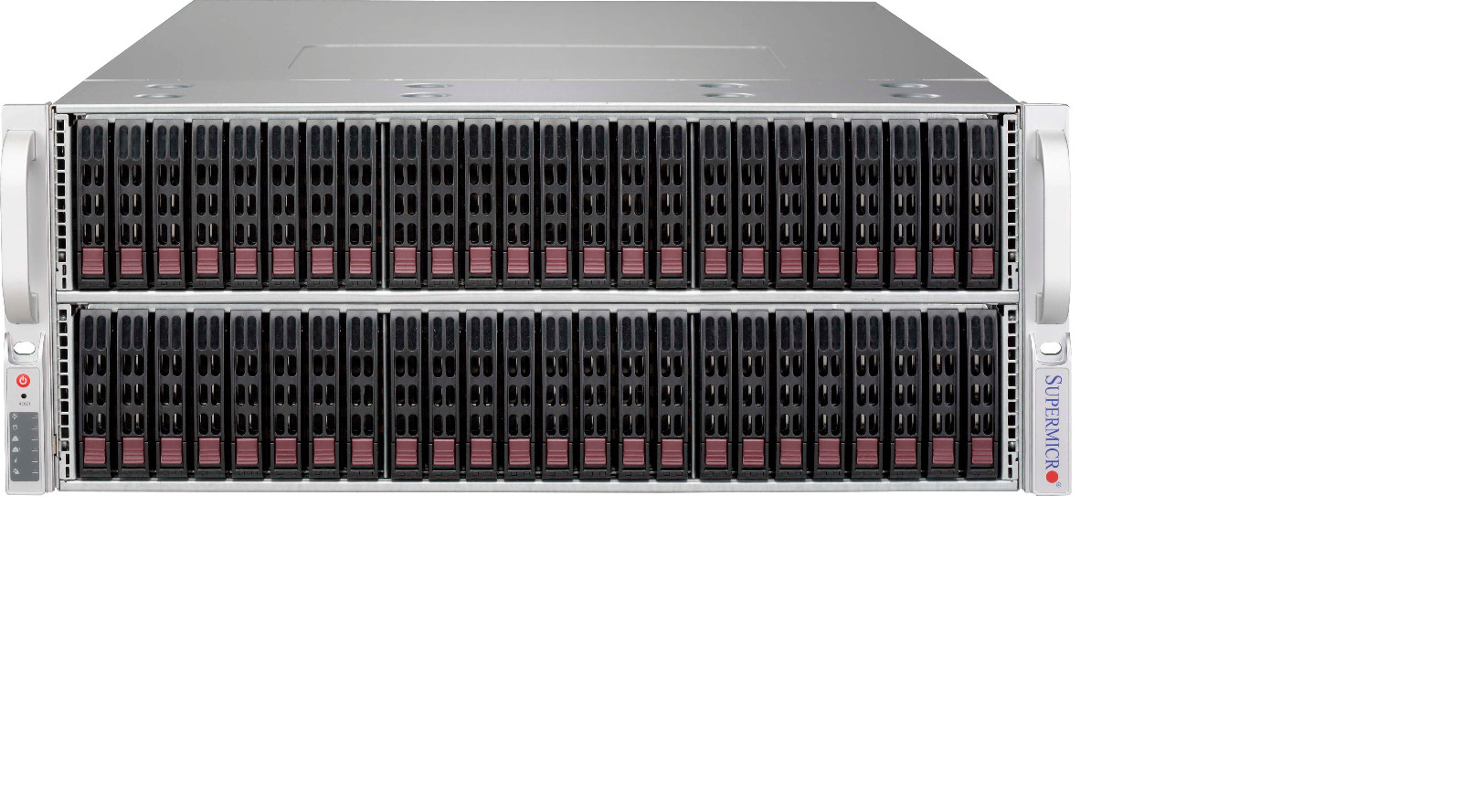

SuperMicro CSE-417BE1C-R1K23JBOD 4U JBOD Storage Server Chassis
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
SuperMicro CSE-417BE1C-R1K23JBOD 4U JBOD Storage Server Chassis
Price: US $4999.99
Key Features
  1. Extremely high-density 4U storage server chassis (saves 2U space)
  2. Maximum drives per enclosure: 72x (48 front + 24 rear) 2.5" hot-swap HDD bays for server chassis
  3. SAS3 (12Gbps) single expander backplane
  4. 1200W Titanium Level (1+1) redundant power supplies with PMBus
  5. Optimized thermal solution with 100% redundant cooling design
  6. Qualified SAS HBA / controller:
    AOC-SAS3-9300-8E - 12Gb/s 2-external ports SAS3 HBA
    AOC-SAS3-9380-8E - 12Gb/s 2-external ports SAS3 RAID Controller

Dimensions Height
  • 7" (178 mm)
Width
  • 17.2" (437 mm)
Depth
  • 27.5" (699 mm)
Gross Weight
  • 80 lbs (36.29 kg)
Packaging (W x H x L)
  • 27.2" (691 mm) x 21" (533 mm) x 39.6" (1006 mm)
Available Color
  • Black
