Key Features - Corporate Database
- Database Processing & Storage
- Enterprise Server
- HPC, Data Center
- iSCSI SAN
1. Dual Socket P (LGA 3647) support
2nd Gen Intel® Xeon® Scalable
processors (Cascade Lake/Skylake)‡ 2. 16 DIMMs; up to 4TB 3DS ECC
DDR4-2933MHz† RDIMM/LRDIMM,
Supports Intel® Optane™ DCPMM†† 3. 3 PCI-E 3.0 x16, 4 PCI-E 3.0 x8
(slot 2 & 3 occupied by controller

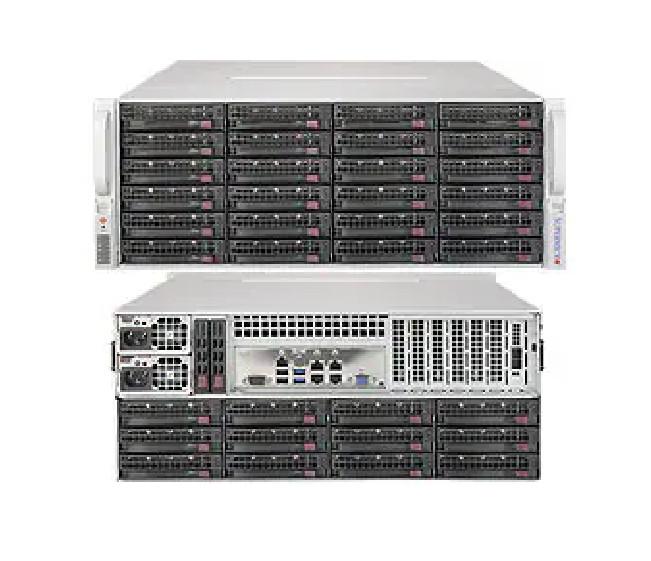

and JBOD expansion port) 4. 36 Hot-swap 3.5" SAS3/SATA3 drive
bays including 4 optional NVMe
drives; 2 hot-swap 2.5" SATA3
drive bays (rear), 2 M.2 NVMe,
Expander based backplane 5. Broadcom 3108 SAS3 AOC 6. 2x 10GBase-T LAN ports with
Intel X722 + PHY Intel X557 7. Server remote management: IPMI 2.0
/ KVM over LAN / Media over LAN 8. 7x 8cm high-performance PWM fans 9. 1200W Redundant Power Supplies
Titanium Level (96%)
Dimensions
Width

• 17.2" (437mm)

Height

• 7" (178mm)

Depth

• 27.5" (699mm)

Weight

• Gross Weight: 102.5 lbs (46.4 kg)
• Net Weight: 65.5 lbs (29.7 kg)

Parts List - (Items Included) Part Number
Qty
Description
Motherboard / Chassis MBD-X11DPH-T
CSE-847BE1C4-R1K23LPB 1
1 Super X11DPH-T Motherboard
4U Chassis Add-on Card / Module AOC-S3108L-H8IR 1 LSI 3108 based SAS3 RAID, 12Gb, 8 internal ports, 240HDD - RAID 0,1,10,5,6,50,60, Gen3 x8 Standard Low Profile Add-on Card / Module AOM-SAS3-8I8E-LP 1 8-port Mini SAS HD Int-to-Ext cable adapter w/ LP bracket,HF,RoHS/REACH Backplane BPN-SAS3-826EL1-N4 1 12-port 2U SAS3 12Gbps single-expander backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD and 4x NVMe/SAS3/SATA3 storage devices Backplane BPN-SAS3-846EL1 1 24-port 4U SAS3 12Gbps single-expander backplane, support up to 24x 3.5-inch SAS3/SATA3 HDD/SSD Cable 1 CBL-0296L 3 4 pin to 4 pin fan extension cord, for PWM fan. 23cm. 24AWG Cable 2 CBL-SAST-0531-01 4 MINI SAS HD,12G,INT,80CM,30AWG Cable 3 CBL-SAST-0532 2 MINI SAS HD,12G,INT,50CM,30AWG Parts MCP-220-82616-0N 1 12G 2.5x2 Drive Kit w/ Status LED(216B/826B/417B/846X/847B) Parts MCP-260-00042-0N 1 STD I/O shield for X9 socket R server MB with Gasket. Heatsink / Retention SNK-P0068PS 1 2U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism Heatsink / Retention SNK-P0068PSC 1 2U Passive CPU Heat Sink with a Side Air Channel for X11 Purley Platform Equipped with a Narrow Retention Mechanism Power Supply PWS-1K23A-1R 2 AC-DC 1200W, Titanium Level, Redundancy, 1U, PMBUS 1.2, +12V/+5Vsb, 360x76x40 mm,HF,RoHS/REACH FAN 1 FAN-0158L4 7 80x80x38 mm, 10.5K RPM, Optional Middle Cooling Fan for X10 2U Ultra and HFT Series Servers,RoHS/REACH
