Product SKUs
SYS-E300-9A-8CN10P

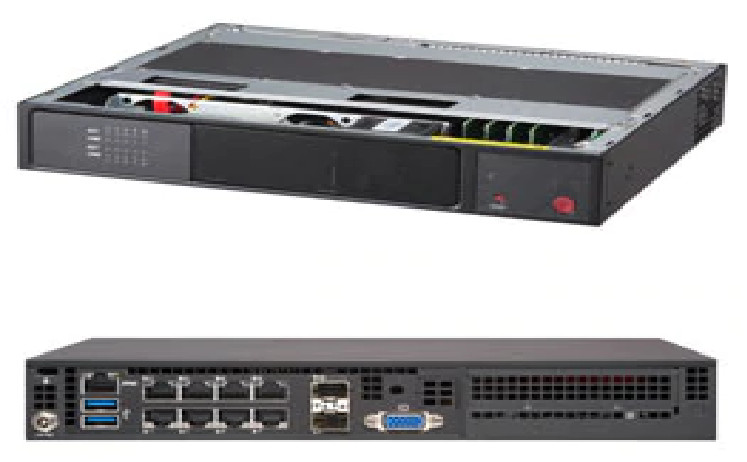

• SuperServer E300-9A-8CN10P (Black)

MotherboardSuper A2SDV-8C-LN10PF Processor/Cache
CPU

• Intel® Atom® processor C3758
• 8 Cores, 2.2GHz
• CPU TDP support 25W
• FCBGA 1310

System Memory
Memory Capacity

• 4x DDR4 DIMM sockets
• Supports up to 256GB DDR4 ECC RDIMM
• Supports up to 64GB DDR4 ECC/non-ECC UDIMM

Memory Type

• 2400/2133/1866MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM

DIMM Sizes

• 64GB, 32GB, 16GB, 8GB, 4GB

Memory Voltage

• 1.2 V

Error Detection

• Corrects single-bit errors
• Detects double-bit errors
  (using ECC memory)

On-Board Devices
Chipset

• System on Chip

SATA

• SoC controller for 4 SATA3 (6Gbps) ports

Network Controllers

• 8x 1GbE LAN ports via Intel C3000 SoC
• 2x 1G SFP via Intel I210-IS

Graphics

• Aspeed AST2400 BMC

Input / Output
SATA

• 2 SATA3 (6Gbps) ports

LAN

• 8 RJ45 Gigabit Ethernet LAN ports
• 2 1G SFP LAN ports
• 1 RJ45 Dedicated IPMI LAN port

USB

• 2 USB 3.0 ports (rear)

Display

• 1 VGA port

TPM

• TPM 2.0 header

Chassis
Form Factor

• Mini-1U

Model

• CSE-E300-LED+

Dimensions
Width

• 10" (254mm) / 15" (381mm) - pkg.

Height

• 1.7" (43mm) / 10.87" (276mm) - pkg.

Depth

• 8.9" (226mm) / 5.59" (142mm) - pkg.

Weight

• Gross Weight: 7.5 lbs (3.4 kg)
• Net Weight: 3.45 lbs (1.56 kg)

Available Colors

• Black

Front Panel
Buttons

• Power On/Off button

LEDs

• Power LED (Hard drive activity LED)

Expansion Slots
PCI-Express

• 1 PCI-E 3.0 x4 AOC slot (LP) when SSD is not populated

Drive Bays / Storage
Internal

• 1 Fixed 2.5" drive bay when AOC area is not occupied

M.2

• 2 M.2 Key
• Interface: PCI-E 3.0 x2
• Form Factor: B Key 3042/2280
• Form Factor: M Key 2242/2280

System Cooling
Fans

• 1x 40mm chassis fan

Power Supply
84W DC power adapterSystem BIOS
BIOS Type

• AMI UEFI

BIOS Features

• UEFI 2.4
• SMBIOS class="desc">
• OOB
• IPMI 2.0
• KVM with dedicated LAN
• NMI
• SuperDoctor® 5
• Watch Dog

Power Configurations

• ACPI / APM Power Management
• CPU thermal trip support for processor protection
• Power-on mode for AC power recovery

• Operating Temperature:
  0°C to 40°C (32°F to 104°F)
• Non-operating Temperature:
  -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity:
  8% to 90% (non-condensing)
• Non-operating Relative Humidity:
  5% to 95% (non-condensing)

Operating Environment / Compliance
RoHS

• RoHS Compliant

Environmental Spec.
