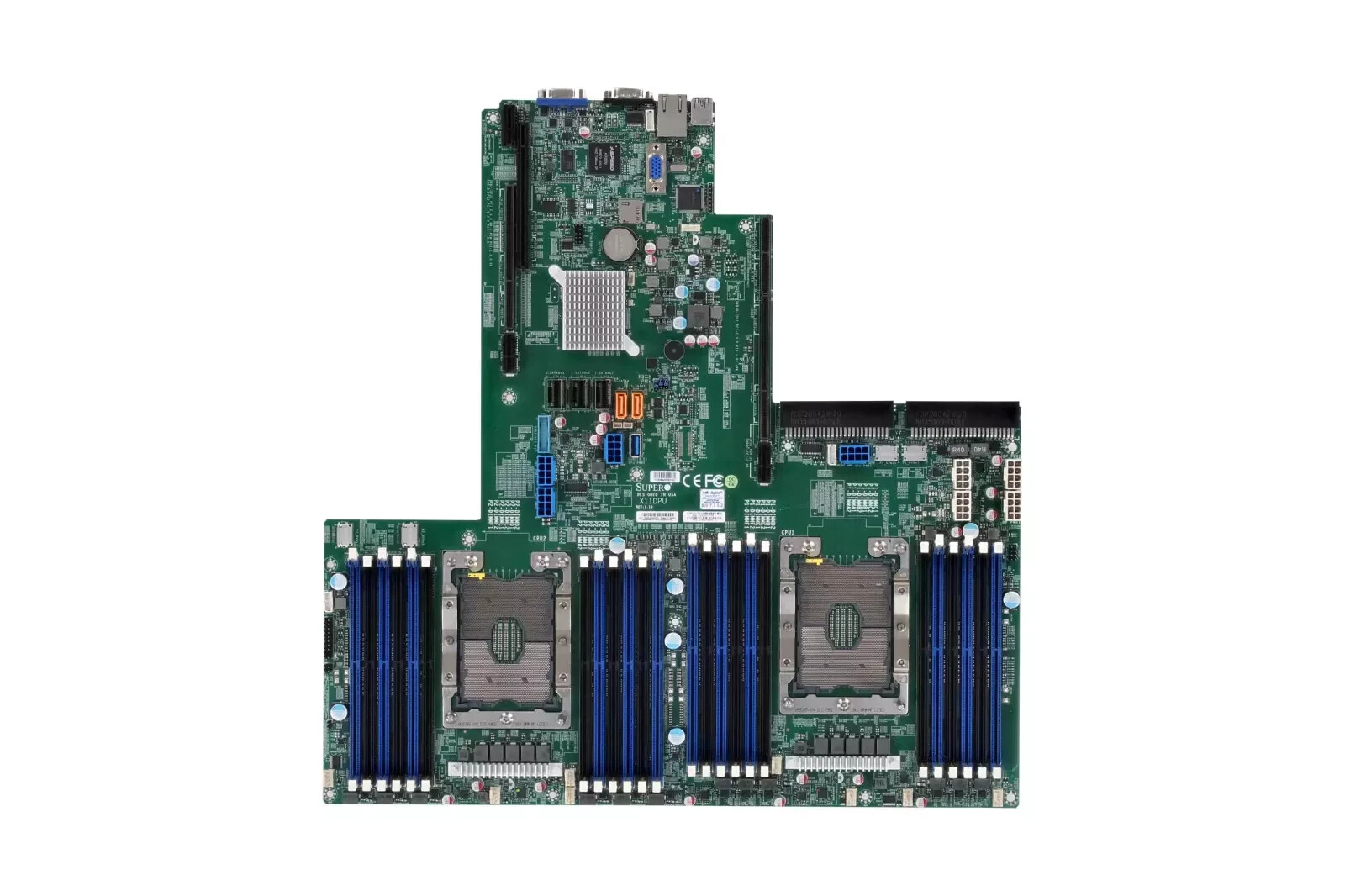

SuperMicro SuperServer X11DPU Rev 1.10 2x 2nd Gen Scalable CPU LGA3647 24-DIMM Motherboard
New Pull From New Server2 Year Warranty
Includes:

• 1 x SuperMicro SuperServer X11DPU rev 1.10 2x 2nd Gen Scalable CPU LGA3647 24-DIMM SKUsMBD-X11DPUPhysical StatsForm Factor
  • Proprietary Ultra
  Dimension
  • 17" x 16.8" (43.18cm x 42.67cm)
  ProcessorCPU
  • 2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors
  • Dual Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 205W TDP, Dual UPI up to 10.4 GT/s
  Core
  • Up to 28 cores / 38.5MB Cache
  System MemoryMemory Capacity
  • 24 DIMM slots
  • Up to 6TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 6TB 3DS ECC RDIMM, DDR4-2933MT/s
  • Up to 6TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake only).
  Memory Type
  • 2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
  DIMM Sizes
  • LRDIMM: 128GB
  • RDIMM: 64GB, 128GB
  Memory Voltage
  • 1.2V
  Error Detection
  • Corrects single-bit errors
  On-Board DevicesChipset
  • Intel C621
  SATA
  • Intel C621 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  IPMI
  • ASPEED AST2500
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • Support for Intelligent Platform Management Interface v.2.0
  Graphics
  • 1 ASPEED AST2500 BMC port(s)
  Network Controllers
  • Networking options provided via Ultra Riser
  Input / OutputSATA
  • 14 SATA3 (6Gbps) port(s)
  USB
  • 3 USB 3.2 Gen1 port(s) (2 via header; 1 type A)
  • 2 USB 3.0 port(s) (2 rear)
  Video Output
  • 2 VGA D-Sub Connector port(s)
  Serial Port
  • 1 COM Port(s) (1 rear)
  DOM
  • 2 SuperDOM (Disk on Module) port with build power
  TPM
  • 1 TPM Header
  Expansion SlotsPCIe
  • 1 PCIe 3.0 x32 Right Riser Slot,
  • 1 PCIe 3.0 x8 Right Riser Slot,
  • 1 PCIe 3.0 x40 Ultra Riser Slot
  System BIOSBIOS Type
  • 32MB AMI SPI Flash ROM
  ManagementSoftware
  • SuperDoctor 5, NMI, SUM, KVM with dedicated LAN, SPM, Intel Node Manager, SSM, IPMI2.0
  System Management Software
  • SuperDoctor 5, IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support, IPMICFG, IPMIView for Linux/Windows, SMCIPMITool, SSM, SUM, SPM
  Power Configurations
  • ACPI Power Management
  PC Health MonitoringVoltage
  • VBAT, Supports system management utility, HT, Chassis intrusion header, +5V standby, +5V, +3.3V, +12V, +1.8V, 8 -fan status, 5+1 Phase-switching voltage regulator
  Temperature
  • Thermal Control for 8 Fan Connectors
  FAN
  • 8x 4-pin fan headers (up to 8 fans)
  • Status monitoring for speed control
  • Pulse Width Modulated (PWM) fan connectors
  • 8x fans with tachometer monitoring
  Other Features
  • RoHS, Node Manager Support, CPU thermal trip support for processor protection, Chassis intrusion detection, SDDC, 4x 8-pin GPU power connectors
  Operating EnvironmentOperating Temperature Range
  • 10°C - 35°C (50°F - 95°F)
  Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
  Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
  Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
