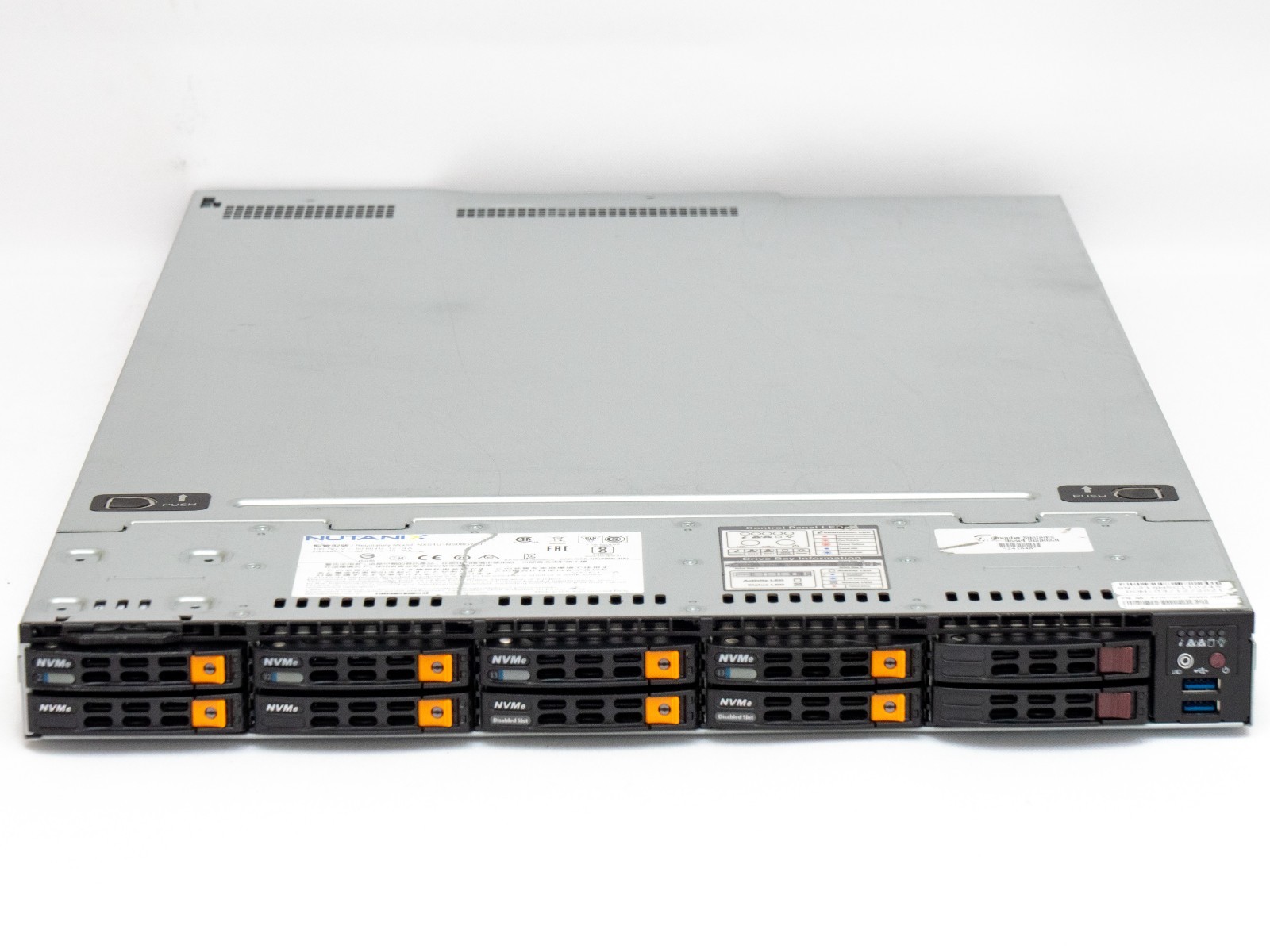

In good condition! There is some wear on the chassis from use. Note that this is a Nutanix OEM system with a different BIOS logo. BMC is standard Supermicro. Has been updated to support 62xxR CPUs. Additionally, in order to use all 10 bays with U.2 drives, you will need to add two OCuLink to U.2 cables to the system. It is currently wired for 8 drives. No CPUs, RAM, drives, rails, or expansion cards are included. Please ensure hardware compatibility prior to purchase. Photos are of actual item. Serial number is logged and recorded on all sales.
Payment is required within 72 hours. Local pickup available in Phoenix. Please don't hesitate to contact us if you have any question. SKUsSYS-1029U-TN10RT

• SuperServer 1029U-TN10RT (Black)

Motherboard
Super X11DPUProcessorCPU

• Dual Socket P (LGA 3647)
• 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡,
  Dual UPI up to 10.4GT/s
• Support CPU TDP 70-205W

Cores

• Up to 28 Cores

Note‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R).

Extended thermal solutions may be required to support CPUs higher than 165W TDP, please contact Supermicro Technical Support for additional information.System MemoryMemory Capacity

• 24 DIMM slots
• Up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM
• Supports Intel® Optane™ DCPMM††

Memory Type

• 2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
• 2666 ECC DDR4 NVDIMM

Note† 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
†† Cascade Lake only. Contact your Supermicro sales rep for more info.On-Board DevicesChipset

• Intel® C621 chipset

SATA

• SATA3 (6Gbps); RAID 0, 1, 5, 10

Network Connectivity

• 2 10GBase-T ports via AOC-URN6-i2XT
• Intel® X540 Dual Port 10GBase-T
• Virtual Machine Device Queues reduce I/O overhead
• Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Graphics

• ASPEED AST2500 BMC

Input / OutputNVMe

• 6 NVMe ports (NVMe from CPU 1)
• 4 NVMe Hybrid ports with optional SAS3 (NVMe from CPU 2)

LAN

• 2 RJ45 10GBase-T ports
• 1 RJ45 Dedicated IPMI LAN port

USB

• 5 USB 3.0 ports
  (2 rear, 2 front, 1 Type A)

Video

• 2 VGA ports (1 rear, 1 onboard)

Serial Port

• 1 Serial header

DOM

• 2 SuperDOM (Disk on Module) ports

System BIOSBIOS Type

• AMI 32Mb SPI Flash ROM

ManagementSoftware

• Intel® Node Manager
• Redfish API
• IPMI 2.0
• KVM with dedicated LAN
• NMI
• SSM, SPM, SUM
• SuperDoctor® 5

Power Configurations

• ACPI Power Management

PC Health MonitoringCPU

• Monitors for CPU Cores, Chipset Voltages, Memory.
• 4+1 Phase-switching voltage regulator

FAN

• Fans with tachometer monitoring
• Status monitor for speed control
• Pulse Width Modulated (PWM) fan connectors

Temperature

• Monitoring for CPU and chassis environment
• Thermal Control for fan connectors

ChassisForm Factor

• 1U Rackmount

Model

• 1.7" (43mm)

Width

• 17.2" (437mm)

Depth

• 28.5" (724mm)

Gross Weight

• 48 lbs (21.8 kg)

Available Color

• Black

Front PanelButtons

• Power On/Off button
• System UID button

LEDs

• Power LED
• Hard drive activity LED
• Network activity LEDs
• UID LED

Expansion SlotsPCI-Express

• 2 PCI-E 3.0 x16 slots (Full-height, 10.5"L)

  (Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)

Drive Bays / StorageHot-swap

• 10 Hot-swap 2.5" drive bays
• 10 NVMe (4 hybrid ports for optional SAS3 via AOC)

M.2

• 1 M.2 PCI-E 3.0 x4 M-Key NVMe (2240/2260/2280/22110) or 1 M.2 M-Key SATA3 (2240/2260/2280/22110) via optional parts
• 2 M.2 PCI-E 3.0 x4 M-Key NVMe (2260/2280/22110) via optional add-on card AOC-SLG3-2M2

System CoolingFans

• 8 Heavy duty fans with optimal fan speed control

Air Shroud

• 1 Air Shroud

Power Supply1000W Redundant Power Supplies with PMBusTotal Output Power

• 800W: 100 – 127Vac
• 1000W: 200 – 240Vac
• 1000W: 200 – 240Vdc (for CCC only)

Dimension
(W x H x L)

• 73.5 x 40 x 203 mm

Input

• 100-127Vac / 9.8 - 7A / 50-60Hz
• 200-240Vac / 7 - 5A / 50-60Hz
• 200-240Vdc / 7 - 5A (for CCC only)

+12V

• Max: 66.7A / Min: 0A (100-127Vac)
• Max: 83A / Min: 0A (200-240Vac)
• Max: 83A / Min: 0A (200-240Vdc)

12Vsb

• Max: 2.1A / Min: 0A

Output Type

• 25 Pairs Gold Finger Connector

Certification Titanium Level
[ Test Report ]Operating EnvironmentRoHS

• RoHS Compliant

Environmental Spec.

• Operating Temperature:
  10°C ~ 35°C (50°F ~ 95°F)
• Non-operating Temperature:
  -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity:
  8% to 90% (non-condensing)
• Non-operating Relative Humidity:
  5% to 95% (non-condensing)
