Physical Stats
Form Factor

• ATX

Dimensions

• 12" x 9.6" (30.48cm x 24.38cm)

Processor/Cache
CPU

• Intel® 6th/7th Generation Core™ i3 series, Intel® 6th/7th Generation Core™ i5 series, Intel® 6th/7th Generation Core™ i7 series, Intel® Xeon® processor E3-1200 v6/v5.
• Socket H4 (LGA 1151) supported, CPU TDP support Up to 95W TDP
• A graphic integrated CPU is needed to have on-board video from DVI and DP ports. Examples: E3-1235L v5, E3-1275 v5

Note

• BIOS version 2.0 or above is required to support 7th Generation Intel® Core™ i3 Processors and Intel® Xeon® Processor E3-1200 v6 series

System Memory
Memory Capacity

• Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2400MHz, in 4 DIMM slots
• 4x 288-pin DDR4 DIMM slots, Up to 64GB DDR4 ECC UDIMM

Memory Type

• 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs

DIMM Sizes

• 4GB, 8GB, 16GB

Memory Voltage

• 1.2V

Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset

• Intel® C236

SATA

• Intel® C236 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
• + 1 PCI-E M.2(PCI-E x4, 2242/2260/2280)(No Raid support)

IPMI

• OOB Bios refresh function is not supported

Network Controllers

• Single LAN with Intel® Ethernet Controller I210-AT
  (Share with IPMI)
  Single LAN with Intel® PHY I219LM LAN controller

Audio

• ALC 888S HD Audio

Graphics

• Aspeed AST2400 BMC
• ***VGA is for IPMI only***

Input / Output
USB

• 6 USB 2.0 ports (2 rear + 4 via headers)
• 6 USB 3.1 Gen1 ports (2 Rears Type A, 4 via headers)
• 2 USB 3.1 Gen2 ports , 2 Type A)

Video Output

• 1 DVI - D port, 1 DP (DisplayPort) port, 1 HDMI port, 1 VGA port,
• ***VGA is for IPMI only***

Serial Port / Header

• 2 COM Ports (2 headers)


TPM

• 1 TPM Header

Expansion Slots
PCI-E

• 2 PCI-E 3.0 x16,
• 2 PCI-E 3.0 x12 - 5V PCI 32bit
• ***2 PCI-E x16 slots are running at x16/NA or x8/x8 ***

M.2

• M.2 Interface: 1 PCI-E 3.0 x4
• Form Factor: 2242/2260/2280
• Key: M-Key

System BIOS
BIOS Type

• AMI UEFI

BIOS Features

• Plug and Play (PnP)
• DMI 2.3
• PCI 3.0
• ACPI 5.0
• USB Keyboard support
• Hardware BIOS Virus protection
• SMBIOS 3.0
• UEFI 2.3.1
• RTC (Real Time Clock) Wakeup

Management
Software

• IPMI2.0, SPM, SuperDoctor® 5, Watchdog

Power Configurations

• ACPI Power Management
• Keyboard Wakeup from Soft-Off
• CPU Fan auto-off in sleep mode
• Power-on mode for AC power recovery

PC Health Monitoring
Voltage

• +12V, +3.3V, +5V, +5V standby, Chassis intrusion header, Monitors CPU voltages, VBAT

FAN

• 5x 4-pin fan headers (up to 5 fans), Fan speed control, Overheat LED indication

Temperature

• CPU thermal trip support, I2C temperature sensing logic, PECI, Thermal Monitor 2 (TM2) support

LED

• CPU / System Overheat LED, Suspend static indicator LED, UID/Remote UID

Other Features

• 8-pin 12v DC power connector, ACPI power management, ATX Power connector, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Intel Smart Response Technology, WOL

• 0°C ~ 50°C (32°F ~ 122°F)

Operating Environment
Operating Temperature Range
Product SKUs

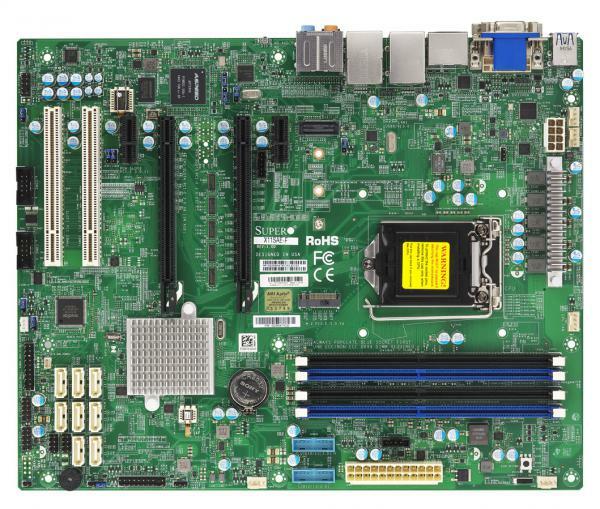

MBD-X11SAE-F

• X11SAE-F
