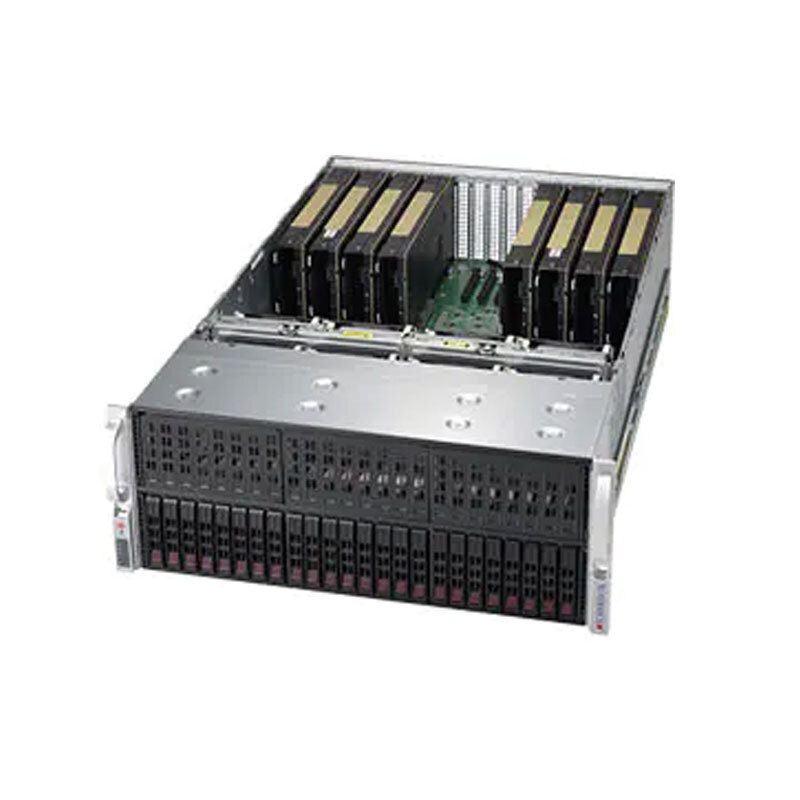

SuperServer 4029GP-TRT2

Includes: 2000W power supply*4 front bays*24/motherboard model: SuperMicro X11DPG-OT-CPU,adapter board model 32*8 (256G)

Hard Disk: 480G SSD *1

Video card: P40 24GB*8

SuperServer style="box-sizing: border-box; line-height: 0; margin: 0px; display: block; content: "";"/>Super class="desc" style="box-sizing: border-box; margin: 0px; padding: 0px; font-weight: bold; color: rgb(93, 139, 96) !important;">

Dual Socket P (LGA 3647)

2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡,
3 UPI up to 10.4GT/s

Support CPU TDP 70-205W

Cores

• Up to 28 Cores

Note‡BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)

GPU
Supported GPUs

• 10 Double-Width/Single-Width PCI-E 3.0 x16 Card (Full Height Full Length)
• NVIDIA V100, P40, T4, Quadro, RTX
• Supports both active and passive cooled GPUs
• Compatible GPU list

CPU-GPU Interconnect

• PCI-E Gen 3 x16 Switch Single-Root
• PCIe Root Architecture Chart

GPU-GPU Interconnect

• PCI-E, NVIDIA® NVLink™ Bridge (Optional)

System Memory
Memory Capacity

• 24 DIMM slots
• Up to 6TB 3DS ECC DDR4-2933MHz†RDIMM/LRDIMM
• Supports Intel® Optane™ DCPMM††

Memory Type

• 2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM

Note†2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
††Cascade Lake only. Contact your Supermicro sales rep for more info.

On-Board Devices
Chipset

• Intel® C622 chipset

SATA

• SATA3 (6Gbps) with RAID 0, 1, 5, 10

Network Controllers

• Dual Port 10GbE from C622

IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Graphics

• ASPEED AST2500 BMC

Input / Output
SATA

• 8 SATA3 (6Gbps) ports

LAN

• 2 RJ45 10GBase-T LAN ports
• 1 RJ45 Dedicated IPMI LAN port

USB

• 4 USB 3.0 ports (rear)

Video

• 1 VGA Connector

COM Port

• 1 COM port (header)

System BIOS
BIOS Type

• AMI 32Mb SPI Flash class="desc" style="box-sizing: border-box; margin: 0px; padding: 0px; font-weight: bold; color: rgb(93, 139, 96) !important;">
• Intel® Node Manager
• IPMI 2.0
• KVM with dedicated LAN
• SSM,SPM,SUM
• SuperDoctor® 5
• Monitors for CPU Cores, Chipset Voltages, Memory.
• 4+1 Phase-switching voltage regulator

FAN

• Fans with tachometer monitoring
• Status monitor for speed control
• Pulse Width Modulated (PWM) fan connectors

Temperature

• Monitoring for CPU and chassis environment
• Thermal Control for fan Terms
