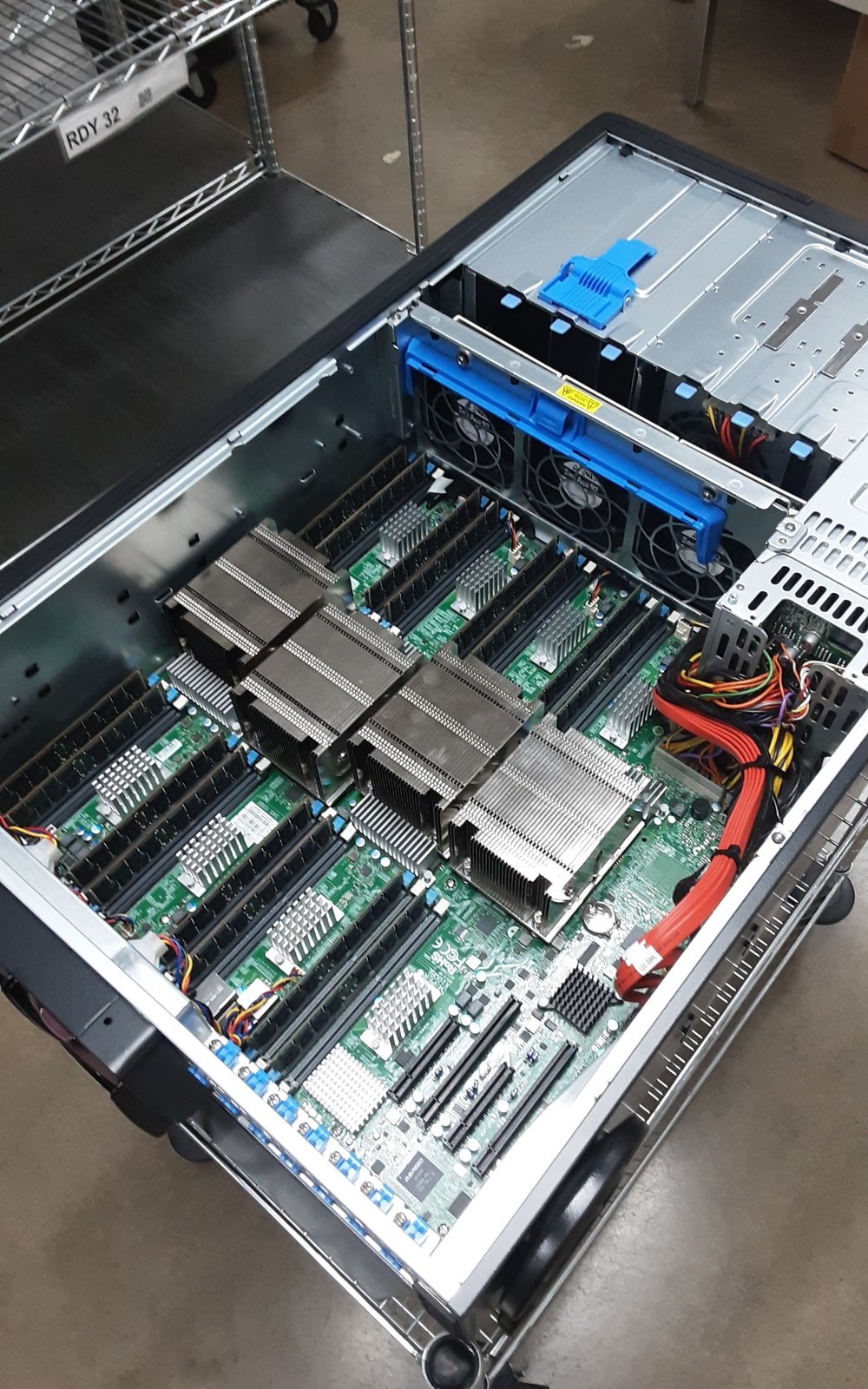

Add to favorite sellers Our Store Item Information SuperServer 8048B-TR3F, 4U/Tower, Intel C602J, 5x SATA, 32x DDR3, Dual 1Gb Ethernet, 1400W Rdt PSU

Key Features:

• Quad socket R1 (LGA 2011) supports
  Intel® Xeon® processor E7-8800 v3 /
  E7-4800 v3 family (18-Core), w/ QPI
  up to 9.6 GT/s; E7-8800 v2 /
  4800 v2 family (15-Core),
  w/ QPI up to 8 GT/s
• Up to 2TB DDR3 (64GB LRDIMM), up to
  1600MHz; 32x DIMM slots
• 2x PCI-E 3.0 x16 FH slot;
  2x PCI-E 3.0 x8 FH slot
• Intel® i350 Dual port GbE LAN
• I/O ports: 2x GbE LAN, 1x Dedicated
  LAN for IPMI Remote Management,
  1x VGA, 1x COM port, 3x USB 2.0
• 5x 3.5" Hot-swap SATA Drive Bays
• 3x 9cm + 3x 8cm Heavy Duty fans with
  speed control
• 1400W Redundant Digital PS
  Platinum Level (95%)

Specifications

Product SKUs SYS-8048B-TR3F

• SuperServer 8048B-TR3F (Black)

Motherboard Super X10QBL Processor/Cache CPU

• Intel® Xeon® processor E7-8800 v3* / E7-4800 v3* / E7-8800 v2 / E7-4800 v2 family (up to 18 Cores and 165W TDP)
• Quad Socket R1 (LGA 2011)

Cache

• Up to 45 MB

System Bus

• QPI up to 9.6 GT/s

Note:

• E7-48XX/88XX v3 family requires Rev. 2.0x or above mother board w/ Jordan Creek II

System Memory Memory Capacity

• 32x 240-pin DDR3 DIMM slots
• Supports up to 2TB DDR3, ECC Registered memory (RDIMM/LRDIMM) in 32 DIMM slots

Memory Type

• 1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs

DIMM Sizes

• 64GB, 32GB, 16GB, 8GB, 4GB

Memory Voltage

• 1.5 V, 1.35 V

Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)

On-Board Devices Chipset

• Intel® C602J chipset

SATA

• SATA2 (3Gbps) with RAID 0, 1, 5, 10
• SATA3 (6Gbps) with RAID 0, 1

IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• ASPEED AST2400 BMC

Network Controllers

• Intel® i350 Dual port GbE LAN
• Virtual Machine Device Queues reduce I/O overhead
• Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• 1x Realtek RTL8201F PHY (dedicated IPMI)

Graphics

• ASPEED 2400

Input / Output SATA

• 2x SATA3 (6Gbps) ports
• 4x SATA2 (3Gbps) ports

LAN

• 2x RJ45 Gigabit Ethernet LAN ports
• 1x dedicated LAN port for IPMI on AOM

USB

• 3x USB 2.0 rear ports

Serial Port / Header

• 2x Fast UART 16550 ports: 1 rear and 1 header

DOM

• 2x DOM (Disk on Module) power connectors

System BIOS BIOS Type

• 16MB SPI Flash EEPROM with AMI® BIOS

BIOS Features

• Plug and Play (PnP)
• PCI 2.2
• ACPI up to 3.0
• USB Keyboard support

Chassis Form Factor

• 4U Rackmount/Tower

Model

• CSE-748TQ-R1K43B

Dimensions and Weight Height

• 18.2" (462mm)

Width

• 7.0" (178mm)

Depth

• 28.4" (721mm)

Weight

• Net Weight: 65.5 lbs (29.7 kg)
• Gross Weight: 86.0 lbs (39.0 kg)

Available Colors

• Black

Drive Bays Hot-swap

• 5x 3.5" Hot-swap Drive Bays

Expansion Slots PCI-Express

• 2x PCI-E 3.0 x16 Full-heigh slot
• 2x PCI-E 3.0 x8 Full-heigh slot

Backplane SAS/SATA HDD Backplane System Cooling Fans

• 3x 9cm Heavy Duty fans with speed controlCooling Fans
• 3x 8cm Heavy Duty fans with speed controlCooling Fans

Shrouds

• 1x Air Shroud (MCP-310-74806-0B)

Power Supply Redundant 1400W High-efficiency AC power supply with Digital Switching Control & PMBus 1.2 AC Voltage

• 100-240 V, 50-60 Hz, 15 Amp max

+12V

• 100 Amp/115 Vac
• 117 Amp/230 Vac

With Power Distributor

• +5V: 30 Amp
• +3.3V: 25 Amp
• -12V: 0.6 Amp

Certification 80 Plus Platinum Certified PC Health Monitoring CPU

• Monitors for CPU Cores, +1.2V, 1.5V, +3.3V, +12V, (+3V, 1.0V, 1.2V, 1.8V, 1.1V) Standby, VBAT, Memory, Chipset Voltages.
• 4-Phase-switching voltage regulator with auto-sense from 0.6V-1.35V

FAN

• 4-pin fan headers with tachometer status monitoring
• Low noise fan speed control mode

Temperature

• Monitoring for CPU and system environment
• Thermal Control for 9x fan connectors

Other Features

• Chassis intrusion detection

Operating Environment / Compliance RoHS

• RoHS Compliant

Environmental Spec.

• Operating Temperature:
  10°C to 35°C (50°F to 95°F)
• Non-operating Temperature:
  -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity:
  8% to 90% (non-condensing)
• Non-operating Relative Humidity:
  5% to 95% (non-condensing)

Our Offers Item Condition - NEW OPEN BOX

Condition: Open Box – Excellent Cosmetic Condition.
This item may show light signs of use, such as small marks or light scratches due to testing, but nothing that affects its appearance or performance. It’s a great value for anyone looking for high-quality at a reduced price.

Packaging Notice:
The original packaging may have signs of wear, such as small rips, tears, or stickers. In some cases, it may be missing or replaced with new generic packaging. If you need more details, feel free to send us a message.

Testing & Verification:
Each unit is fully inspected, tested, and photographed before shipment to ensure full functionality.

What Is an Open Box Item?
This item has been opened and handled for internal testing and quality verification. It may show very light cosmetic signs, such as small marks or light scratches, but nothing that affects appearance or performance. A great value for anyone looking for high-quality at a reduced price.

Every item is thoroughly inspected by our returns department to ensure full functionality. We take pride in delivering reliable products and being transparent about any imperfections.

To ensure a smooth transaction, the serial number for this item is recorded and photographed prior to shipment.
