Supermicro AOC-A200G-B1CM Advanced 200Gb Ethernet controller
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

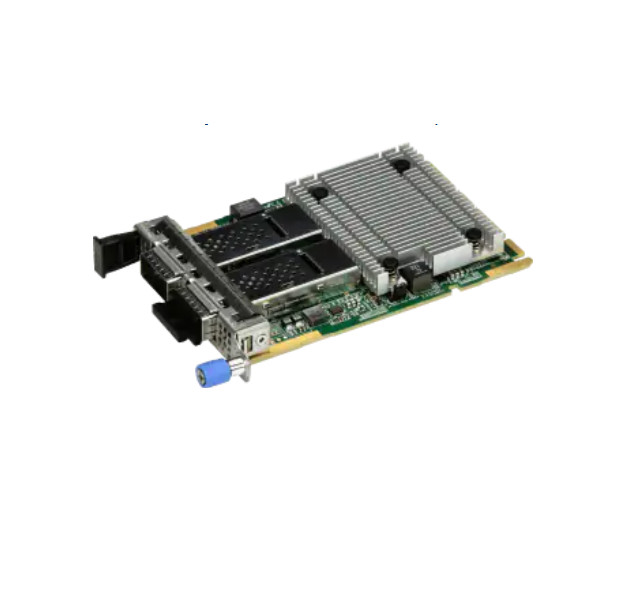

Supermicro AOC-A200G-B1CM Advanced 200Gb Ethernet controller
Price: US $799.99
Key Features
  • Advanced I/O Module (AIOM) Form Factor
  • Broadcom® BCM57508 200GbE controller
  • Support for 200GbE, 100GbE, 50GbE and 40GbE Speed
  • Single QSFP28 Connector
  • RDMA over Converged Ethernet (RoCE)
  • VXLAN, NVGRE and Geneve
  • Broadcom® TruFlow™ flow processing engine
  • Asset Management Features with thermal sensor
  • NC-SI for Remote Management (not supported by default)

Specifications
  • General
    • Advanced I/O Module (AIOM) Form Factor
    • Broadcom® BCM57508 200GbE controller
    • Single QSFP28 Connector
  • Networking Features
    • Jumbo frames (up to 9.6 KB)
    • IEEE 802.3x flow control
    • IEEE 802.3ad Link Aggregation
    • Virtual LANs- 802.1q VLAN tagging
    • Configurable Flow Acceleration
    • UEFI and iSCSI boot
  • Stateless Offload Features
    • TCP, UDP and IP checksum offloads
    • IPv4 and IPv6 offloads
    • Large Send Offload
    • Receive Segment Coalescing
    • TCP Segmentation Offload
    • Large Receive Offload
    • Receive Side Scaling (RSS)
    • Transmit Side Scaling (TSS)
  • Virtualization Features
    • NetQueue, VMQueue, and Multiqueue
    • SR-IOV with up to 128 Virtual Functions (VFs)
    • VXLAN, NVGRE, and Geneve
    • Edge Virtual Bridging (EVB)
  • RDM over Converged Ethenet (RoCE)
    • RoCEv1 and RoCEv2
    • Data Center Bridging with RoCE
  • Flow Processing
    • Exact/Wildcard Match Flow Lookup
    • VLAN insertion/deletion
    • Data Center Bridging
      • Priority-based flow control (PFC; IEEE 802.1Qbb)
      • Enhanced transmission selection (ETS; IEEE 802.1Qau)
      • Quantized Congestion Notification (QCN; IEEE 802.1Qau)
      • Data Center Bridging Capability eXchange (DCBX; IEEE 802.1Qaz)
      • 8 traffic classes per port; fully DCB compliant per 802.1Qbb
    • Power Savings
      • ACPI compliant power management
      • PCI Express Active State Power Management (ASPM)
      • Ultra-low-power mode
      • Pass-through Energy Efficient Ethernet (IEEE 802.3az-2010)
    • Power Consumption
      • Maximum 20W
    • Storage Conditions
      • Storage temperature: -40°C to 70°C (-40°F to 158°F)
      • Storage humidity: 90% non-condensing relative humidity at 35°C
    • Physical Dimensions
      • Card PCB dimensions: 76mm x 115mm (W x D)
