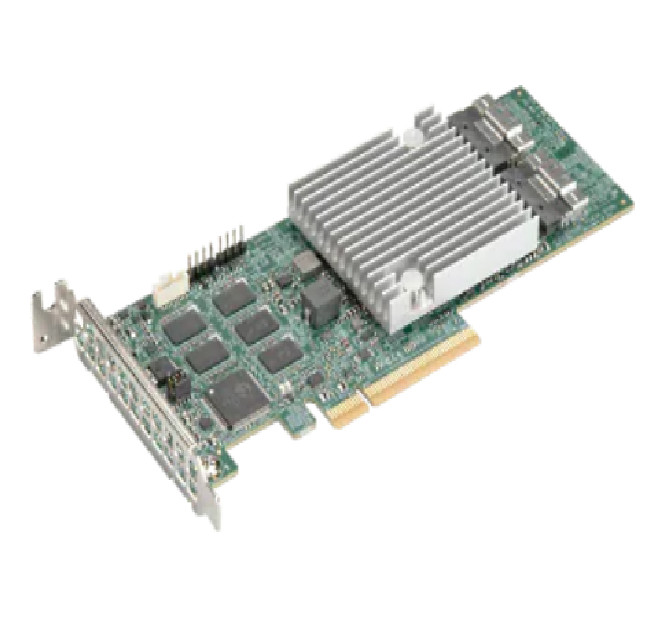

Supermicro AOC-S3916L-H16IR w/ SAS3916 controller (U3) and 240PD RAID Key(U39) For Sale
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
Supermicro AOC-S3916L-H16IR w/ SAS3916 controller (U3) and 240PD RAID Key(U39)
Price: US $1299.99
Low Profile 12Gb/s 16-Port SAS Internal RAID Adapter, 240DD Key Features
Low profile x8 PCIe Gen 4.0 root complex interface
Supports RAID 0, 1, 5, 6, 10, 50, 60, JBOD Mode
8GB DDR4 onboard cache memory – 2666MHz
Power consumption: 14 Watts for AOC-S3908L-H8iR & 18 Watts for AOC-S3916L-H16iR
Supports 3.0, 6.0 and 12.0 Gb/s SAS data transfer rates and 3.0 & 6.0 Gb SATA
Support for MCTP over I²C/PCIe
Cachevault to protect onboard cache memory
Supercap - BTR-CVPM05 (Optional)
TFM – Included on-board
Supports advanced software Encryption - included
Supports in LSA Storage Authority Software WebGUI
Secure boot
UEFI Configuration utility
OS Support: Windows/Linux
Dimensions: 2.71" x 6.6" (H x L)
Thermal operating range: System dependent (55°C or higher w/ enough airflow)
