Supermicro CSE-813M 1x Intel Quad-Core E5506 2.13GHz 6GB RAM 4-Bay 1U Server For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

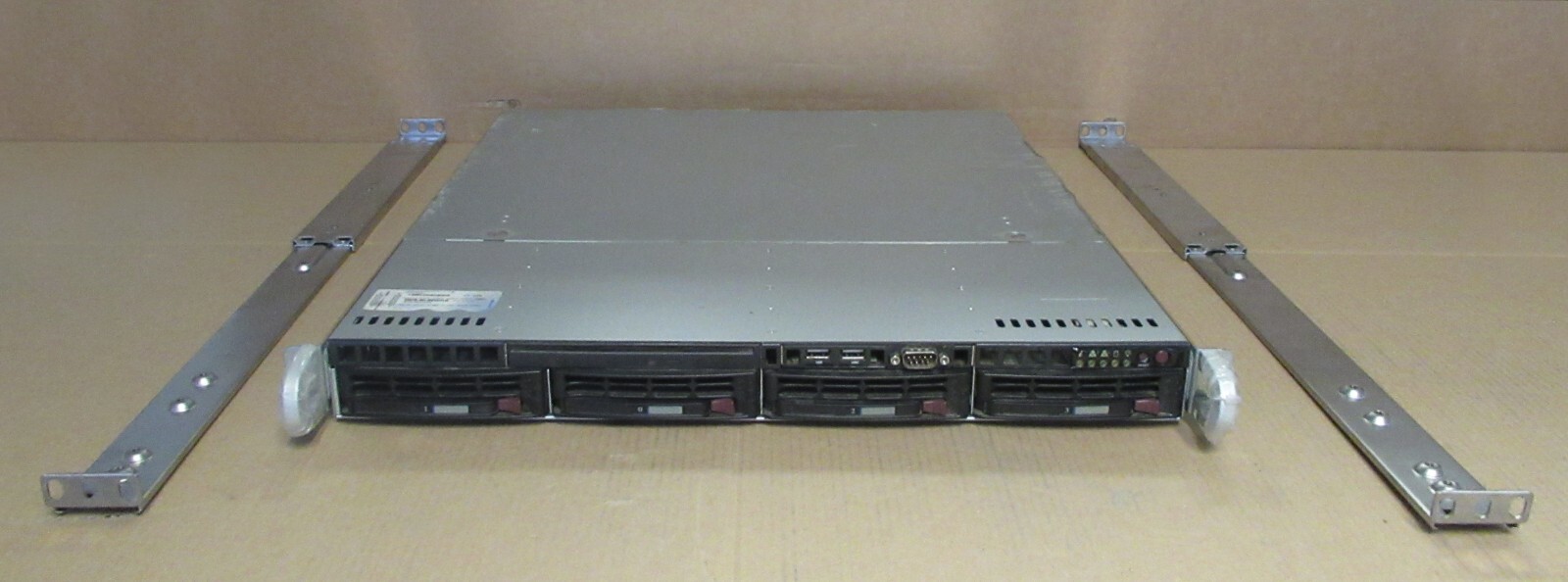

Supermicro CSE-813M 1x Intel Quad-Core E5506 2.13GHz 6GB RAM 4-Bay 1U Server

Price: GB $276.18

Supermicro CSE-813M 1x Intel Quad-Core E5506 2.13GHz 6GB RAM 4-Bay 1U ServerModel: CSE-813MBackplane: SAS815TQ rev:1.00Motherboard: X8DTL-iF rev:2.01
In Good Condition,Full Working OrderTested2 Years Warranty
Rackmount RailsIncludedIncluded

1 xSupermicro CSE-813M 4x 3.5" Bay 1U Server with:

1 x Intel Xeon Quad-Core E5506 2.13GHz Processor
4 x Memory DIMM Slots - 6GB DDR3 Memory Total
4 x 3.5" SAS/SATA Hard Drive Bays
Backplane: SAS815TQ rev: 1.00
Motherboard: X8DTL-iF rev: 2.01
1 x 520W PSU - PWS-521-1H

Manufacturers Motherboard Specification:Product SKUsMBD-X8DTL-iF -O

X8DTL-iF (Standard Retail Pack)

MBD-X8DTL-iF -B

X8DTL-iF (Bulk Pack)

Physical StatsForm Factor

Dimensions

12" x 10" (30.5cm x 25.4cm)

Processor/CacheCPU

Dual 1366-pin LGA Sockets
Supports up to twoIntel® 64-bit Xeon®processor(s) of the same type below:

Intel®
Xeon®Processor 5600 Series (Westmere)
Intel®
Xeon®Processor 5500 Series (Nehalem-EP)

QPI

up to 6.4 GT/s

System MemoryMemory Capacity

6x 240-pin DIMM slots
Supports up to 96 GB** 1333 / 1066 / 800MHz DDR3 ECC Registered memory
Supports up to 24 GB 1333 / 1066 / 800MHz DDR3 ECC / Non ECC Unbuffered memory
Memory Mirroring supported

Memory Type

1333 / 1066 / 800MHz ECC Registered / ECC or Non ECC Unbuffered DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs

DIMM Sizes

1GB, 2GB, 4GB , 8GB** , 16GB**

Memory Voltage

1.5 V / 1.35 V

Error Detection

Corrects single-bit errors
Detects double-bit errors (using ECC memory)
Supports Intel® x4 and x8 Single Device Data Correction (SDDC)

On-Board DevicesChipset

Intel® 5500 (Tylersburg) chipset
ICH10R + IOH-24D

SATA

Intel ICH10R SATA 3.0Gbps Controller
RAID 0, 1, 5, 10 support (Windows)
RAID 0, 1, 10 support (Linux)

IPMI

Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Winbond® WPCM450 BMC*

Network Controllers

2x Intel® 82574L Gigabit Ethernet Controllers
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
1x Realtek RTL8201N PHY (dedicated IPMI)

Graphics

Matrox G200eW

Super I/O

Winbond® 83627DHG-P chip

Input / OutputSerial ATA

Six Serial ATA ports
Six SATA hard drives supported

LAN

2x RJ45 LAN ports
1x RJ45 Dedicated IPMI LAN port

USB

2x USB rear ports
1x USB on-board
2x USB internal headers
Total 5 USB 2.0 Compliant

VGA

1x VGA Port

Keyboard / Mouse

PS/2 keyboard and mouse ports

Serial Port / Header

1 Fast UART 16550 serial port
1 Fast UART 16550 serial header (Option)

Tower / 4U Rackmount

To support the new generation Intel® Xeon® processor-based motherboards, aRevision Kchassis is recommended for most models. Please talk to your sales representative or follow the link for details.

Expansion SlotsPCI-Express
