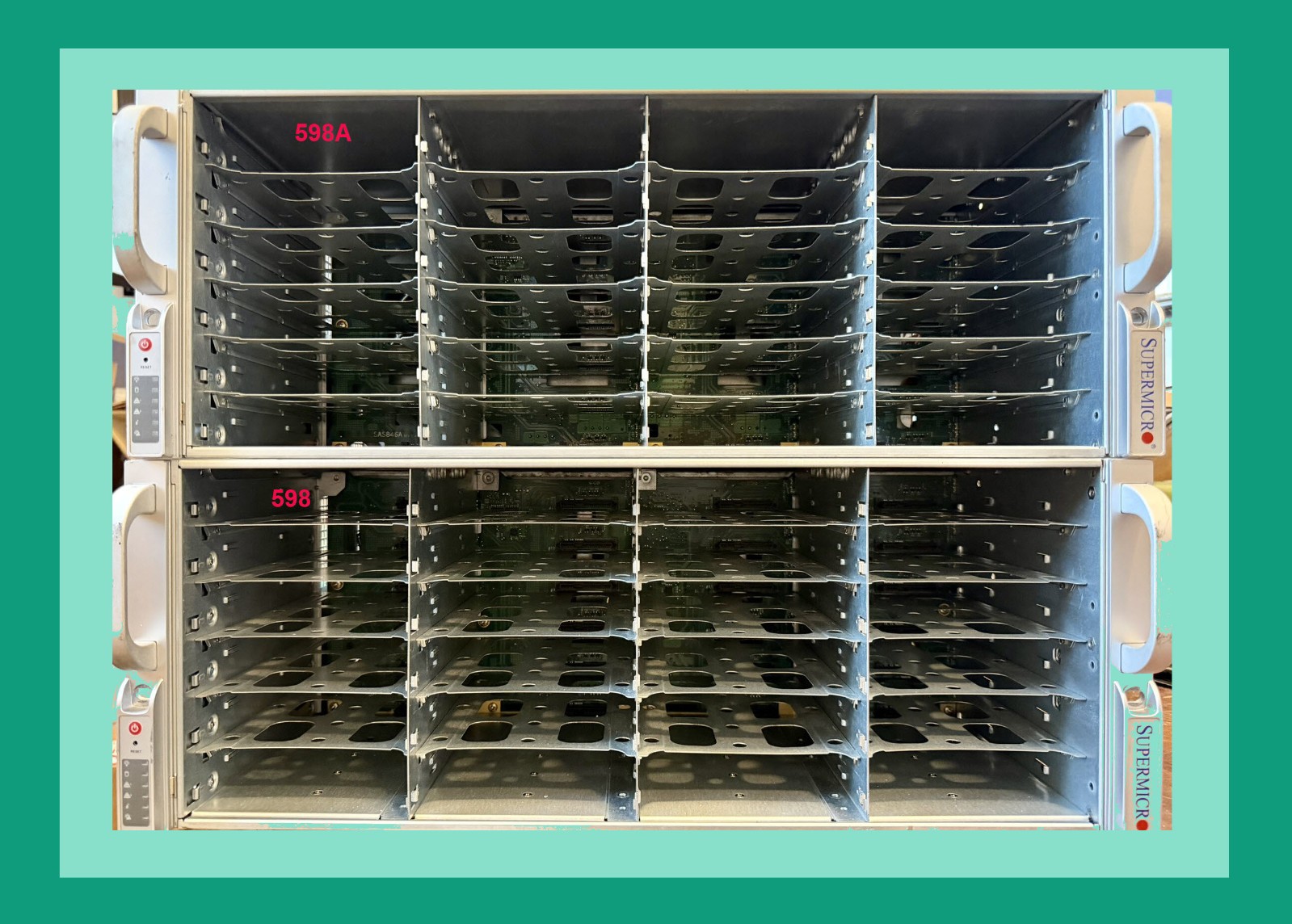

These Supermicro CSE-847 (SC847) with 64GB Ram and 2 Intel XEON E5-2620 @ 2.0 GHz are a high-density 4U rackmount storage chassis typically configured with 36 hot-swap 3.5-inch drive bays (24 front and 12 rear)FREE SHIPPING
Specifications These Units:
Serial Number: C84700A44M20068 (598A) has the low profileIntel adapter X520-DA2 which is a 2-Port 10Gbps SFP Network Server Adapter
Serial Number: C84700B12M30169 (598) does not have the Intel adapter
Memory (RAM) 64GB (4x16GB) Samsung DDR3 Server RAM 2Rx4 PC3-12800R M393B2G70BH0-CK0
Physical Specifications:
Form Factor: 4U rackmount chassis
Dimensions: 7.0" (178 mm) height x 17.2" (437 mm) width x 27.5" (699 mm) depth
Gross Weight: Approximately 91 lbs (41.28 kg)
Color: BlackStorage & Drive Bays
Hot-Swap Bays: 36x 3.5" SAS/SATA drive bays (24 front, 12 rear) in standard server layouts
The LSI MegaRAID 9265-8i is a second-generation 6Gb/s SAS/SATA hardware RAID controller featuring 8 internal ports and a dual-core 800MHz ROC processor.
Key Specifications
Host Interface: PCI Express 2.0 x8
Cache Memory: 1GB high-speed DDR3 SDRAM cache
Internal Connectors: Two Mini-SAS SFF-8087 internal ports
RAID Levels: 0, 1, 5, 6, 10, 50, and 60
Processor: LSISAS2208 dual-core RAID-on-Chip (ROC)Cooling & Power
Cooling: 7x 8cm (middle) hot-swap redundant PWM cooling fans (approx. 7000 RPM).
Power Supply: Redundant (1+1) 1400W high-efficiency power supplies (PWS-1K41P-1R)Compatibility & SlotsExpansion Slots: 7x low-profile expansion slots
Condition:
These were a working pair of Supermicro CSE-847s. As you can see, one has an Intel X520-DA2 2-Port 10Gbps SFP Network Server Adapter and the other one was removed to be used elsewhere. Whoever purchases it first gets the adapter. Cosmetically there are some scratches and slight marks but nothing that stops it from working properly. Please take note, all photos are from the Supermicro CSE-847s you will receive.Included items:
1 SuperMicro CSE-847s with 64 GB RAMNot Included items:No rails
No Power cords
Warranty/Returns:
30 days warranty on hardware only. Problems caused by abuse or tampering will not be covered by the warranty. In the unlikely event that a problem does arise on the hardware within 30 days period, please contact us through e-bay Messages for repair, replacement, or refund.
We offer 30 days to return the item and it must be in the same condition as received complete with all accessories. Buyer pays return shipping unless something was not described accurately.Telco Related items:
I am retired and selling off all of my surplus telco gear and equipment so keep checking my other items for other good telco deals with fair pricing.Shipping:
Fast Shipping within 24 Business-Hours with 30 Days Warranty
We ship within 24 hours (except weekend or holidays) after receiving full payment. Shipping is ONLY in the lower 48 states and we do not ship to APO or PO boxes. Shipping vendor will be chosen by the seller after the purchase when free shipping is offered.
Local Pickup is availableContact Us:
We guarantee the device being sold. If you have any issues, questions or concerns, before and after sale, please feel free to e-mail through messaging; we normally respond within 24 hours, if not sooner. To contact us, go to "Questions and Answers about this item" at the bottom of the list and click on "Ask a question". Select the type of question you want to ask and click on "Contact the seller".#598 & 598A
