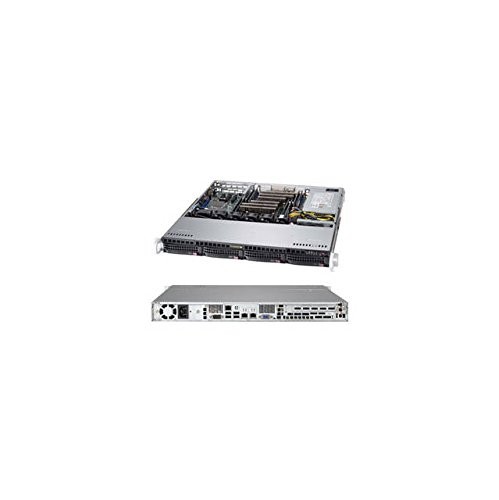

Supermicro SuperChassis 813MFTQC-350CB - Rack-mountable - Black - 1U - 4 x Bay (CSE813MFTQC350CB) Supermicro SuperChassis 813MFTQC-350CB - Rack-mountable - Black - 1U - 4 x Bay (CSE813MFTQC350CB)
International Customers: All electronic products are packaged for sale in the US with US voltage.
Package Contents: SuperChassis 813MFTQC-350CB 1 x 4-port 1U SAS3 12Gbps TQ backplane, support up to 4x 3.5-inch SAS3/SATA3 HDD/SSD 1 x ROUND 16 pin TO 16 PIN RIBBON FP CABLE 75cm. 28AWG 1 x Black DVD dummy cover for SC813, 813M, 815, PBF-RoHS 4 x 40x40x28 mm, 17.5K RPM, SC813MTS Middle Cooling Fan,RoHS/REACH,PBF 1 x Front control board dual color for SC815,SC813M (C) 1 x Fan tray for six 40x28 fans(SC813M/113M) 4 x Black gen 5.5 hot-swap 3.5"; HDD tray 1 x 1U I/O shield for X10 and X9 Server MB with 5X5mm vent hole and EMI Gasket,RoHS/REACH,PBF 2 x Dummy fan 40x28mm 1 x 1U Single AC-DC 350W Platinum Level, multiple output power supply (180mm) 1 x Set Outer rail, quick-release type, 25.6 1 x Set Inner rail, front, short, quick-release type 1 x Set Inner rail, extension (quick) for 1U 17.2
Product Description
This item is brand-new, factory sealed.
Key Features
1.1U Chassis for motherboard support size: (12" x 10") (9.6" x 9.6")
2.4 x 3.5" hot-swap SAS/SATA
3.4-port 1U SAS3 12Gbps TQ backplane, support up to 4x 3.5-inch SAS3/SATA3 HDD/SSD
4.1U 350W Multi-output power supply Platinum level
5.Up to , 1 full-height full-length expansion slot(s)
6.4 x 40x28mm PWM fan(s)
7.Optional 2 x 40x28mm PWM fan(s)
Form Factor
1U Chassis for motherboard support size: (12" x 10")(9.6" x 9.6")Processor Support
Dual, single Intel / AMD processorsAvailable Color
BlackExpansion Slots
Up to 1 full-height and full-length expansion slot(s)Drive Bays
4 x 3.5" hot-swap SAS/SATABackplane
4-port 1U SAS3 12Gbps TQ backplane,support up to 4x 3.5-inch SAS3/SATA3 HDD/SSDPeripheral Drives
Optional 1 x Slim DVD-ROM DriveFront Panel
Buttons: Power On/Off button
System Reset Button
LEDs: 2 Network Activity LEDs
HDD activity LED
Power Status LED
System Information LEDMotherboard(for CSE-813MFTQC-350CB)
X11SSH-F, X11SSH-LN4F, X11SSi-LN4F, X11SSL-F, X11SSL-CF, X11SSL-nF, X11SSL, X11SSM-F, X11SSM, X11SSH-CTF, X11SSH-TF, X11SSZ-TLN4F, X11SSZ-F, X11SSZ-QF, X10SRM-TF, X10SRM-F, X11SSH-GTF-1585, X11SSH-GF-1585, X11SSH-GTF-1585L, X11SSH-GF-1585LServers (for CSE- 813MFTQC-350CB)
5019S-M-G1585L, 5019S-M2Systems Cooling
Fans: 4 x 40x28mm PWM fan(s)
Optional 2 x 40x28mm PWM fan(s)Operating Environment (System)
Operating Temperature Range: 5oC - 35oC (41oF - 95oF)
Non-Operating Temperature Range: -40oC - 70oC (-40oF - 158oF)
Operating Relative Humidity Range: 8% - 90% (non-condensing)
Non-Operating Relative Humidity: 5% - 95% (non-condensing)Power Supply
1U 350W Multi-output power supply Platinum level
Power Efficiency: 93%
Total Output Power and Input: 350W with Input 100 - 240Vac
AC Input Frequency: 50-60Hz
Output Type: 24pin ATX
-12V: Max: .2A / Min: 0A
+12V: Max: 29A / Min: .5A (100Vac - 240Vac)
+5V: Max: 15A / Min: .2A
+3.3V: Max: 12A / Min: .2A
+5Vsb: Max: 3A / Min: 0A
Certification: Platinum CertifiedRegulatory (Power Supply)
Power Supply Safety / EMC
BSMI
CCC
CE/EMC
FCC class B
TUV/CBItem Dimension (L"xW"xH")
20 x 18 x 2Weight
31 lbWarranty Information
1 Year SpecificationPower DescriptionPower Supply InstalledYesNumber of Power Supplies Supported1Number of Power Supplies Installed1Power Supply Wattage350 WPhysical CharacteristicsForm FactorRack-mountableProduct ColorBlackHeight1.7"Color FamilyBlackCompatible Rack Warranty3 YearI/O ExpansionsTotal Number of Expansion Slots1BaysNumber of External 3.5" Bays4Number of Total Expansion Bays4General InformationBrand NameSupermicroProduct TypeComputer CaseProduct NameSuperChassis 813MFTQC-350CBManufacturerSupermicro Computer, IncManufacturer Part NumberCSE-813MFTQC-350CBProduct Model813MFTQC-350CBProduct LineSuperChassisPackaged Quantity1TitleProduct TitleSupermicro SuperChassis 813MFTQC-350CB (CSE813MFTQC350CB)Technical InformationInstalled Fan Size1.57"Number of Fans Supported6Number of Fans Installed4 Shipping
