1. Basic Information

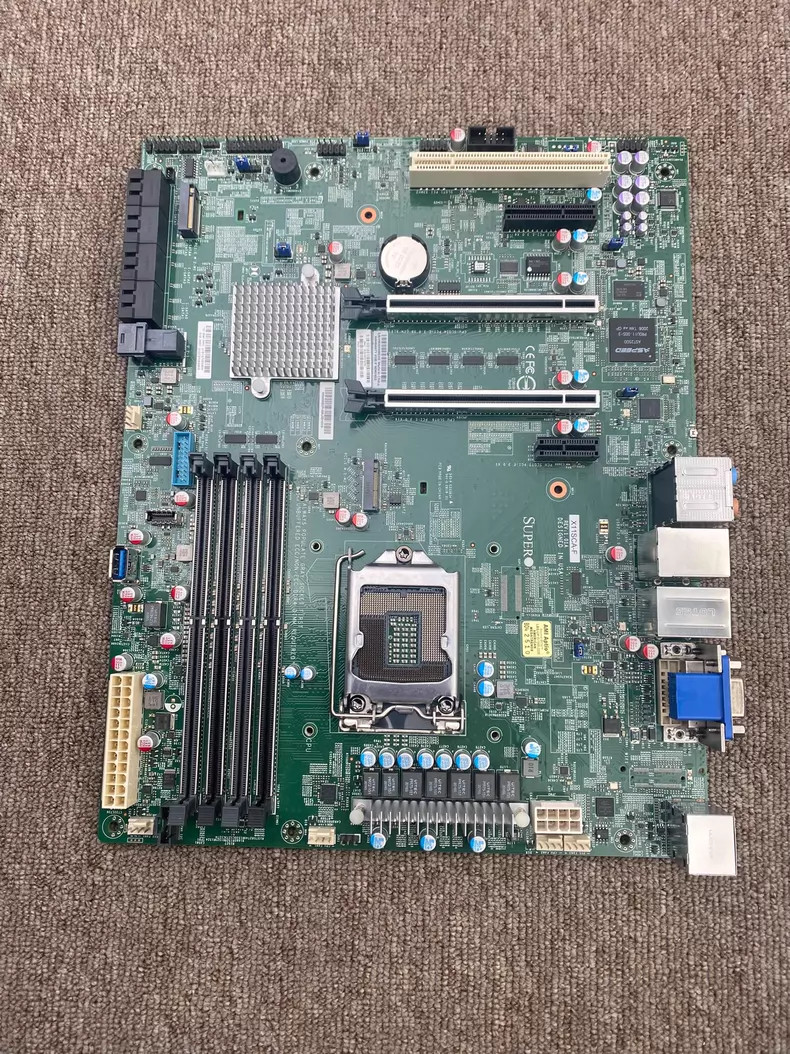

• Model: Supermicro X11SCA-F (Workstation/Server Grade)
• Platform: Intel C246 Chipset, Single Socket LGA1151 (Socket H4) ATX Server Motherboard
• Usage: Entry server, professional workstation, data storage, virtualization; supports 8th/9th Gen Core, Xeon E-2100/E-2200, Pentium/Celeron
• Form Factor: ATX (30.48×24.38cm), fits standard server chassis
• Features: Server stability, IPMI remote management, ECC memory support, dual M.2
• Condition: Fully tested, BIOS updateable, stable & reliable

2. CPU Support (LGA1151, Single Socket 95W)

• Socket: LGA1151 (Socket H4), single socket, up to 95W TDP
• Supported CPUs:
  • 8th Gen: i9-8950HK/i7-8700K/i5-8600K/i3-8100, full series
  • 9th Gen: i9-9900K/i7-9700K/i5-9600K/i3-9100, full series
  • Server CPUs: Xeon E-2100/E-2200 series (E-2174G/E-2274G)
  • Pentium/Celeron: G5xxx/G4xxx series
• Overclocking: C246 does not support CPU overclocking, Turbo Boost only

3. Power & Cooling (Server-Grade Stability)

• Power Design: 6+1 Phase Digital VRM, all-solid capacitors, server-grade alloy chokes, stable for 95W CPUs
• PCB: 6-layer server-grade PCB, stable signal under high load, strong anti-interference
• Cooling: Large passive heatsink for VRM, fanless design, zero noise & high reliability

4. Memory Specifications (ECC/non-ECC, Up to 128GB)

• Slots: 4×DDR4 DIMM (Dual-Channel)
• Max Capacity: 128GB (4×32GB)
• Frequency: Native DDR4 2666MHz (8th/9th Gen/Xeon E default)
• Type: Supports both ECC UDIMM (server memory) and non-ECC consumer memory, unbuffered

5. Expansion Slots (PCIe 3.0, Dual-GPU Ready)

• PCIe 3.0 x16 ×2: Single x16 or dual x8/x8, metal-reinforced, professional GPU/compute card support
• PCIe 3.0 x4 ×1: High-speed NIC/RAID card expansion
• PCIe 3.0 x1 ×1: Sound card/capture card expansion
• PCI 32bit ×1: Legacy industrial card compatibility

6. Storage (Dual M.2 + 8×SATA, RAID Supported)

• M.2 ×2: PCIe 3.0 x4 32Gbps, 2242/2260/2280/22110 NVMe (M-Key), no SATA support
• SATA 6Gb/s ×8: C246 native, RAID 0/1/5/10 supported
• Others: 1×SATA DOM connector (electronic disk), diskless boot ready

7. Networking & Rear I/O (Dual GbE + IPMI)

• LAN:
  • Intel I219LM GbE ×1 (system LAN)
  • Intel I210-AT GbE ×1 (shared with IPMI, KVM support)
• Rear Ports:
  • USB 3.1 Gen2 ×2 (1×Type-A+1×Type-A, 10Gbps)
  • USB 3.1 Gen1 ×3 (5Gbps)
  • USB 2.0 ×2
  • Video: VGA ×1, DVI-D ×1 (iGPU required)
  • Audio: ALC888 HD Audio
  • Others: COM ×1, TPM2.0 header, BIOS Flashback

8. Special Features (Server Exclusive)

• Remote Management: IPMI 2.0 with KVM, remote power/BIOS/OS installation
• BIOS: 128Mb UEFI, English UI, Supermicro optimization options
• Durability: Server-grade components, lightning/ESD/short-circuit resistance, 7×24h stable
• Monitoring: SuperDoctor 5, real-time voltage/temp/fan speed, alarm support

9. Ideal Usage

• Entry servers (file storage, print sharing, small databases)
• Professional workstations (3D modeling, video rendering, industrial design, virtualization)
• Data center low-power nodes, NAS storage
• Budget 8th/9th Gen/Xeon E server builds
• Industrial control hosts, 7×24h uninterrupted operation
• Please note: This product does not include batteries as they are prohibited items.
  All motherboards in this store are used motherboards. Motherboards are updated rapidly, so the pictures displayed on the page may not match the actual ones. Please contact customer service to obtain the latest actual pictures
