Product Description
Please note: The buyer is responsible for customs clearance and payment of duties.
If you have other configuration needs, you can contact us and we will customize it for you.

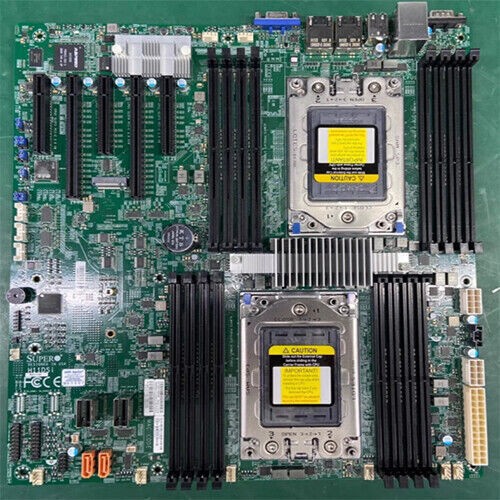

Supermicro H11DSi Motherboard E-ATX Support AMD EPYC 7001/7002 LATEST Rev. 2.0
Product SKUs
MBD-H11DSi
Physical Stats
Form Factor
- 12" x 13.05" (30.5cm x class="desc" style="box-sizing: border-box; margin: 0px; padding: 0px; font-weight: bold; color: rgb(93, 139, 96) !important;">
- Dual AMD EPYC™ 7001/7002*series Processors (*Board revision 2.x required)
- Socket SP3
- Up to 240W TDP
Cores
- Up to 32 Cores
- Up to 64 Cores (Board revision 2.x required)
Chipset
System Memory
Memory Capacity
- 16 DIMM sockets
- Supports up to 2TB Registered ECC DDR4 2666MHz SDRAM in 16 DIMMs
- Supports up to 4TB Registered ECC DDR4 3200MHz SDRAM (Board revision 2.x required)
- 8-channel memory bus
Memory Type
- DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs
- DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs (Board revision 2.x required)
DIMM Sizes
- 8GB, 16GB, 32GB, 64GB, 128GB, 256GB*(*Board revision 2.x required)
Memory Voltage
Error Detection
- Corrects single-bit errors
- Detects double-bit errors (using ECC memory)
On-Board Devices
SATA
IPMI
- Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
- ASPEED AST2500 BMC
Network Controllers
- 2 1GbE LAN via Intel® i350-AM21
- 1 Realtek RTL8211E PHY (dedicated IPMI)
VGA
Input / Output
SATA
LAN
- 2 RJ45 Gigabit Ethernet LAN ports
- 1 RJ45 Dedicated IPMI LAN port
USB
- 2 USB 3.0 ports (rear)
- 4 USB 2.0 ports (2 rear + 2 via header)
VGA
Others
- 1 COM port (rear)
- 2 SATA DOM power connector
- 1 TPM 2.0 header
Expansion Slots
PCI-Express
- 3 PCI-E 3.0 x8
- 2 PCI-E 3.0 x16
M.2
- Interface: 1 SATA/PCI-E 3.0 x2
(Platform with EPYC 7002 processor only supports PCI-E type M.2 module) - Form factor: 2280, 22110
- Key: M-key
