Key Features1.Single AMD EPYC™ 7003/7002 Series Processor
(7003 Series Processor drop-in support requires BIOS version 2.0 or newer)2.2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs3.Expansion slots:
 5 PCI-E 4.0 x16
 2 PCI-E 4.0 x8
 M.2 Interface: 2 PCI-E 4.0 x4
 M.2 Form Factor: 2280, 22110
 M.2 Key: M-key
4.8 SATA3, 2 M.2,
8 SATA3 or 2 NVMe via single SlimSAS x85.2 Gigabit Ethernet LAN Ports6.ASPEED AST2500 BMC graphics7.Up to 6 USB 3.0 ports
 (4 rear + 2 via header)8.7 PWM 4-pin Fans with tachometer status monitoringSpecifications
Product SKUs

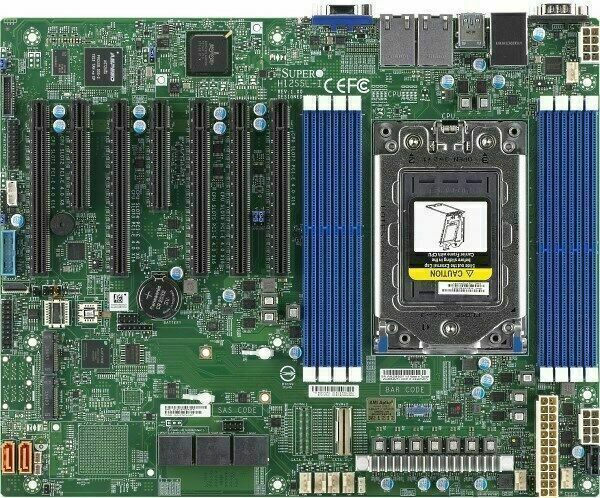

MBD-H12SSL-i

• H12SSL-i (Retail Pack)

Physical Stats
Form Factor

• ATX

Dimensions

• 12" x 9.6" (30.5cm x class="desc" style="box-sizing: border-box; margin: 0px; padding: 0px; font-weight: bold; color: rgb(93, 139, 96) !important;">
• Single AMD EPYC™ 7003/7002 Series Processor
  (7003 Series Processor drop-in support requires BIOS version 2.0 or newer)
• Socket SP3

Cores

• Up to 64 Cores

Chipset

• System on Chip

System Memory
Memory Capacity

• 8 DIMM slots
• Supports up to 2TB Registered ECC DDR4 3200MHz SDRAM
• 8-channel memory bus

Memory Type

• DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs

DIMM Sizes

• 8GB, 16GB, 32GB, 64GB, 128GB, 256GB

Memory Voltage

• 1.2V

Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)

On-Board Devices
SATA

• SATA3 (6 Gbps)

IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• ASPEED AST2500 BMC

Network Controllers

• Dual gigabit LAN via Broadcom BCM5720
• 1 Realtek RTL8211F PHY (dedicated IPMI)

VGA

• ASPEED AST2500 BMC

Input / Output
SATA

• 8 SATA3 (6 Gbps) ports

SATA/NVMe Hybrid

• 8 SATA3 or 2 NVMe via single SlimSAS x8

LAN

• 2 RJ45 Gigabit Ethernet LAN ports
• 1 RJ45 Dedicated IPMI LAN port

USB

• 6 USB 3.0 ports
  (4 rear + 2 via header)

VGA

• 1 VGA port

Others

• 1 COM port (rear)
• 2 SATA DOM power connectors
• 1 TPM 2.0 header

Expansion Slots
PCI-Express

• 5 PCI-E 4.0 x16
• 2 PCI-E 4.0 x8

M.2

• Interface: 2 PCI-E 4.0 x4
• Form factor: 2280, 22110
• Key: M-key

Chassis ( Optimized for H12SSL-i )
1U

• SC813MFTQC-350CB2
• SC213BAC8-R1K23LPB
• SC825MBTQC-R802LPB
• SC825TQC-R802LPB
• SC835TQC-R802B
• SC745BAC-R1K23B
• AS -2014S-TR
• AS -3014TS-i

System BIOS
BIOS Type

• AMI 256Mb SPI Flash EEPROM

BIOS Features

• Plug and Play (PnP)
• DMI 2.3
• PCI 2.2
• ACPI 5.1
• USB Keyboard Support
• SMBIOS class="desc" style="box-sizing: border-box; margin: 0px; padding: 0px; font-weight: bold; color: rgb(93, 139, 96) !important;">
• SuperDoctor 5
• Watch Dog
• NMI
• SUM
• IPMI 2.0, KVM with dedicated LAN

Power Configurations

• ACPI Power Management
• Power-on mode control for AC power loss recovery

PC Health Monitoring
CPU

• Monitors CPU Core Voltages, +3.3V, +5V, +5V standby, +3.3V standby
• CPU switching voltage regulator
• Supports system management utility
• VBAT

FAN

• Up to 7-fan status tachometer monitoring
• Up to 7 4-pin fan headers
• Dual Cooling Zone
• Status monitor for speed control
• Pulse Width Modulated (PWM) fan connectors

Temperature

• Monitoring for CPU and chassis environment
• CPU Thermal Trip Support
• Thermal control for 7x Fan connectors
• I²C Temperature Sensing Logic

LED

• CPU / System Overheat LED

Other Features

• Chassis Intrusion Detection
• Chassis Intrusion Header
• Operating Temperature:
  10°C to 35°C (50°F to 95°F)
• Non-operating Temperature:
  -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity:
  8% to 90% (non-condensing)
• Non-operating Relative Humidity:
  5% to 95% (non-condensing)

Parts List
Bulk Pack List

Part Motherboard



I/O ShieldMCP-260-00042-0N1STD I/O SHIELD FOR X9 SOCKET R SERVER MB
