ListingOptimized title
Supermicro CSE-E300 M11SDV-8CT-LN4F EPYC 3201 8-Core Mini 1U Barebones Server
77 characters
This gets the highest-value identifiers into the title: chassis, exact motherboard, EPYC model, core count, Mini 1U, and barebones.
Price
List: $749.99 OBO + calculated shipping
Current market context is unusually strong for this board. A used bareM11SDV-8CT-LN4Fis currently listed around$719, while new boards are around$684-$800and one established listing shows19 sold. Your unit adds the CSE-E300 chassis, cooling hardware, DC power system, and 150W adapter.
I'd structure it:
- $749.99 OBO= good starting point
- $649.99-$699.99= stronger turnover price
- $575-$625= aggressive sale
- I would not start this at $400-$500 unless you're intentionally liquidating it.
Condition
Used
Power-on tested. Unit is in good overall used condition with normal cosmetic wear from previous use. Includes the Supermicro CSE-E300 chassis, M11SDV-8CT-LN4F motherboard with integrated AMD EPYC 3201 processor, installed cooling fans, and 150W external DC power adapter shown.
No RAM, storage, operating system, or PCIe expansion card is included.
See photos for exact condition and included components.
Description
Supermicro compact Mini 1U barebones server built around theM11SDV-8CT-LN4F Rev. 1.02Mini-ITX server motherboard and integratedAMD EPYC Embedded 3201processor.
The EPYC 3201 provides8 physical cores / 8 threadsat a very low30W TDP, making this platform particularly well suited for virtualization, firewall/router applications, compact NAS/storage systems, edge computing, homelab use, network appliances, and other always-on server workloads. The CPU operates at 1.5 GHz base with boost up to 3.1 GHz.
Hardware
- Chassis:Supermicro CSE-E300 Mini 1U
- Motherboard:Supermicro M11SDV-8CT-LN4F
- Revision:1.02
- Processor:AMD EPYC Embedded 3201
- CPU Cores:8
- CPU Threads:8
- CPU Clock:1.5 GHz base / up to 3.1 GHz boost
- CPU TDP:30W
- L3 Cache:16MB
- Memory Slots:4x DDR4 DIMM
- Maximum Memory:Up to 512GB ECC Registered DDR4
- Memory Speed:DDR4-2133
- Network:4x Intel I350 Gigabit Ethernet
- Management:Dedicated IPMI Ethernet
- BMC:ASPEED AST2500
- Remote Management:IPMI 2.0 with KVM-over-LAN and virtual media
- Storage:4x SATA III 6Gb/s
- M.2:PCIe 3.0 x4, M-Key 2280
- Expansion:PCIe 3.0 x16
- Video:VGA via BMC
- Rear USB:2x USB 3.0
Supermicro confirms the board's four Intel I350-AM4 Gigabit ports, dedicated IPMI interface, PCIe x16 slot, M.2 PCIe x4 interface, four SATA III ports and four DIMM slots.
Power / Cooling
Includes the photographedEDACPOWER EA11701E-1200external power adapter:
- Output:12V DC
- Current:12.5A
- Rated Power:150W
- Locking DC barrel connector
- Three installed chassis cooling fans
The CSE-E300 platform supports Supermicro's 150W external power configuration and 40mm chassis cooling arrangement.
Included
- Supermicro CSE-E300 chassis
- Supermicro M11SDV-8CT-LN4F Rev. 1.02 motherboard
- Integrated AMD EPYC 3201 processor
- Passive CPU heatsink
- Installed chassis cooling fans
- Internal power hardware/cabling
- EDACPOWER EA11701E-1200 150W external DC adapter
- Chassis cover
Not Included
- RAM
- HDD / SSD
- M.2 NVMe SSD
- Operating system
- PCIe expansion card
- PCIe riser/card unless specifically shown
- Rack ears / rackmount kit
- Additional accessories not pictured
The motherboard uses an embedded/soldered EPYC processor. The CPU is included as part of the motherboard and is not socketed or removable.
Item specificsItem / ServerForm FactorMini 1UProcessor BrandAMDProcessorAMD EPYC 3201Processor Speed1.50 GHzMax Turbo Speed3.10 GHzNumber of Cores8Number of Threads8RAM SizeNot IncludedMemory TypeDDR4 SDRAMMemory FeaturesECC RegisteredMaximum RAM512 GBNetwork Connectivity4x Gigabit EthernetNetwork ControllerIntel I350-AM4Remote ManagementIPMI 2.0BMCASPEED AST2500StorageNot IncludedSATA4x SATA IIIM.2PCIe 3.0 x4 M-Key 2280ExpansionPCIe 3.0 x16Power SupplyExternal 150W 12V AdapterOperating SystemNot IncludedUPCDoes Not ApplyCategory
Computers/Tablets & Networking → Enterprise Networking, Servers → Servers, Clients & Terminals → Computer Servers

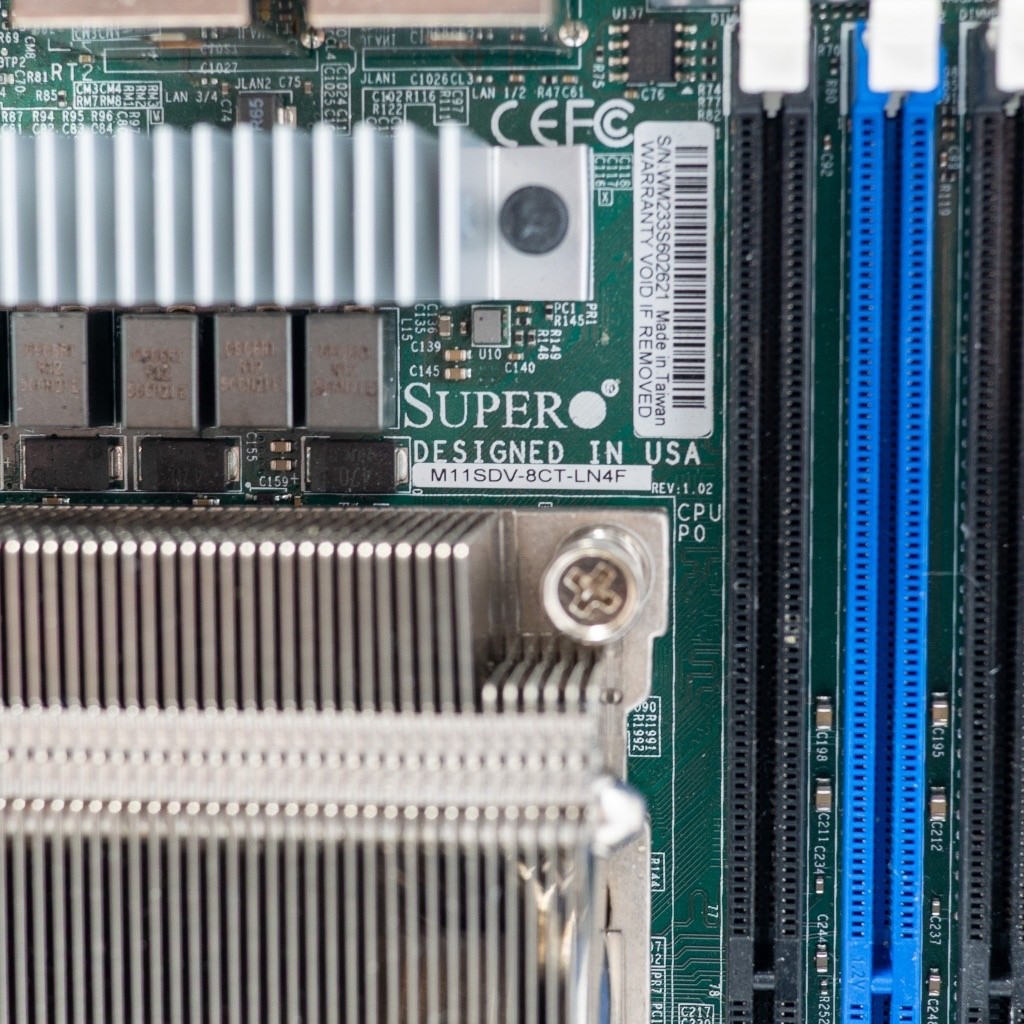

I would usephoto 1 or photo 4 as the primary image. They immediately communicate that this is the complete E300 platform rather than just a loose motherboard. The close-up showingM11SDV-8CT-LN4F Rev. 1.02should be relatively early in the photo order because that exact board is where most of the value
