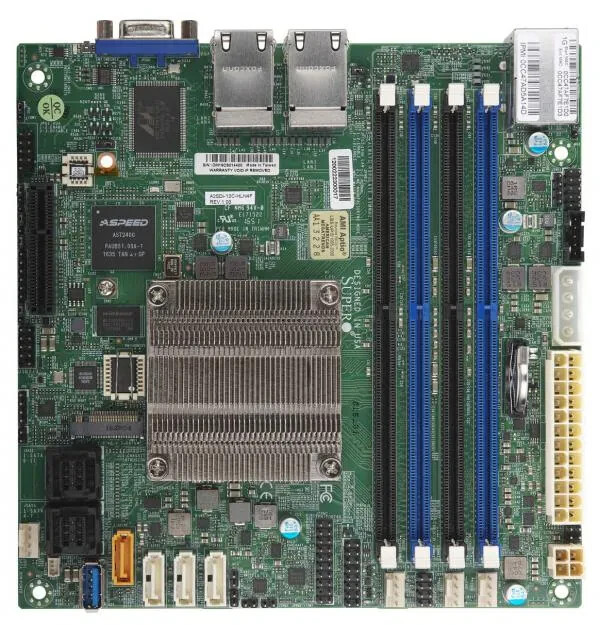

Supermicro MBD-A2SDI-8C-HLN4F-B Motherboard NEW, IN STOCK, 5 Year WarrantyBoard only. No other accessories included.
Product SKUsMBD-A2SDi-8C-HLN4FPhysical StatsForm Factor

• 6.7" x 6.7" (17.02cm x 17.02cm)

ProcessorCPU

• Intel® Atom® Processor C3758
• Single Socket FCBGA-1310 supported, CPU TDP supports Up to 25W TDP

Core

• Up to 8 cores, 8 threads / 16MB Cache

System MemoryMemory Capacity

• 4 DIMM slots
• Up to 256GB ECC RDIMM, DDR4-2400MT/s; Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2400MT/s

Memory Type

• 2400/2133/1866/1600 MT/s ECC/non-ECC DDR4 RDIMM Unbuffered

DIMM Sizes

• 4GB, 8GB, 16GB, 32GB, 64GB

Memory Voltage

• 1.2V

Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)

On-Board DevicesChipset

• System on Chip

SATA

• SoC controller for 12 SATA3 (6 Gbps) ports

IPMI

• ASPEED AST2400 BMC

Graphics

• 1 ASPEED AST2400 BMC port(s)

Network Controllers

• Quad LAN with Intel® C3000 SoC, 1GbE

Input / OutputLAN

• 4 RJ45 Gigabit Ethernet LAN ports

USB

• 4 USB 2.0 port(s) (2 via header; 2 rear)
• 1 USB 3.2 Gen1 port(s) (1 type A)

Video Output

• 1 VGA port(s)

Serial Port

• 1 COM Port(s) (1 header)

DOM

• 1 SuperDOM(Disk on Module) ports

TPM

• 1 TPM Header

Expansion SlotsPCIe

• 1 PCIe 3.0 x4

M.2

• M.2 Interface: SATA; PCIe 3.0 x2
• Form Factor: 2280, 2242
• Key: M-Key

System BIOSBIOS Type

• AMI UEFI

BIOS Features

• UEFI 2.4
• SMBIOS 2.7.1

ManagementSoftware

• SuperDoctor® 5, NMI, KVM with dedicated LAN,IPMI2.0, Watchdog

System Management Software

• SuperDoctor 5, IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support

Power Configurations

• Power-on mode for AC power recovery, ATX Power connector, +12V DC Power Input, CPU thermal trip support for processor protection

PC Health MonitoringVoltage

• VBAT, System temperature, System level control, Supports system management utility, Monitors CPU voltages, Chassis intrusion header, 4 fans with tachometer monitoring, 4 -fan status, 3.3V standby, 1.2V (VDIMM), 1.05 (PCH), +5V standby, +5V, +3.3V, +12V

LED

• UID/Remote UID

Temperature

• CPU thermal trip support

FAN

• 4x 4-pin fan headers (up to 4 fans)
• Thermal control tachometer fan connectors, System level control, Fan speed control, Dual Cooling Zone, 4 fans with tachometer monitoring, Status monitoring for speed control, Pulse Width Modulated (PWM) fan connectors, Support 3-pin fans (w/o speed control)

Other Features

• WOL, UID, System level control, RoHS, M.2 NGFF connector, Dual Cooling Zones, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ATX Power connector, 12V DC or ATX Power Source, SDDC, Intel® QuickAssist Technology, Innovation Engine, 4-pin 12v DC power connector

Operating EnvironmentOperating Temperature Range

• 0°C - 60°C (32°F - 140°F)

Non-Operating Temperature Range

• -40°C - 85°C (-40°F - 185°F)

Operating Relative Humidity Range

• 10% - 85% (non-condensing)

Non Operating Relative Humidity Range

• 10% - 95% (non-condensing)
