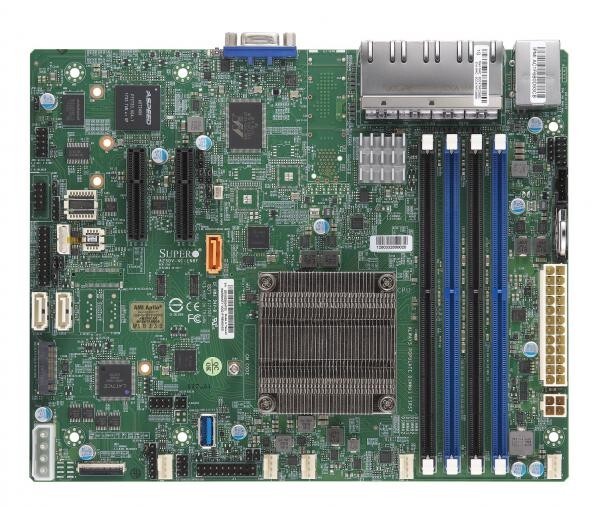

Supermicro MBD-A2SDV-4C-LN8F-B Motherboard NEW, IN STOCK, 5 Year Warranty
Product SKUsMBD-A2SDV-4C-LN8FPhysical StatsForm Factor

• Flex ATX

Dimension

• 9" x 7.25" (22.86cm x 18.42cm)

ProcessorCPU

• Intel® Atom® Processor C3558
• Single Socket FCBGA-1310 supported, CPU TDP supports Up to 16W TDP

Core

• Up to 4 cores, 4 threads / 8MB Cache

System MemoryMemory Capacity

• 4 DIMM slots
• Up to 256GB ECC RDIMM, DDR4-2133MT/s; Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2133MT/s

Memory Type

• 2400/2133/1866/1600 MT/s ECC/non-ECC DDR4 RDIMM Unbuffered (Operating speed up to 2133MHz)

DIMM Sizes

• 4GB, 8GB, 16GB, 32GB, 64GB

Memory Voltage

• 1.2V

Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)

On-Board DevicesChipset

• System on Chip

SATA

• SoC controller for 3 SATA3 (6 Gbps) ports

IPMI

• ASPEED AST2400 BMC

Graphics

• 1 ASPEED AST2400 BMC port(s)

Network Controllers

• Quad LAN with Intel® Ethernet Controller I350-AM4
• Quad LAN with Intel® C3000 SoC

Input / OutputLAN

• 1 RJ45 Dedicated IPMI LAN port
• 8 RJ45 Gigabit Ethernet LAN ports

USB

• 2 USB 2.0 port(s) (2 via header)
• 1 USB 3.2 Gen1 port(s) (1 type A)
• 2 USB 3.0 port(s) (2 rear)

Video Output

• 1 VGA port(s)

Serial Port

• 1 COM Port(s) (1 header)

DOM

• 1 SuperDOM(Disk on Module) ports

TPM

• 1 TPM Header

Expansion SlotsPCIe

• 1 PCIe 3.0 x2 (in x4 slot)
• Option for Slot 6 or Slot 7

M.2

• M.2 Interface: 1 SATA/PCIe 3.0 x2/USB 3.0
• Form Factor: 2280, 3042
• Key: B-Key

System BIOSBIOS Type

• AMI UEFI

BIOS Features

• UEFI 2.4
• SMBIOS 2.7.1

ManagementSoftware

• SuperDoctor® 5, NMI,IPMI2.0, Watchdog

System Management Software

• SuperDoctor 5, IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support

Power Configurations

• Power-on mode for AC power recovery, ATX Power connector, +12V DC Power Input, CPU thermal trip support for processor protection

PC Health MonitoringVoltage

• VBAT, Chassis intrusion header, 5 -fan status, 3.3V standby, 1.2V (VDIMM), 1.05 (PCH), +5V standby, +5V, +3.3V, +12V

LED

• UID/Remote UID

Temperature

• CPU thermal trip support

FAN

• 5x 4-pin fan headers (up to 5 fans)
• Fan speed control
• Dual Cooling Zone
• 5 fans with tachometer status monitoring

Other Features

• UID, RoHS, M.2 NGFF connector, Dual Cooling Zones, Chassis intrusion header, ATX Power connector, ACPI power management, Intel® QuickAssist Technology, 4-pin 12v DC power connector

Operating EnvironmentOperating Temperature Range

• 0°C - 60°C (32°F - 140°F)

Non-Operating Temperature Range

• -40°C - 85°C (-40°F - 185°F)

Operating Relative Humidity Range

• 10% - 85% (non-condensing)

Non Operating Relative Humidity Range

• 10% - 95% (non-condensing)
