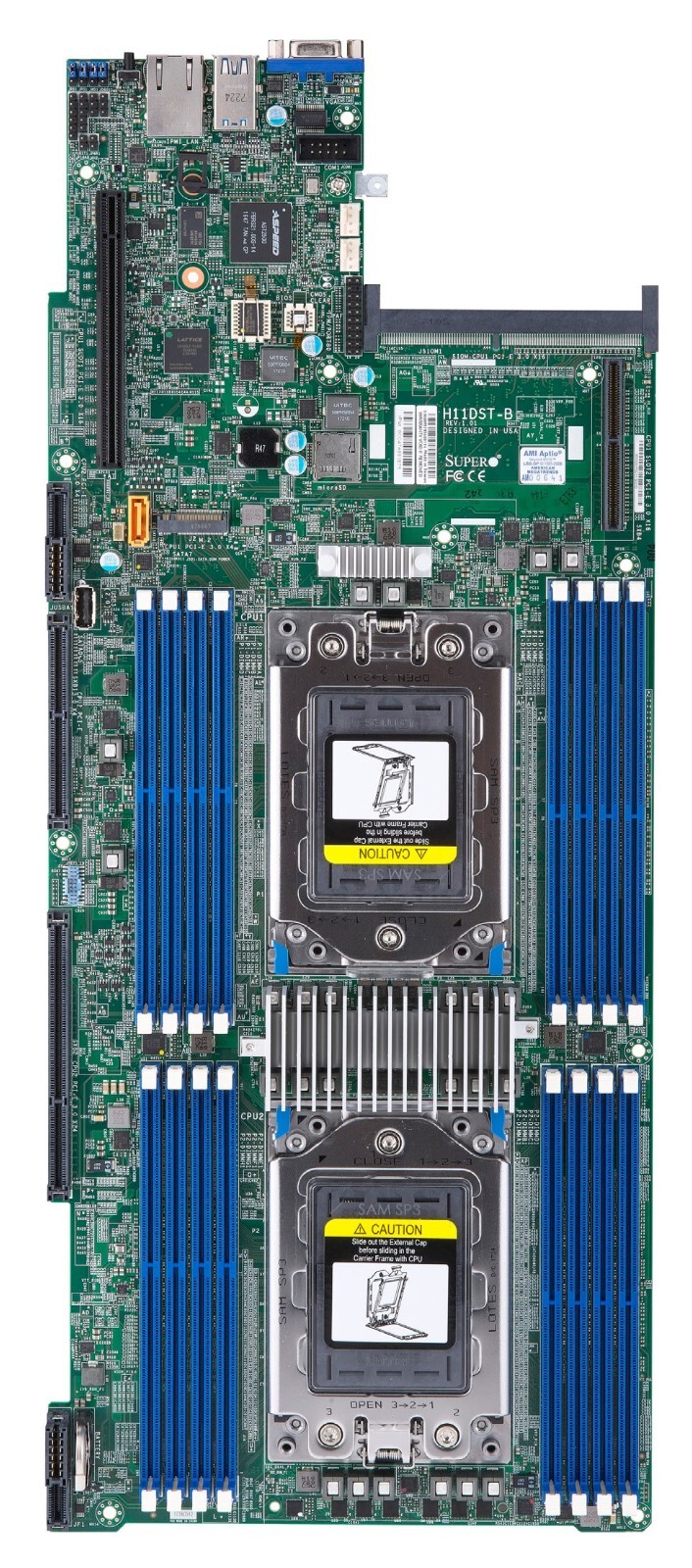

Supermicro MBD-H11DST-B-B Motherboard NEW, IN STOCK, 5 Year Warranty
SpecificationsProduct SKUsMBD-H11DST-B

• H11DST-B (for server SKUs only)

Physical StatsForm Factor

• Proprietary BigTwin™

Dimensions

• 7.62" x 18.86"

Processor/ChipsetCPU

• Dual AMD EPYC™ 7001/7002*series Processors (*Board revision 2.x required)
• Socket SP3

Cores

• Up to 32 Cores
• Up to 64 Cores (Board revision 2.x required)

Chipset

• System on Chip

System MemoryMemory Capacity

• 16 DIMM sockets
• Supports up to 2TB Registered ECC DDR4 2666MHz SDRAM in 16 DIMMs
• Supports up to 4TB Registered ECC DDR4 3200MHz SDRAM (Board revision 2.x required)
• 8-channel memory bus

Memory Type

• DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs
• DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs (Board revision 2.x required)

DIMM Sizes

• 8GB, 16GB, 32GB, 64GB, 128GB, 256GB*(*Board revision 2.x required)

Memory Voltage

• 1.2V

Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)

On-Board DevicesSATA

• SATA3 (6 Gbps)

IPMI

• Support for Intelligent Platform Management Interface v. 2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• ASPEED AST2500 BMC

Network Controllers

• 1 PCI-E 3.0 x16 SIOM LAN Networking Slot
• 1 Realtek RTL8211E PHY (dedicated IPMI)

VGA

• ASPEED AST2500 BMC

Input / OutputSATA

• 6 SATA3 (6 Gbps) ports

LAN

• Provided via SIOM
• 1 RJ45 Dedicated IPMI LAN port

USB

• 2 USB 3.0 ports (2 rear)
• 1 USB 2.0 port (Type A)

VGA

• 1 VGA port

Others

• 1 COM port (header)
• 1 SATA DOM power connector
• 1 TPM 2.0 header

Expansion SlotsPCI-Express

• 1 PCI-E 3.0 x16 Left Riser Slot
• 1 PCI-E 3.0 x16 Right Riser Slot
• 1 PCI-E 3.0 x24 Proprietary Slot
  (for Supermicro storage add-on card)
• 1 PCI-E 3.0 x16 SIOM LAN Networking Slot

M.2

• Interface: 1 SATA/PCI-E 3.0 x4
• Form Factor: 2280, 22110
• Key: M-key

Chassis ( Optimized for H11DST-B )2U

• AS -2123BT-HNC0R
• AS -2123BT-HNR
• AS -2123BT-HTR

System BIOSBIOS Type

• AMI 128Mb SPI Flash EEPROM

BIOS Features

• Plug and Play (PnP)
• DMI 2.3
• PCI 2.2
• ACPI 5.1
• USB Keyboard Support
• SMBIOS 3.1.1

ManagementSoftware

• SuperDoctor 5
• Watch Dog
• NMI
• SUM
• IPMI 2.0, KVM with dedicated LAN

Power Configurations

• ACPI Power Management
• Power-on mode control for AC power loss recovery

PC Health MonitoringCPU

• Monitors CPU Core Voltages, +1.5V, +1.8V, +12V, +5V, +5V standby
• CPU switching voltage regulator

FAN

• Up to 2 fan status tachometer monitoring
• Up to 2 4-pin fan headers
• Status monitor for speed control
• Pulse Width Modulated (PWM) fan connectors

Temperature

• Monitoring for CPU and chassis environment
• CPU Thermal Trip Support
• Thermal control for 8x Fan connectors
• I2C Temperature Sensing Logic

LED

• CPU / System Overheat LED

Other Features

• Chassis Intrusion Detection
• Chassis Intrusion Header

Operating Environment / ComplianceEnvironmental Specifications

• Operating Temperature:
  10°C to 35°C (50°F to 95°F)
• Non-operating Temperature:
  -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity:
  8% to 90% (non-condensing)
• Non-operating Relative Humidity:
  5% to 95% (non-condensing)
