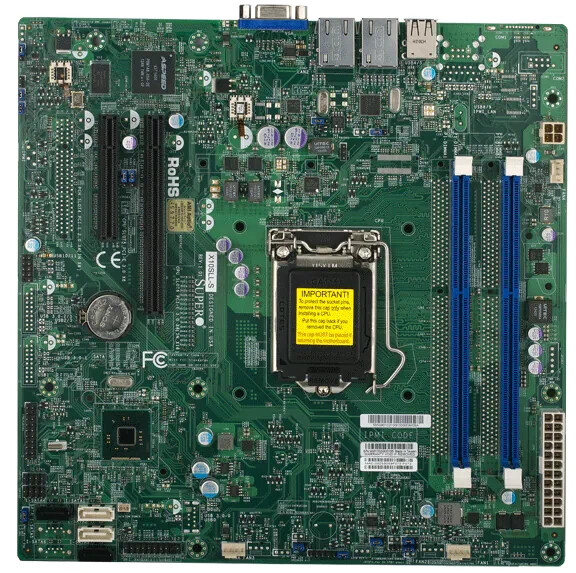

Supermicro MBD-X10SLL-SF Micro-ATX Motherboard NEW, IN STOCK, 5 Year Warranty
SpecificationsProduct SKUsMBD-X10SLL-SF

• 9.6" x 9.6" (24.38cm x 24.38cm)

Processor/CacheCPU

• Intel® 4th Generation Core™ i3 series, Intel® 5th Generation Core™ i3 series, Intel® Celeron®, Intel® Pentium®v, Intel® Xeon® processor E3-1200 v4/v3.
• Single Socket LGA 1150 supported, CPU TDP support 80W

System MemoryMemory Capacity

• Up to 16GB Unbuffered ECC UDIMM, DDR3-1600MHz, in 2 DIMM slots

Memory Type

• 1600MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs

DIMM Sizes

• 1GB, 2GB, 4GB, 8GB

Memory Voltage

• 1.35V, 1.5V

Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)

On-Board DevicesChipset

• Intel® C222 Express PCH

SATA

• SATA3 (6 Gbps) ports; RAID 0,1
• SATA2 (3 Gbps) ports; RAID 0,1,5,10

IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• ASPEED AST2400 with 10/100/1000M bps MAC

Network Controllers

• Intel® Ethernet Controller I217LMIntel® Ethernet Controller I210-ATSupports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output

Graphics

• Aspeed AST2400 BMC

Input / OutputSATA

• 2 SATA3 (6Gbps) ports
• 2 SATA2 (3Gbps) ports

LAN

• 2 RJ45 Gigabit Ethernet LAN ports

USB

• 4 USB 2.0 ports (2 rear + 2 headers)

Video Output

• 1 VGA port

TPM

• TPM Header

Expansion SlotsPCI-E

• 1 PCI-E 3.0 x8 (in x16 slot),
• 1 PCI-E 3.0 x8

System BIOSBIOS Type

• 128Mb SPI Flash EEPROM with AMI BIOS

BIOS Features

• SMBIOS 2.7.1
• ACPI 5.0
• USB Keyboard support

ManagementSoftware

• IPMI2.0, NMI, SuperDoctor® III, Watchdog

Power Configurations

• ACPI Power Management
• Main Switch Override Mechanism
• Power-on mode for AC power recovery
• Internal/External modem ring-on

PC Health MonitoringVoltage

• +1.8V, +12V, +3.3V, +5V, +5V standby, 5 Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V, Chipset Voltage, HT, Memory, VBAT

FAN

• 3x 4-pin fan headers (up to 3 fans), 3 fans with tachometer monitoring, Low noise fan speed control, Pulse Width Modulated (PWM) fan connectors, Status monitoring for on/off control, Status monitoring for speed control, Support 3-pin fans (w/o speed control)

Temperature

• Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI, FC temperature sensing logic

LED

• CPU / System Overheat LED, +5V Standby alert LED

Other Features

• Chassis intrusion detection, Chassis intrusion header

Operating EnvironmentOperating Temperature Range

• 0°C ~ 50°C (32°F ~ 122°F)

Non-Operating Temperature Range

• -40°C - 70°C (-40°F - 158°F)

Operating Relative Humidity Range

• 8% - 90% (non-condensing)

Non-Operating Relative Humidity Range

• 5% - 95% (non-condensing)

Parts ListParts List (Bulk Package)NamePart Motherboard
