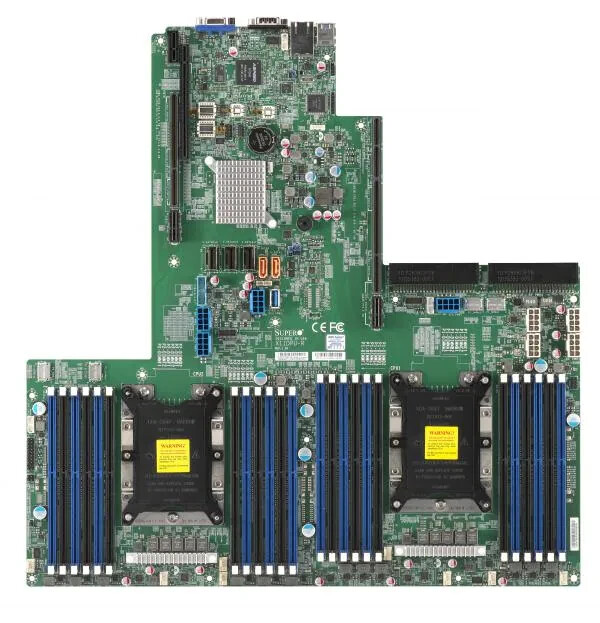

Supermicro MBD-X11DPU-R-B Motherboard NEW, IN STOCK, 5 Year Warranty
SpecificationsProduct SKUsMBD-X11DPU-R

• X11DPU-R

Physical StatsForm Factor

• Proprietary Ultra/WIO

Dimensions

• 17" x 16.8" (43.18cm x 42.67cm)

Processor/CacheCPU

• 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors
• Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 2 UPI up to 10.4 GT/s

Cores / Cache

• Up to 28 cores / 38.5MB cache

Note

• BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)

System MemoryMemory Capacity

• Up to 6TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 6TB 3DS ECC LRDIMM, DDR4-2933MHz, in 24 DIMM slots;
• Up to 6TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only).

Memory Type

• 2933/2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM

DIMM Sizes

• RDIMM: 64GB, 128GB
• LRDIMM: 128GB
• 3DS LRDIMM: 256GB

Memory Voltage

• 1.2V

Error Detection

• Corrects single-bit errors

On-Board DevicesChipset

• Intel® C621

SATA

• Intel® C621 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10

IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• ASPEED AST2500

Network Controllers

• Networking options provided via Ultra Riser

Graphics

• Aspeed AST2500 BMC

Input / OutputSATA

• 14 SATA3 (6Gbps) port

USB

• 5 USB 3.0 ports (2 rear + 2 via headers + 1 Type A)

Video Output

• 2 VGA D-Sub Connector ports

Serial Port / Header

• 1 COM Port (1 rear)


TPM

• 1 TPM Header & Chip both

Expansion SlotsPCI-E

• 1 PCI-E 3.0 x32 Right Riser Slot,
• 1 PCI-E 3.0 x8 Right Riser Slot,
• 1 PCI-E 3.0 x40 Ultra Riser Slot

System BIOSBIOS Type

• AMI 32Mb SPI Flash ROM

ManagementSoftware

• Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SPM, SSM, SUM, SuperDoctor® 5

System Management Software

• IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
• SuperDoctor 5
• IPMIView for Linux/Windows
• IPMICFG
• SMCIPMITool
• SPM
• SSM
• SUM

Power Configurations

• ACPI Power Management

PC Health MonitoringVoltage

• +1.8V, +12V, +3.3V, +5V, +5V standby, 5+1 Phase-switching voltage regulator, 8 -fan status, Chassis intrusion header, HT, Supports system management utility, VBAT

FAN

• 8x 4-pin fan headers (up to 8 fans), 8x fans with tachometer monitoring, Pulse Width Modulated (PWM) fan connectors, Status monitoring for speed control

Temperature

• Thermal Control for 8 Fan Connectors

LED

• N/A

Other Features

• 4x 8-pin GPU power connectors, Chassis intrusion detection, CPU thermal trip support for processor protection, Node Manager Support, RoHS, RoT, SDDC

Operating EnvironmentOperating Temperature Range

• 10°C - 35°C (50°F - 95°F)

Non-Operating Temperature Range

• -40°C - 70°C (-40°F - 158°F)

Operating Relative Humidity Range

• 8% - 90% (non-condensing)

Non-Operating Relative Humidity Range

• 5% - 95% (non-condensing)
