Product Description

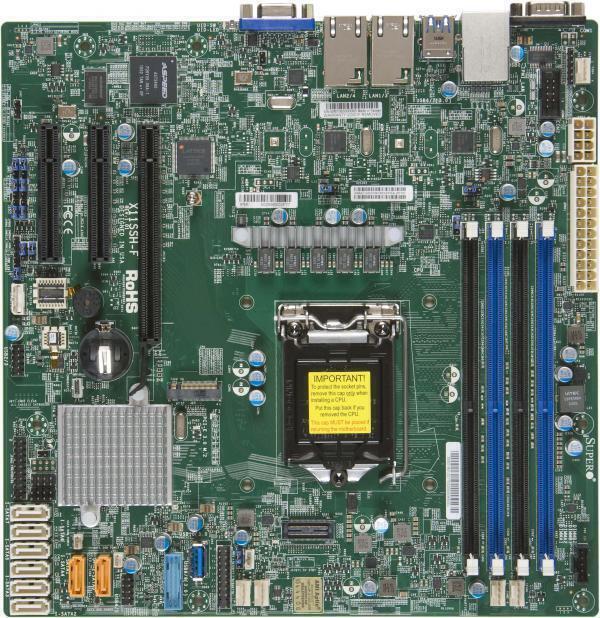

Supermicro MBD-X11SSH-F LGA 1151 Intel C236 DDR4 Server M-ATX Motherboard
Supermicro MBD-X11SSH-F Official Specs (English)

Model: Supermicro MBD-X11SSH-FChipset: Intel® C236Socket: LGA1151 (Socket H4)Form Factor: Micro-ATX (24.4 cm × 24.4 cm)BMC: ASPEED AST2400 (IPMI 2.0 remote management)

CPU

• Socket: Intel LGA1151
• Supported CPUs: Intel Xeon E3-1200 v5/v6, 6th /7th Gen Intel Core i3, Pentium, Celeron processors
• Support Intel VHD with compatible CPUs
• Check Supermicro official CPU support list for compatibility

Memory

• 4 × DDR4 DIMM slots, Dual Channel
• Max Capacity: 64GB (16GB per DIMM)
• Memory Speed: DDR4 2400 / 2133 / 1866 / 1600 /1333 MHz
• Support ECC Unbuffered UDIMM & non-ECC Unbuffered DDR4
• 1.2V memory voltage, single-bit error correction

Expansion Slots

• 1 × PCIe 3.0 x8 (in x16 physical slot)
• 1 × PCIe 3.0 x8 slot
• 1 × PCIe 3.0 x4 (in x8 physical slot)
• 1 × M.2 NGFF M-Key 2280, PCIe 3.0 x2

Storage

• 8 × SATA 6Gb/s ports from Intel C236
• RAID 0 / RAID1 / RAID5 / RAID10 support (Intel RST)
• NCQ, AHCI and Hot Plug supported

Rear I/O Panel

• 1 × VGA port (ASPEED AST2400 BMC video)
• 2 × COM Serial ports
• 2 × USB 3.0 Type-A
• 2 × USB 2.0 Type-A
• 2 × Intel I210-AT Gigabit LAN ports
• 1 × Dedicated IPMI LAN port
• TPM header

Graphics

• ASPEED AST2400 BMC onboard VGA video

Networking

• Dual Intel I210-AT Gigabit Ethernet (10/100/1000 Mbps)
• Separate dedicated IPMI LAN for remote server management
• No onboard Wi-Fi & Bluetooth

Power Connectors

• 1 × 24-pin ATX main power
• 1 × 8-pin ATX 12V CPU power

Internal Headers

• 1 × USB3.0 header (extra 2×USB3.0)
• 2 × USB2.0 headers (extra 4×USB2.0)
• CPU fan header, System fan headers
• Front panel header
• TPM header

Features

• IPMI 2.0 remote management
• 128MB SPI Flash BIOS
• Server-grade stable platform
• Supports Windows Server, Linux, Windows 10/11
