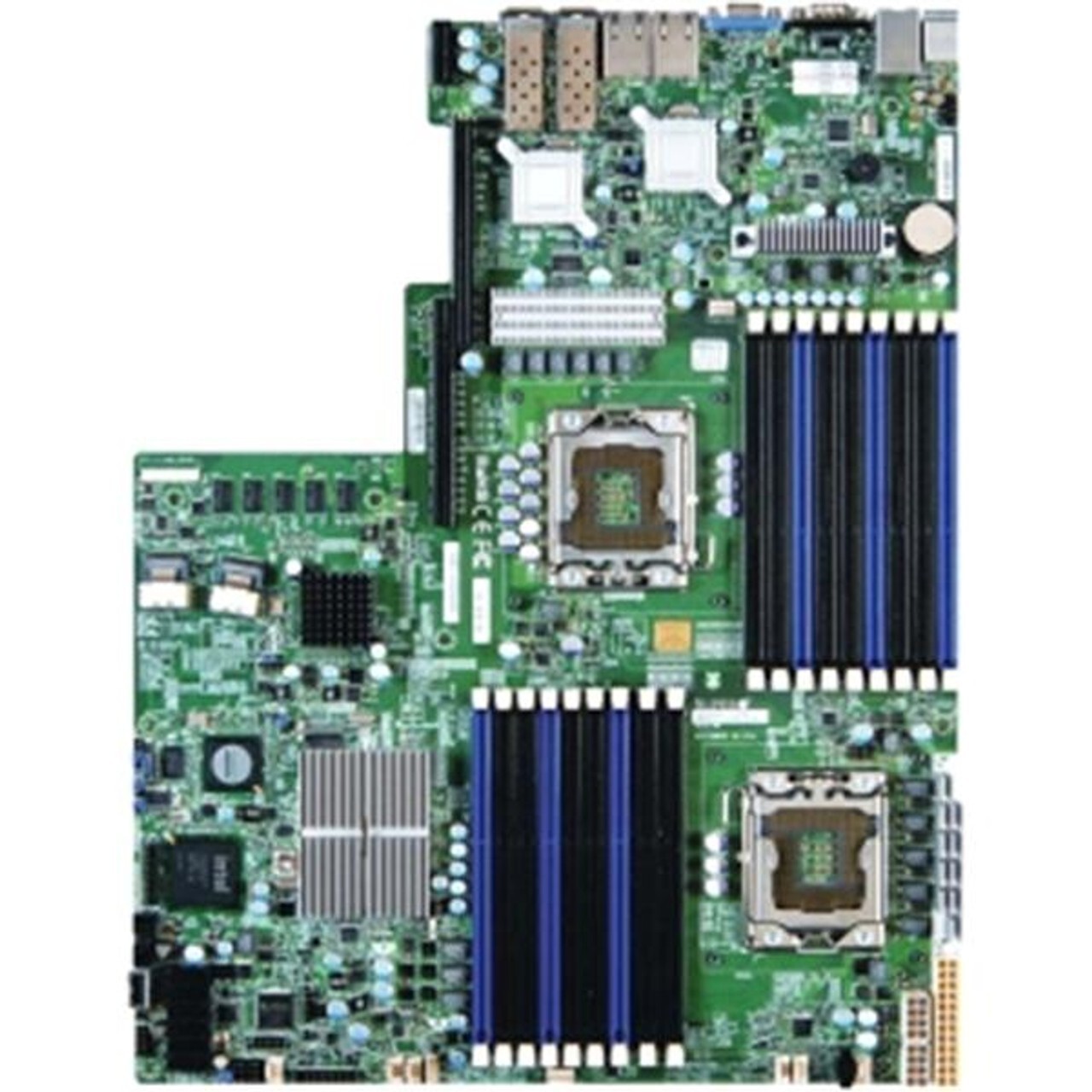

Supermicro MBD-X8DTU-F-B Motherboard NEW, IN STOCK, 5 Year Warranty
Product SKUsMBD-X8DTU-F -B

• X8DTU-F (Bulk Pack)

Physical StatsForm Factor

• 12.075" x 13.05" (30.67cm x 33.15cm)

Processor/CacheCPU

• Dual 1366-pin LGA Sockets
• Supports up to twoIntel® 64-bit Xeon®processor(s) of the same type below:
• Intel®
  Xeon®Processor 5600 Series (Westmere)
• Intel®
  Xeon®Processor 5500 Series (Nehalem-EP)

QPI

• up to 6.4 GT/s

System MemoryMemory Capacity

• 12x 240-pin DIMM slots
• Supports up to 192 GB 1333 / 1066 / 800MHz DDR3 ECC Registered memory
• Supports up to 48 GB 1333 / 1066 / 800MHz DDR3 ECC / Non ECC Unbuffered memory
• Memory Mirroring supported

Memory Type

• 1333 / 1066 / 800MHz ECC Registered / ECC or Non ECC Unbuffered DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs

DIMM Sizes

• 1GB, 2GB, 4GB , 8GB , 16GB

Memory Voltage

• 1.5 V / 1.35V

Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)
• Supports Intel® x4 and x8 Single Device Data Correction (SDDC)

On-Board DevicesChipset

• Intel® 5520 (Tylersburg) chipset
• ICH10R + IOH-36D

SATA

• Intel ICH10R SATA 3.0Gbps Controller
• RAID 0, 1, 5, 10 support (Windows)
• RAID 0, 1, 10 support (Linux)

IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• Winbond® WPCM450 BMC

Network Controllers

• Intel® 82576 Dual-Port Gigabit Ethernet Controller
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• Intel® I/OAT 3support for fast, scaleable, and reliable networking
• VMDqsupport for better performance of virtualization
• 1x Realtek RTL8201N PHY (dedicated IPMI)

Graphics

• Matrox G200eW

Super I/O

• Winbond 83827HF chip

Input / OutputSerial ATA

• Six Serial ATA ports
• Six SATA hard drives supported

LAN

• 2x RJ45 LAN ports
• 1x RJ45 Dedicated IPMI LAN port

USB

• 2x USB rear ports
• 2x USB on-board
• 4x USB internal headers
• Total 8 USB 2.0 Compliant

VGA

• 1x VGA Port

Keyboard / Mouse

• PS/2 keyboard and mouse ports

Serial Port / Header

• 1 Fast UART 16550 serial port
• 1 Fast UART 16550 serial header (Option)

Chassis ( Optimized for X8DTU-F )1U Chassis

• CSE-812L-600UB

2U Chassis

• CSE-826A-R1200UB
• CSE-826E16-R1200UB
• CSE-847E1-R1400UB
• To support the new generation Intel® Xeon® processor-based motherboards, aRevision Kchassis is recommended for most models. Please talk to your sales representative or follow the link for details.

Expansion SlotsPCI-Express / PCI-X / UIO

Left Side
• 1 (x16) PCI-E 2.0 + 1 UIO slotsor
• 1 (x16) PCI-E 2.0

Right Side
• 2 LAN optional


• For 2U configuration, Please go toUIO Riser Cardspage

System BIOSBIOS Type

• 32Mb SPI Flash EEPROM with AMI® BIOS

BIOS Features

• Plug and Play (PnP)
• PCI 2.2
• ACPI up to 3.0
• USB Keyboard support

ManagementSoftware

• IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
• SuperDoctor® III

Power Configurations

• ACPI / ACPM Power Management

PC Health MonitoringVoltage

• Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
• 6-Phase-switching voltage regulator

FAN

• Total of eight fan headers supporting up to 8 fans
• Eight 4-pin fan headers
• 8x fans with tachometer status monitoring
• Support 3-pin fans (w/o speed control)
• Low noise fan speed control (4-pin fan only)

Temperature

• Monitoring for CPU and chassis environment
• Thermal Control for 8x fan connectors
• PECI

Other Features

• Chassis intrusion detection
• Chassis intrusion header

Operating EnvironmentEnvironmental Spec.

• Operating Temperature: 10° to 35° C (50° to 95°F)
• Non-operating Temperature: -40° to 70° C (-40° to 158° F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5 to 95% (non-condensing)
