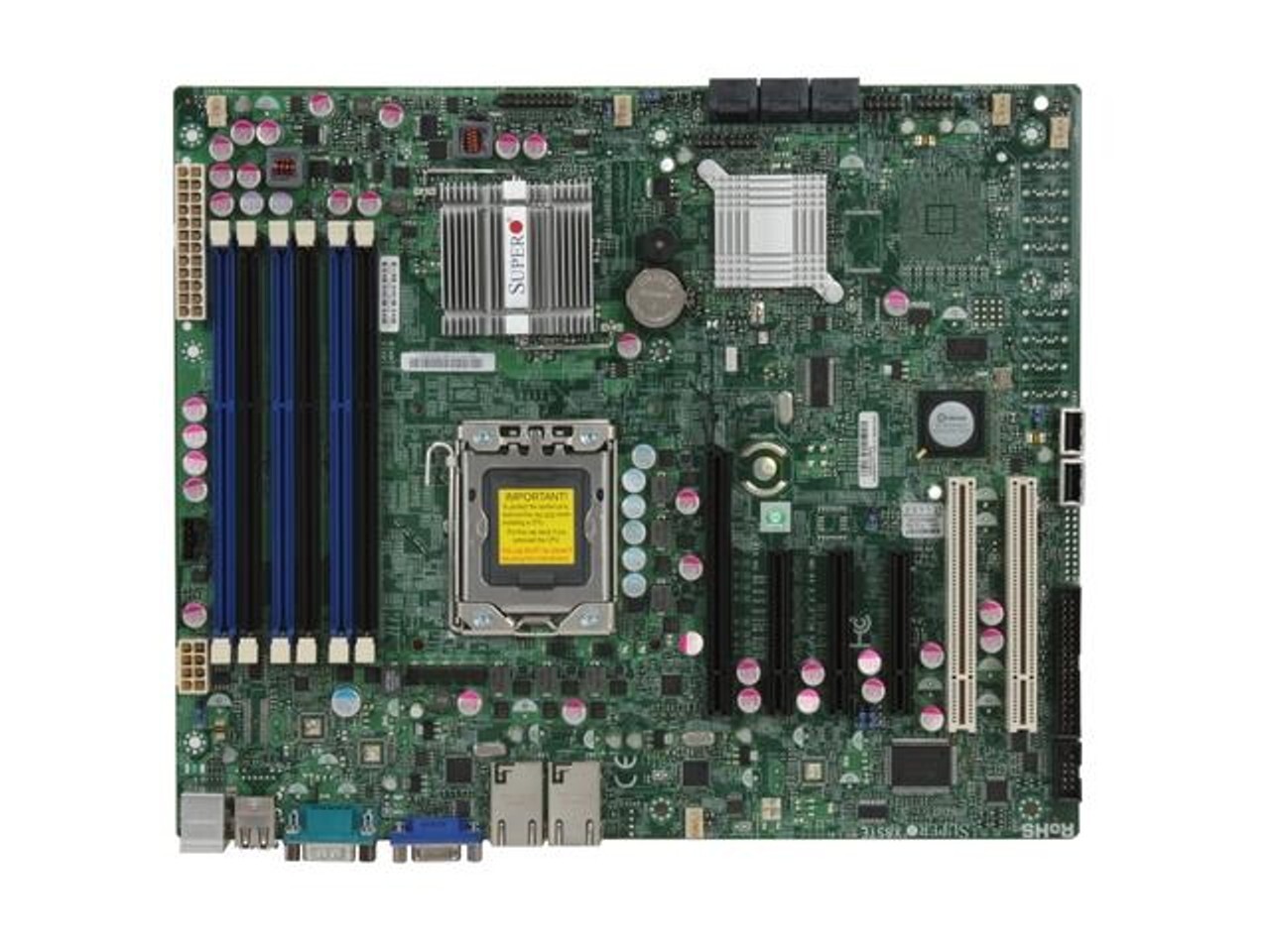

Supermicro MBD-X8STE-B Motherboard NEW, IN STOCK, 5 Year Warranty
Product SKUsMBD-X8STE -B

• X8STE (Bulk Pack)

Physical StatsForm Factor

• ATX

Dimensions

• 12" x 10" (30.5cm x 25.4cm)

Processor/CacheCPU

• LGA 1366 Socket
• Intel® Core™ i7-980X, i7-975, i7-965 and i7-960Extreme Edition
• Intel® Core™ i7series
• Intel® Xeon® 5600/5500series
• Intel® Xeon® 3600/3500series

System Bus

• QPI (up to 6.4 GT/s)

System MemoryMemory Capacity

• Supports up to 24 GB 1333 / 1066 / 800MHz DDR3 ECC / non-ECC Un-Buffered memory
• Three Channel memory bus
• 6 DIMM sockets

Memory Type

• 1333 / 1066 / 800MHz Un- Buffered ECC / non-ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs

DIMM Sizes

• 256MB, 512MB, 1GB, 2GB, 4GB

Memory Voltage

• 1.5 V

Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)
• Supports Intel® x4 and x8 Single Device Data Correction (SDDC)

On-Board DevicesChipset

• Intel® X58 Express chipset
• ICH10R

SATA

• Intel ICH10R SATA 3.0Gbps Controller
• RAID 0, 1, 5, 10 support (Windows)
• RAID 0, 1, 10 support (Linux)

Network Controllers

• 2x Intel® 82574L Gigabit Ethernet Controllers
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

VGA

• Matrox G200eW 16 MB DDR2

Super I/O

• Winbond 83627DHG chip

Clock Generator

• CK505

Input / OutputSerial ATA

• 6 SATA ports
• 6 SATA hard drives supported

Floppy

• 1 Floppy controller; 1.44 MB

LAN

• 2x RJ45 LAN ports

USB

• 2x USB rear ports
• 2x USB on-board
• 2x USB internal headers (4 ports)
• Total 8 USB 2.0 Compliant

VGA

• 1x VGA port

Keyboard / Mouse

• PS/2 keyboard and mouse ports

Serial Port / Header

• 1x Fast UART 16550 serial port
• 1x internal header

I/O Panel
• Please see this board'sI/O PanelOS Compatibility
• Please see ourOS Compatibility ChartChassis (Optimized for X8STE)2U Chassis

• CSE-213A-R900LPB
• CSE-216A-R900LPB
• CSE-216E1-R900LPB
• CSE-216E2-R900LPB
• CSE-822T-400LPB
• CSE-823MTQ-R700LPB
• To support the new generation Intel® Xeon® processor-based motherboards, aRevision Kchassis is recommended for most models. Please talk to your sales representative or follow the link for details.

Expansion SlotsPCI-Express

• 3 (x8) PCI-e 2.0 slots (1 using x16 slot)
• 1 (x4) PCI-e slot (using x8 slot)

PCI

• 2x 32-bit PCI slot

System BIOSBIOS Type

• 32Mb SPI Flash EEPROM with AMI BIOS

BIOS Features

• DMI 2.3
• PCI 2.3
• ACPI 1.0 / 2.0
• USB Keyboard support
• SMBIOS 2.3

ManagementSoftware

• SuperDoctor® III
• Watch Dog
• NMI

Power Configurations

• ACPI / ACPM Power Management
• Main Switch Override Mechanism
• Wake-On-LAN (WOL) header
• Keyboard Wakeup from Soft-Off
• Power-on mode for AC power recovery
• Internal/External modem ring-on

PC Health MonitoringVoltage

• Monitors for CPU Cores, +1.8V, +3.3V, +5V, ±12V, +3.3V Standby, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
• 6-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V

FAN

• Total of five fan headers supporting up to 5 fans
• Five 4-pin fan headers
• 5x fans with tachometer status monitoring
• Status monitor for speed control
• Status monitor for on/off control
• Support 3-pin fans (w/o speed control)
• Low noise fan speed control
• Pulse Width Modulated (PWM) fan connectors

Temperature

• Monitoring for CPU and chassis environment
• CPU thermal trip support
• FC temperature sensing logic
• Thermal Monitor 2 (TM2) support
• PECI

LED

• CPU / System Overheat LED
• +5V Standby alert LED

Other Features

• Chassis intrusion detection
• Chassis intrusion header

Operating EnvironmentEnvironmental Spec.

• Operating Temperature: 10°to 35°C (50°to 95°F)
• Non-operating Temperature: -40°to 70°C (-40°to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5 to 95% (non-condensing)
