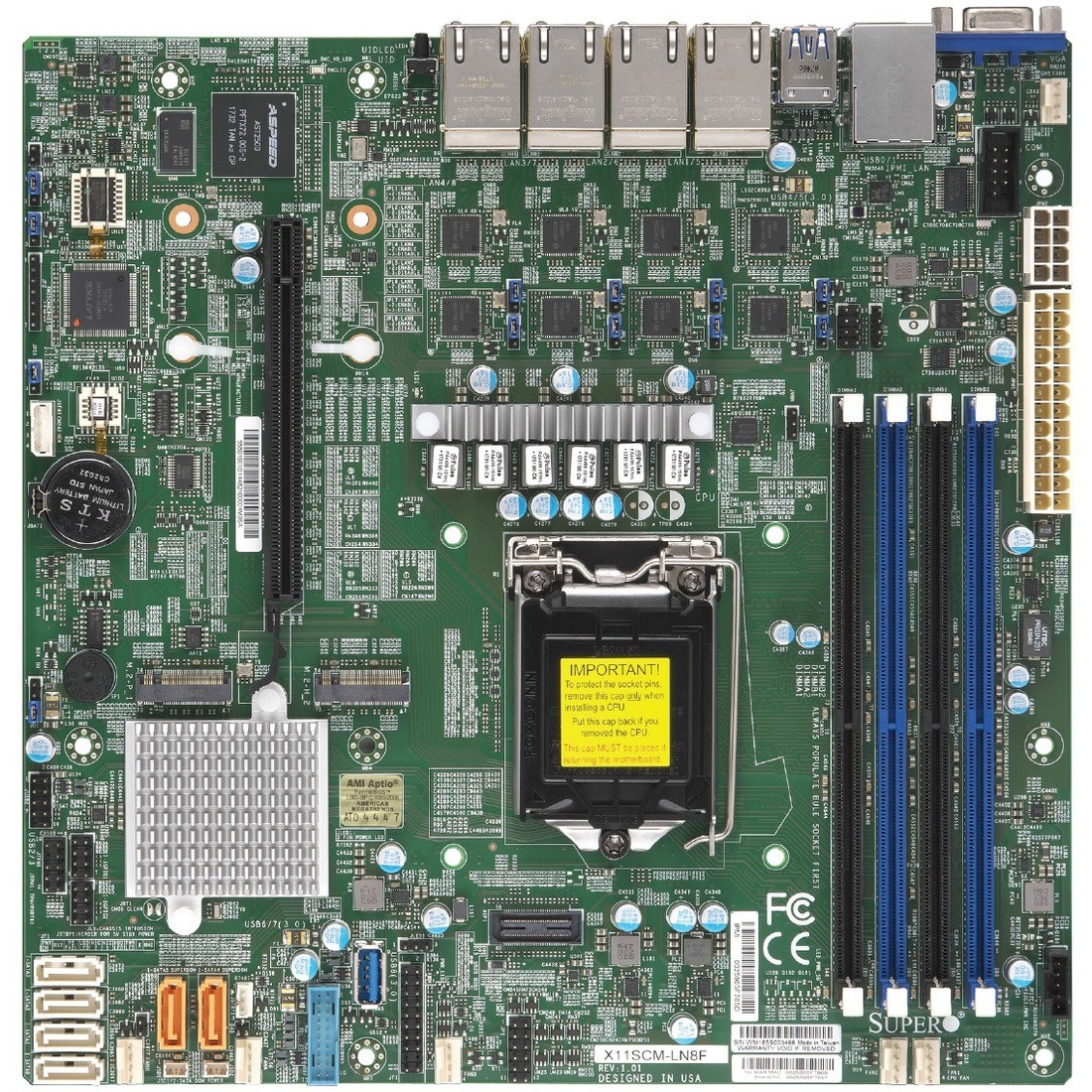

Supermicro X11SCM-LN8F Server Motherboard - Intel C246 Chipset - Socket H4 LGA-1151 - Micro ATX (235346) Supermicro X11SCM-LN8F Server Motherboard - Intel C246 Chipset - Socket H4 LGA-1151 - Micro ATX (235346)

International Customers: All electronic products are packaged for sale in the US with US voltage.

Package Contents: X11SCM-LN8F Server Motherboard 1 x Motherboard Quick Reference Guide 6 x I/O Cables 1 x STD I/O Shield for X11SCM-LN8F with EMI Gasket

Environmentally Friendly: Yes

Compatibility: Supermicro Chassis: SC813MFTQC-350CB2 SC813MFTQC-R407CB SC512F-350B1 SC515-350 SC515-R407 SC514-R407C SC113MTQ-R400C 1U Heatsink: SNK-P0046P SC825TQC-R740LPB 2U Heatsink:SNK-P0046A4 Supermicro Server: SYS-1019C-FHTN8

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Product Description

This item is brand-new, factory sealed.

Key Features

1.8th/9th Generation Intel Core?i3/Pentium/Celeron Processor, Intel Xeon E-2100 Processor, Intel Xeon E-2200 Processor., Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP

2.Intel C246

3.Up to 128GB Unbuffered ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots

4.8 LAN with Intel Ethernet Controller I210-AT

5.1 PCI-E 3.0 x16

M.2 Interface: 1 SATA/PCI-E 3.0 x4 and 1 PCI-E 3.0 x4

M.2 Form Factor: 2280/22110

M.2 Key: M-Key

Double Height Connector

6.Intel C246 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10

7.5x USB 3.0 ports, 4x USB 2.0 ports

8.1 VGA, 1 COM, 1 TPM

9.2 SuperDOM with built-in power
Physical Stats
Form Factor
microATXProcessor/Cache
CPU
8th/9th Generation Intel Corei3/Pentium/Celeron Processor, Intel Xeon E-2100 Processor, Intel Xeon E-2200 Processor.
Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP
Cores / Cache
8 cores, 16 threads
Note
BIOS version 1.0b or above is required to support Intel Xeon E-2200 and 9th Generation Intel Core i3/Pentium/Celeron ProcessorsSystem Memory
Memory Capacity
Up to 128GB Unbuffered ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
Memory Type
2666/2400/2133MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
4GB, 8GB, 16GB, 32GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errorsOn-Board Devices
Chipset
Intel C246
SATA
Intel C246 controller for 6 SATA3 (6 Gbps) ports RAID 0,1,5,10
IPMI
ASPEED AST2500
Network Controllers
8 LAN with Intel Ethernet Controller I210-AT
Graphics
Aspeed AST2500 BMCInput / Output
SATA
6 SATA3 (6Gbps) port
LAN
8 RJ45 Gigabit Ethernet LAN ports
USB
4 USB 2.0 ports (2 rear + 2 via headers)
5 USB 3.1 Gen1 ports(2 rears, 2 via headers, 1 Type A)
Video Output
1 VGA port
Serial Port / Header
1 COM Port (1 header)
TPM
1 TPM HeaderExpansion Slots
PCI-E
1 PCI-E 3.0 x16
M.2
M.2 Interface: 1 SATA/PCI-E 3.0 x4 and 1 PCI-E 3.0 x4
Form Factor: 2280/22110
Key: M-Key
Double Height ConnectorSystem BIOS
BIOS Type
UEFI 256Mb
BIOS Features
ACPI 6.0
SMBIOS 2.7
Plug and Play (PnP)
RTC (Real Time Clock) Wakeup
UEFI 2.7
USB Keyboard support
PCI 3.0Management
Software
Intel Node Manager, IPMI2.0, NMI, SPM, SSM, SUM, SuperDoctor 5, Watchdog
System Mangement Software
IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
Power Configurations
ACPI Power ManagementPC Health Monitoring
Voltage
+12V, +3.3V, +5V, +5V standby, 6 -fan status, Chassis intrusion header, Chipset Voltage, Memory Voltages, Monitors CPU voltages, Supports system management utility, System level control, VBAT
FAN
6x 4-pin fan headers (up to 6 fans), 6 fans with tachometer status monitoring, Fan speed control, Overheat LED indication, Thermal control tachometer fan connectors
Temperature
Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI
LED
UID/Remote UID, CPU / System Overheat LED
Other Features
ACPI power management, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Dual Cooling Zones, M.2 NGFF connector, Node Manager Support, UID, WOLOperating Environment
Operating Temperature Range
0oC 50oC (32oF 122oF)
Non-Operating Temperature Range
-40oC 70oC (-40oF 158oF)
Operating Relative Humidity Range
8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
5% - 95% (non-condensing)Item Dimension (L"xW"xH")
NAWeight
2 lbs Warranty Information
1 YearPackage Contents:

• X11SCM-LN8F Server Motherboard
• 1 x Motherboard Quick Reference Guide
• 6 x I/O Cables
• 1 x STD I/O Shield for X11SCM-LN8F with EMI Gasket

SpecificationPhysical CharacteristicsForm FactorMicro Warranty1 YearI/O ExpansionsTotal Number of Expansion Slots1Number of PCI Express x16 Slots1Total Number of PCI Express Slots1MemoryMemory TechnologyDDR4 SDRAMNumber of Memory Slots4Memory Speed Supported

• 2666 MHz
• 2400 MHz
• 2133 MHz

Memory Form Factor

Total Processor Supported1Processor SocketSocket H4 LGA-1151Chipset ModelC246Onboard InterfacesNumber of SATA Interfaces6Total Number of Onboard USB Ports5Number of M.2 Interfaces1Number of Onboard USB 3.1 Ports3Number of Onboard USB 2.0 Ports2Interfaces/PortsVGAYesNumber of USB 3.1 Ports2Number of USB 2.0 Ports2Total Number of USB Ports4Number of Network (RJ-45) Ports8I/O ControllerRAID SupportedYesController TypeSerial ATA/600RAID Levels
