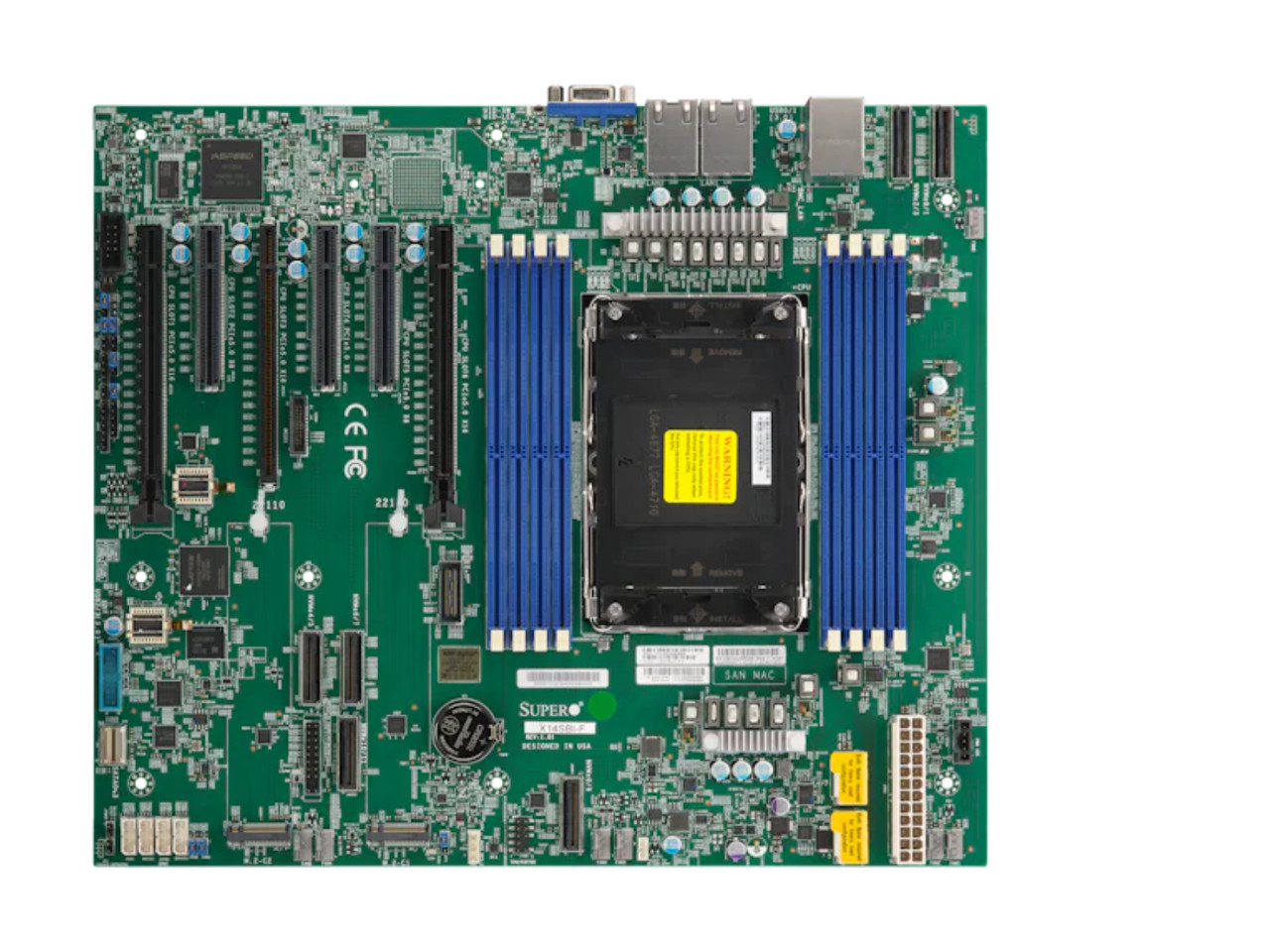

Supermicro MBDX14SBIFO Server Motherboard Supermicro MBDX14SBIFO Server Motherboard
International Customers: All electronic products are packaged for sale in the US with US voltage.
This item is brand-new, factory sealed.
Key Features
1. Intel Xeon 6700/6500 series processors with P-cores or 6700 series processors with E-cores, Single Socket LGA-4710 (Socket E2) supported, CPU TDP up to 350W
2. Up to 2TB ECC RDIMM DDR5-6400MT/s and up to 512GB MRDIMM DDR5-8000MT/s in 8 DIMM slots
3. 6 PCIe 5.0 x8 via MCIO connectors (JNVME36 are enabled with the specific CPUnote installed)
4. 3 PCIe 5.0 x16 (SLOT6 is enabled with the specific CPUnote installed), 3 PCIe 5.0 x8,
M.2 Interface: 2 PCIe 5.0 x2 (Form Factor: 22110, M-Key)
5. Dual LAN with 1GbE with IntelI210
6. 4 USB 3.2 Gen1 (2 rear, 2 via header), 4 SATA3 (via SlimSAS x4)
7. Onboard TPM9672: TCG2.0, FIPs 140-2 Level 2, Intel TXT and Microsoft Windows certification
Note: Specific CPUs: Intel Xeon 6781P, 6761P, 6741P, 6731P, 6521P, 6511PPhysical Stats
Form Factor
ATXProcessor
CPU
Intel Xeon 6700/6500 series processors with P-cores or 6700 series processors with E-cores
Single Socket E2 (LGA-4710) supported, CPU TDP supports Up to 350W TDP
Note 1: BIOS 1.2 or above is required to support Intel Xeon 6700/6500-series processors with P-cores
Note 2: Specific CPUs: Intel Xeon 6781P, 6761P, 6741P, 6731P, 6521P, 6511P
Core
Up to 144 E-cores or 86 P-coresSystem Memory
Memory Capacity
8 DIMM slots
Up to 512GB ECC Registered MRDIMM (P-core only), DDR5-8000MT/s, Up to 2TB ECC Registered RDIMM, DDR5-6400MT/s
Note: Intel Xeon 6700/6500-series processors with P-cores is required to support MRDIMM
Memory Type
ECC DDR5 MRDIMM (P-core only), RDIMM
DIMM Sizes
16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB, 256GB
MRDIMM (P-core only): 32GB, 64GB
RDIMM: 16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB
RDIMM 3DS: 256GB
Memory Voltage
1.1V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)On-Board Devices
Chipset
System on Chip
SATA
ASMediaASM1164 controller for 4 SATA3 ports
IPMI
ASPEED AST2600 BMC
Network Controllers
Dual LAN with 1GbE with Intel I210Input / Output
SATA
4 SATA3 port(s)
LAN
2 RJ45 Gigabit Ethernet LAN ports
1 RJ45 Dedicated IPMI LAN port
USB
4 USB 3.2 Gen1 port(s) (2 via header, 2 rear)
Video Output
1 VGA D-Sub Connector port(s)
Serial Port
1 COM Port(s) (1 header)
TPM
1 TPM HeaderExpansion Slots
PCIe
3 PCIe 5.0 x8,
3 PCIe 5.0 x16,
6 PCIe 5.0 x8 MCIO connector
(PCIe 5.0 SLOT6 and JNVME3-6 are enabled with the specific CPUnote installed)
M.2
M.2 Interface: 2 PCIe 5.0 x2
Form Factor: 22110
Key: M-Key
Note: Specific CPUs: Intel Xeon 6781P, 6761P, 6741P, 6731P, 6521P, 6511PSystem BIOS
BIOS Type
AMI 64MB AMI UEFI
BIOS Features
ACPI 6.5
SMBIOS 3.7 or later
UEFI 2.9Management
Software
SuperCloud Composer, Supermicro Server Manager (SSM), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New, Plug-ins for 3rd Party SoftwarePC Health Monitoring
Voltage
VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chassis intrusion header, +5V standby, +5V, +3.3V, +12V, Memory Voltages, 7 -fan status
LED
UID/Remote UID
CPU / System Overheat LED
Temperature
Monitoring for CPU and chassis environment
CPU thermal trip support
Thermal Monitor 2 (TM2) support
PECI
FAN
7x 4-pin fan headers (up to 7 fans)
Fan speed control
Overheat LED indication
Other Features
WOL, UID, M.2 NGFF connector, Control of power-on for recovery from AC power loss, Chassis intrusion detection, ACPI power managementOperating Environment
Operating Temperature Range
0oC - 50oC (32oF - 122oF)
Non-Operating Temperature Range
-30oC - 60oC (-22oF - 140oF)
Operating Relative Humidity Range
8% - 80% (non-condensing)
Non Operating Relative Humidity Range
8% - 90% (non-condensing)Item Dimension (L inchxW inchxH inch)
18 x 15 x 4
Weight
8.00lb
