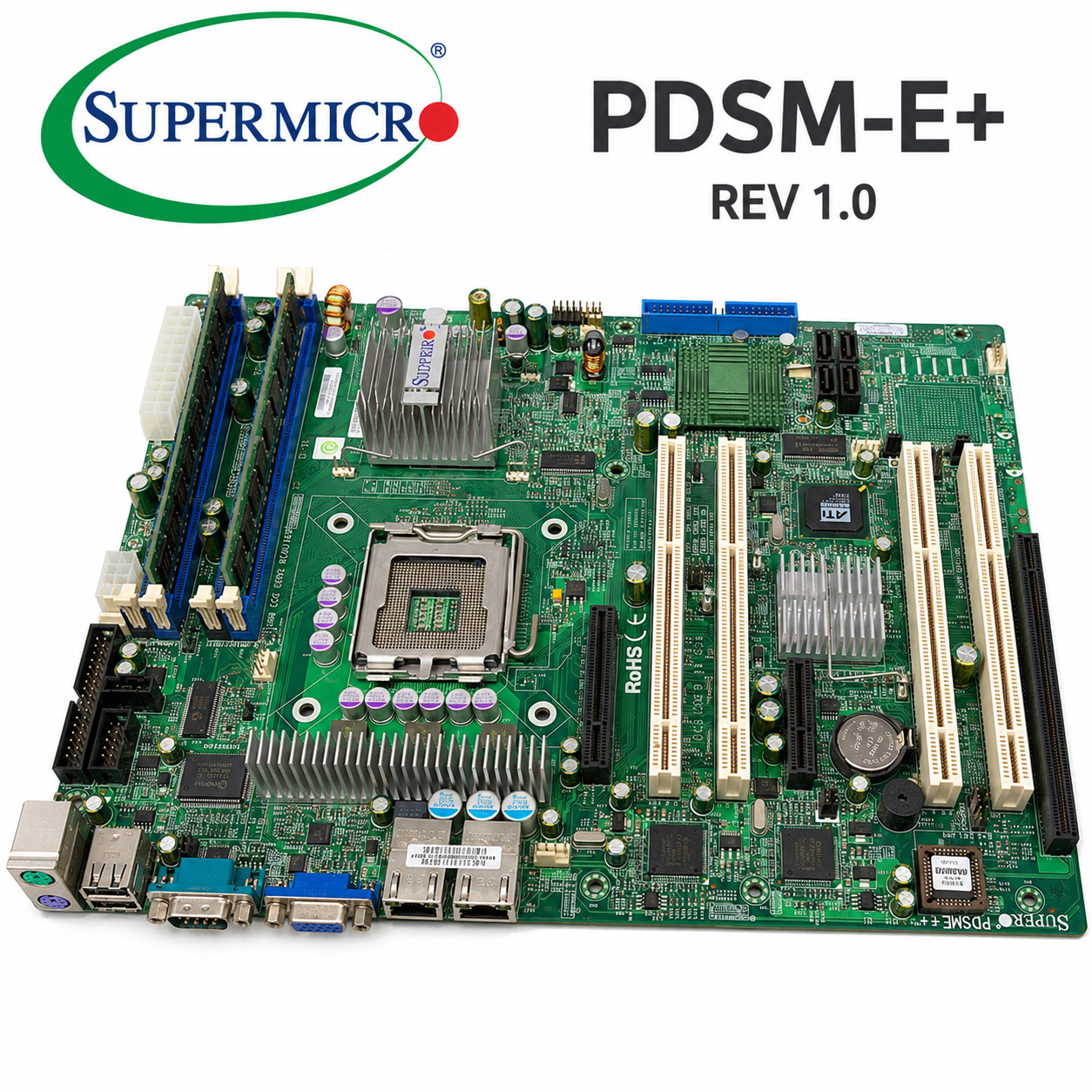

Supermicro PDSME+ / PDSMI+ Server Motherboard
Intel LGA775 Socket • DDR2 ECC • Dual LAN Intel • PCI-X • SATA RAID
Product Condition
Main Features BrandSupermicro ModelPDSME+ / PDSMI+ Visible revisionREV 1.01 FormatATX server Socket CPUIntel LGA775 / Socket T ChipsetIntel 3010 + ICH7R Memory4 x DDR2 ECC / Non-ECC depending on configuration Installed RAM2 x 1GB Kingston KVR533D2E4/1G ECC DDR2 Network2 x Gigabit LAN Intel Built-in videoATI ES1000 StorageSATA + IDE RAIDSATA RAID according to Intel ICH7R controller Rear plateI/O Shield included Detailed technical description
Compatible CPUs
Intel XeonXeon 3000 Series, Xeon 3040, 3050, 3060, X3210, X3220, X3230 according to BIOS Intel CoreCore 2 Duo, Core 2 Quad, Core 2 Extreme according to BIOS compatibility Intel PentiumPentium D, Pentium 4, Pentium Extreme Edition Second Generation Intel CeleronCeleron D by model and BIOS
Ports and connectors Rear connectorPS/2, COM Series, VGA, USB, 2 x RJ45 Gigabit Internal storageSATA ports + IDE connector ExtensionPCI-Express, PCI-X, PCI Classic Power supply24-pin ATX connectors + auxiliary CPU power supply VentilationServer fan connectors present on the board Highlights
Supermicro Professional Server Motherboard - Intel LGA775 socket compatible Xeon / Core 2 according to BIOS
- DDR2 ECC memory support
- Integrated Intel Gigabit Dual Network
- ATI ES1000 Integrated Video Server
- PCI-X ports for vintage business cards
- SATA ports with RAID functions depending on configuration
- Backplate I/O Shield included
- 2 Kingston DDR2 ECC bars included
- Ideal retro server, NAS, restoration, computer lab or collection
Package Contents
1 x Supermicro PDSME+ / PDSMI+ Motherboard - 2 x Kingston DDR2 ECC 1GB Bars
- 1 x Rear I/O Shield Plate
